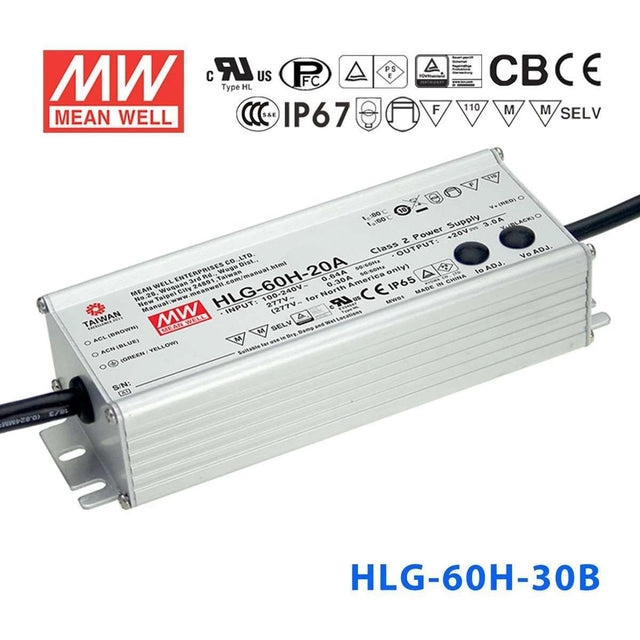

Mean Well HLG-60H-30B Power Supply 60W 30V - Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-30B to power 30V LED strip lighting outdoors?
Yes. The HLG-60H-30B outputs 30V at up to 2A (60W) and carries an IP67 waterproof rating, meaning it can withstand temporary immersion and heavy rain. Its aluminium casing and -40 to +80 degree Celsius operating range make it reliable for year-round outdoor installations.
Is the HLG-60H-30B suitable for dimmable 30V LED landscape lighting?
Yes. The HLG-60H-30B includes a 1-10V/PWM dimming input, so you can pair with a compatible dimmer to control brightness for garden path lights, bollards, or other 30V landscape fixtures. Its IP67 waterproof rating supports in-ground or fully exposed mounting.
Can I use the HLG-60H-30B to drive 30V LED modules in an outdoor sign?
Yes, as long as the total load does not exceed 60W. The HLG-60H-30B operates in constant-current mode with a CC voltage range of 18-30V, accommodating modules that may operate at slightly lower voltages within that window. The IP67 rating handles rain and moisture typical of exterior signage.
How many meters of 30V LED strip can the HLG-60H-30B drive?
It depends on your strip's power consumption per meter. At 60W output, a strip rated at 12W/m would allow 5 meters (60W / 12W per meter = 5m). A lower-power strip at 6W/m could reach 10 meters. Always check your strip's rated power per meter and keep the total within 60W.
Can the HLG-60H-30B be installed in a location subject to temporary flooding?
Its IP67 rating means it can withstand temporary immersion in water up to 1 meter deep for 30 minutes. This makes it suitable for low-lying enclosures, underground vaults, or areas where standing water may briefly accumulate. The -40 to +80 degree Celsius range also covers freezing conditions.
