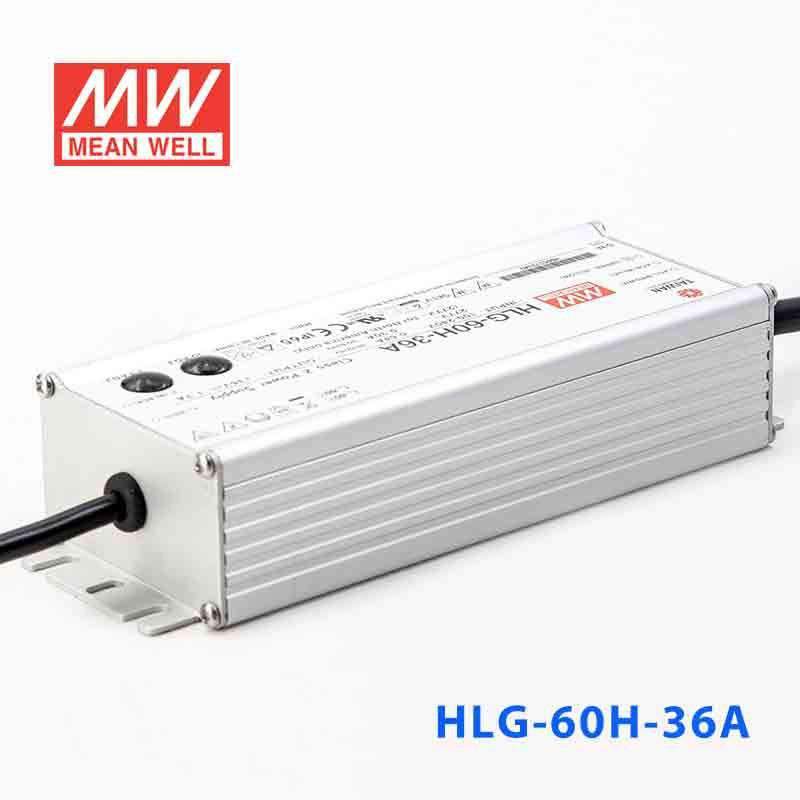

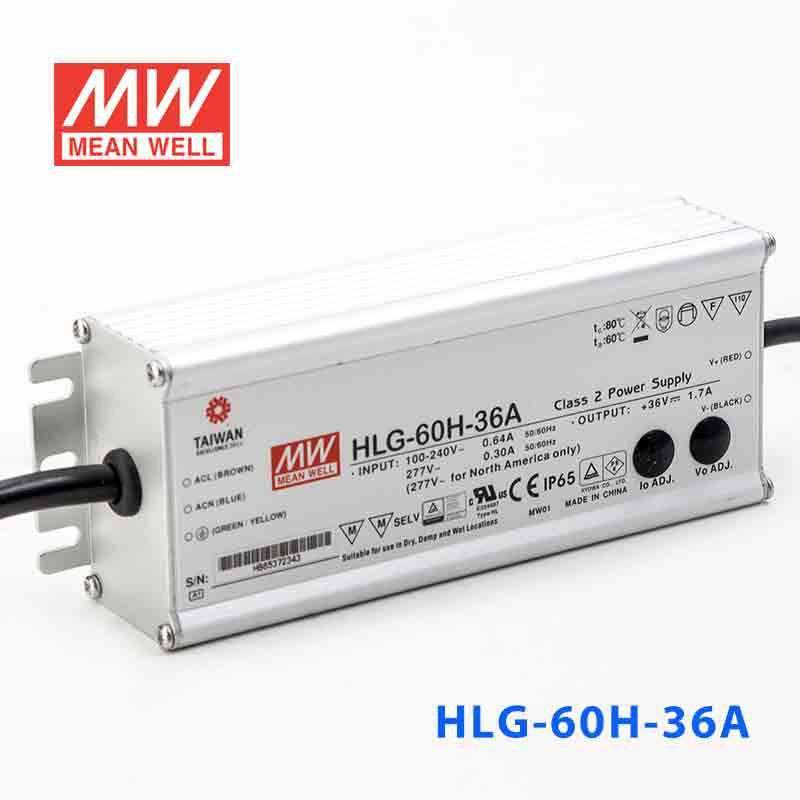

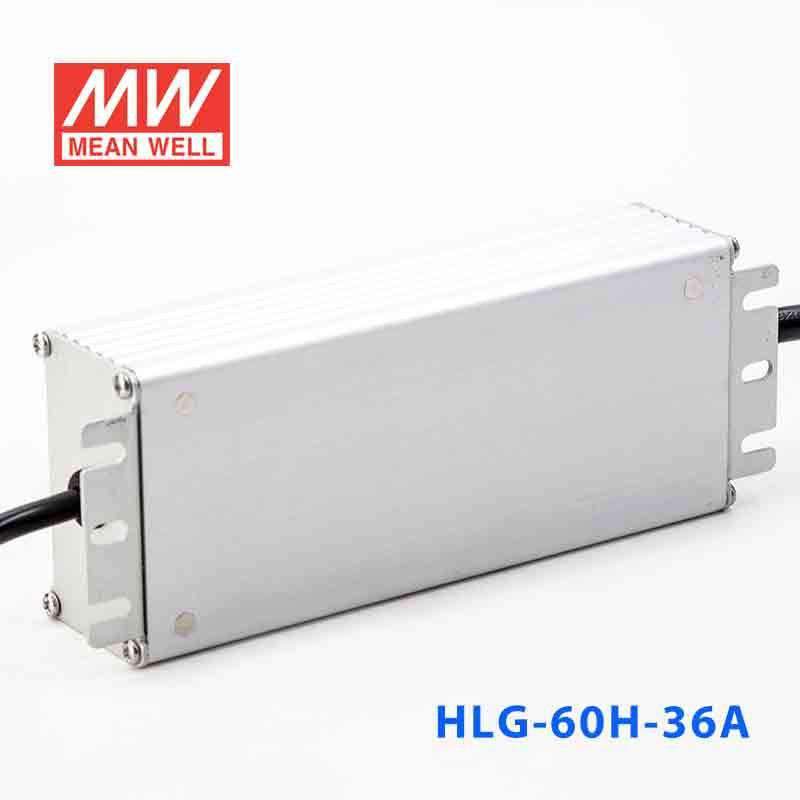

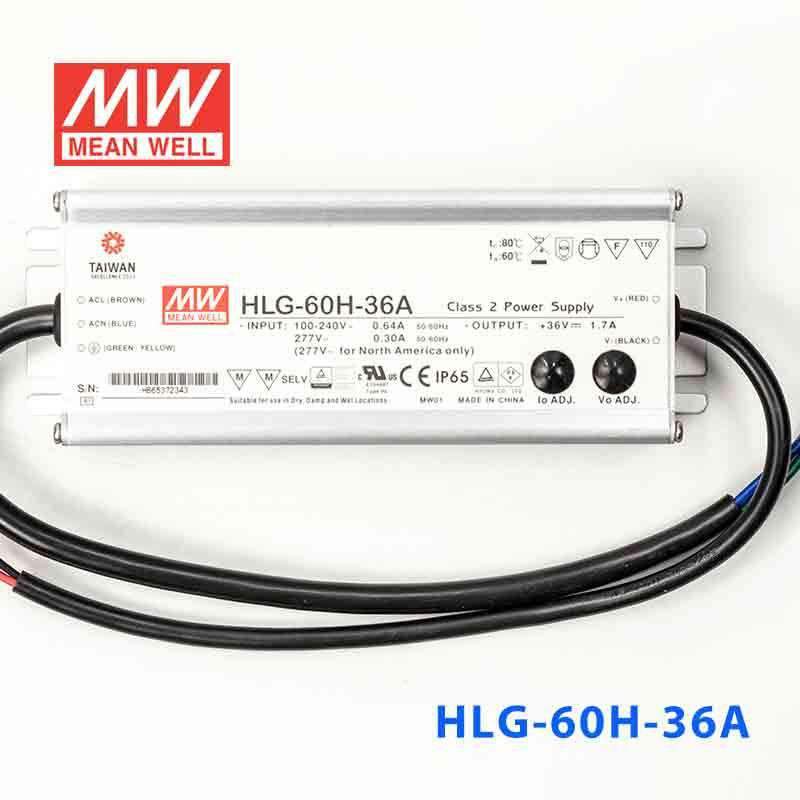

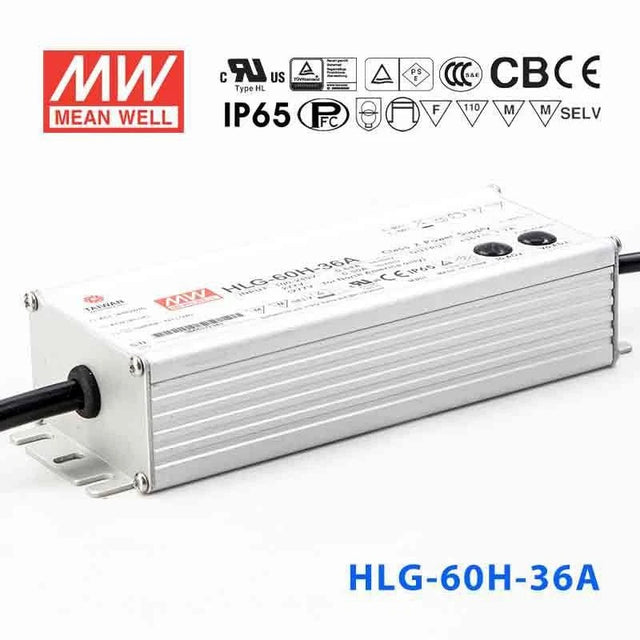

Mean Well HLG-60H-36A Power Supply 60W 36V - Adjustable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage36 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-36A for 36V LED display lighting where I need to fine-tune brightness?
Yes. The HLG-60H-36A outputs 36V at up to 1.7A (60W) and features potentiometer-based output voltage and current adjustment. This lets you dial in the precise operating point for museum display cases, gallery lighting, or retail showcases running on 36V LED fixtures.
Is the HLG-60H-36A suitable for powering adjustable 36V LED strip in a cove lighting setup?
Yes. Its 60W capacity at 36V handles typical cove lighting runs, and the built-in voltage/current adjustment lets you optimize output for your specific strip without adding external resistors or controllers. This is especially useful when matching LED strips with slightly different forward voltage requirements.
Can the HLG-60H-36A power 36V LED modules in a small illuminated channel-letter sign?
Yes, as long as the modules draw no more than 60W total. The HLG-60H-36A operates in constant-current mode with a CC range of 21-36V. The output adjustment feature lets you set the exact voltage and current the sign modules need for optimal brightness and longevity.
How many meters of 36V LED strip can the HLG-60H-36A handle?
Divide 60W by your strip's rated power per meter. For a 36V strip rated at 8W/m, you could run up to 7.5 meters (60W / 8W per meter = 7.5m). For a 15W/m strip, that drops to 4 meters. Always check your strip's rated power per meter and keep total draw at or below 60W.
Can the HLG-60H-36A be used in an outdoor covered patio installation?
Yes. Its IP65 rating protects against low-pressure water jets and dust, making it suitable for sheltered outdoor locations like covered patios, porches, or carports. For fully exposed outdoor installations with direct rain or standing water, consider the IP67-rated HLG-60H-36 or HLG-60H-36B.
