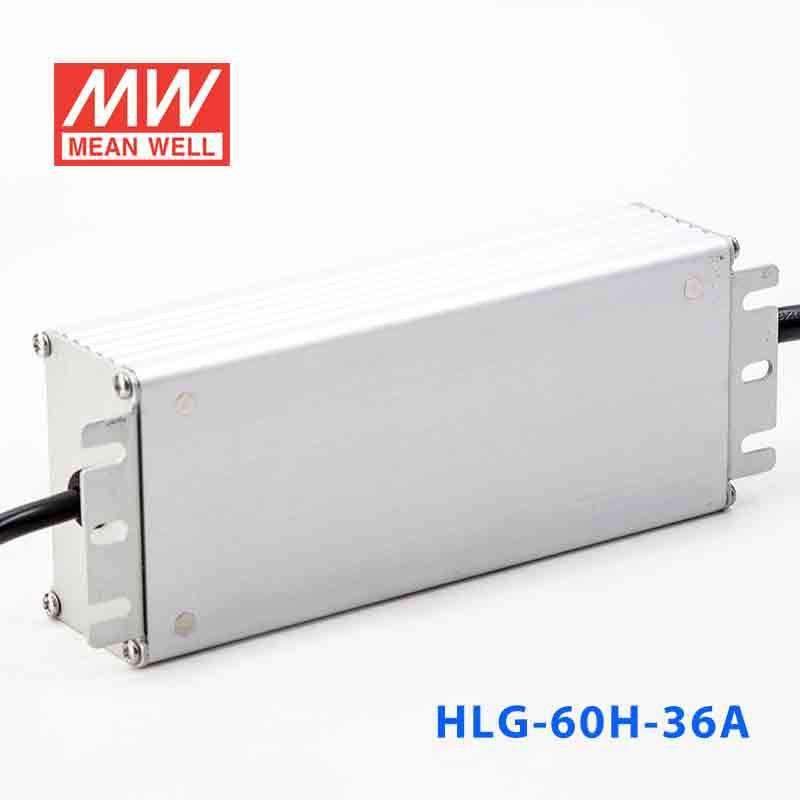

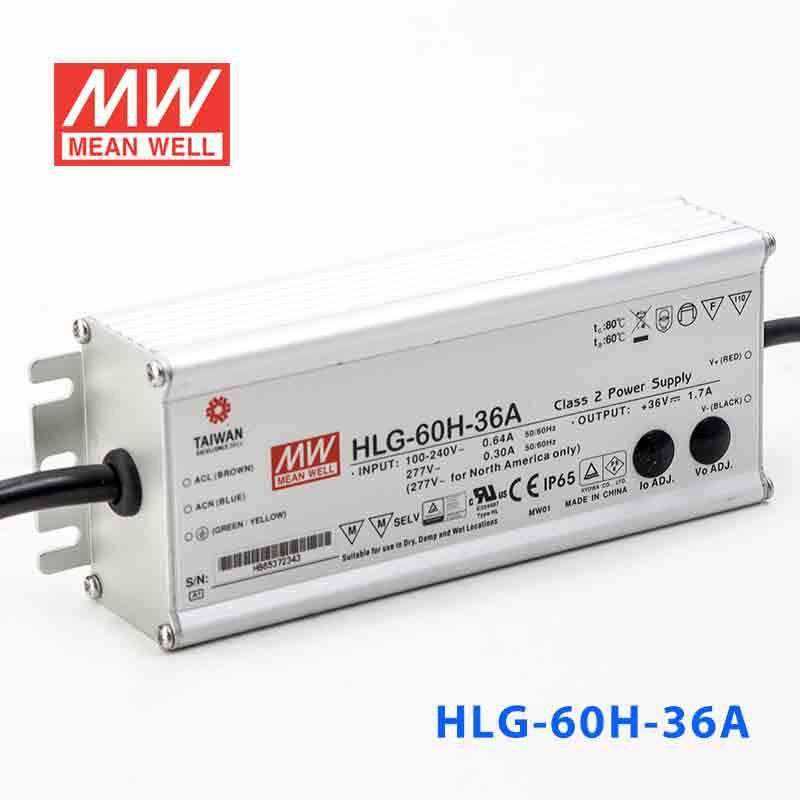

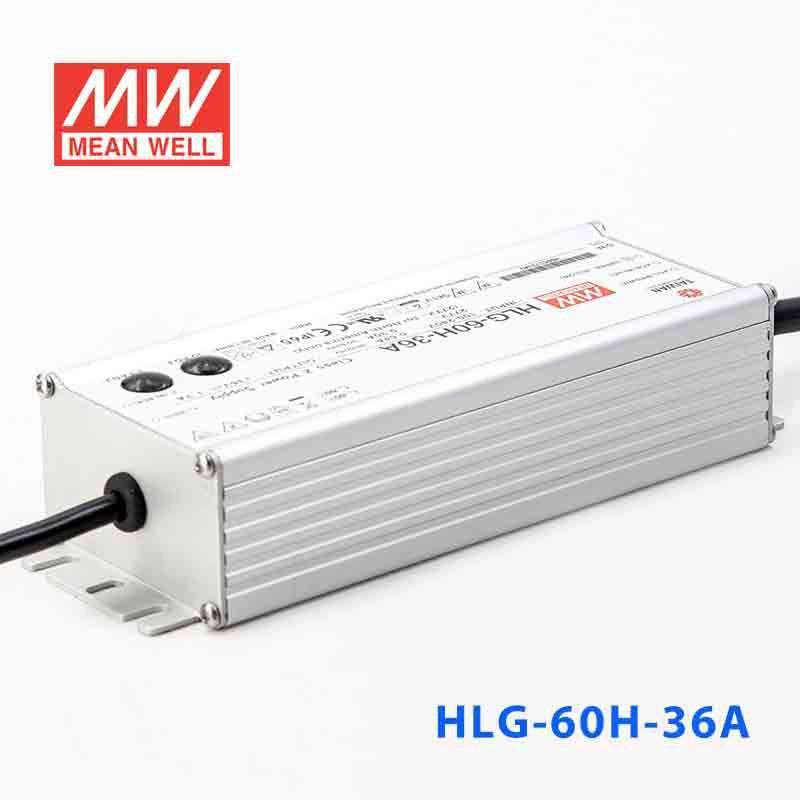

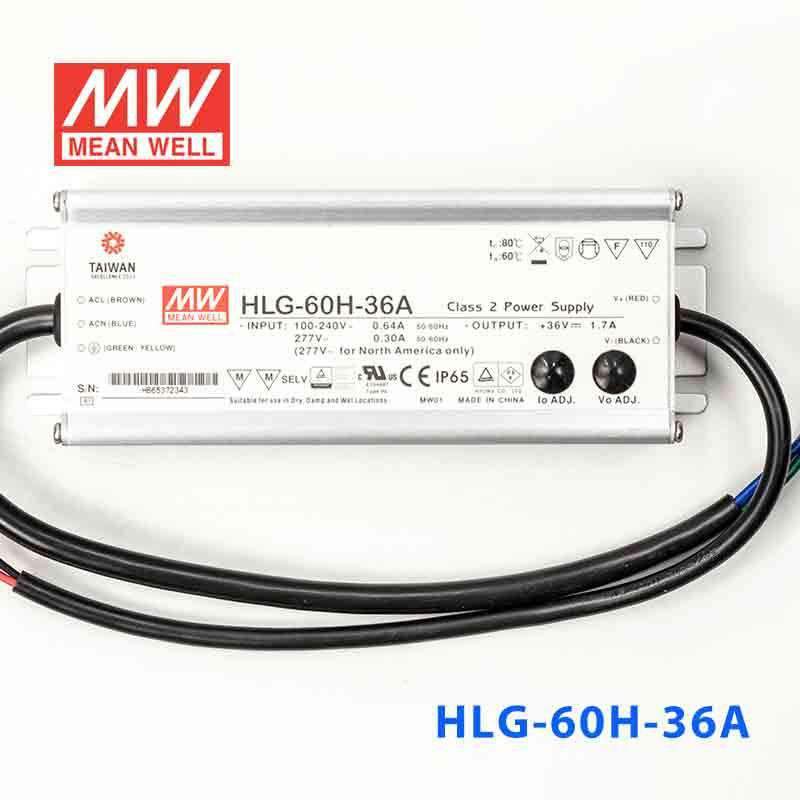

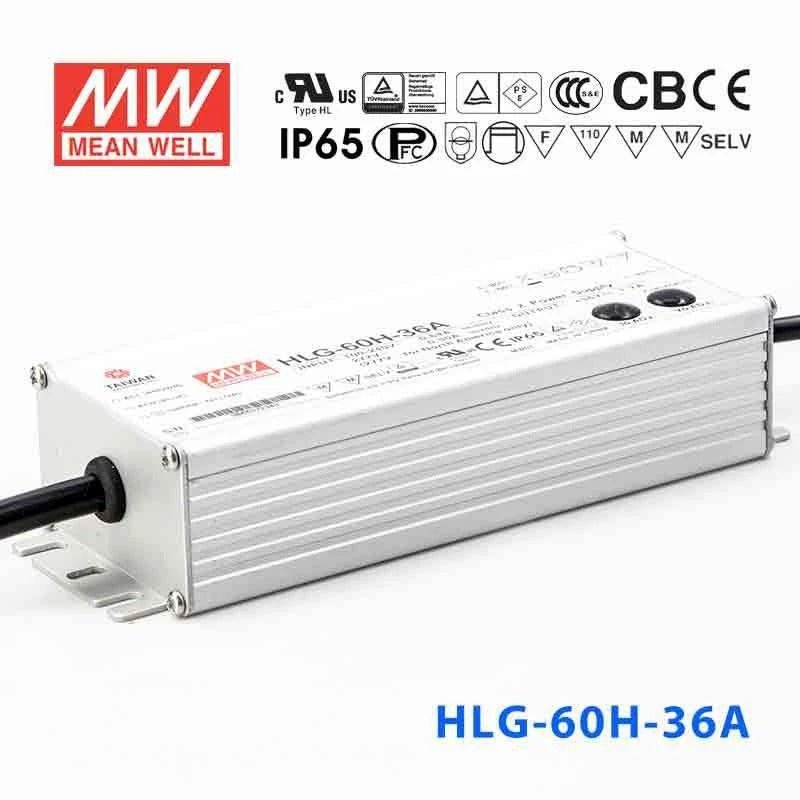

Mean Well HLG-60H-36A Power Supply 60W 36V - Adjustable 1.7A
5.0 (4 reviews)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-36A Power Supply 60W 36V - Adjustable 1.7A
Overview
HLG-60H-36A is the 36V output model of this series: rated current 1.7A, rated power 61.2W, typical efficiency 90%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).
HLG-60H series is a 60W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-60H operates from 90～305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- Class 2 power unit
- IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer
- Typical lifetime > 62000 hours
- 7 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 36V
- CONSTANT CURRENT REGIONNote.4
- 21.6 ~ 36V
- RATED CURRENT
- 1.7A
- RATED POWER
- 61.2W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 33 ~ 40V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 1 ~ 1.7A
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 500ms,80ms/115VAC 500ms,80ms/230VAC
- HOLD UP TIME (Typ.)
- 16ms / 115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
- EFFICIENCY (Typ.)
- 90%
- AC CURRENT (Typ.)
- 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENTNote.4
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 41 ~ 49V Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase= +80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750(type"HL"), CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13, IP65 approved ; J61347-1, J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.8
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),KS C 9815, KS C 9547, EAC TP TC 020
OTHERS
- MTBF
- 3396.9K hrs min. Telcordia SR-332 (Bellcore) ;345.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 171*61.5*36.8mm (L*W*H)
- PACKING
- 0.73Kg; 20pcs/15.6Kg/0.9CUFT
MODEL ENCODING
- Blank
- Io and Vo fixed; IP67
- A (this model)
- Io and Vo adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
- AB
- Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
- D
- Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes14
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 13. For A/AB type need to consider build in using to comply with Type HL application.
- 14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the HLG-60H-36A for 36V LED display lighting where I need to fine-tune brightness?
Yes. The HLG-60H-36A outputs 36V at up to 1.7A (61.2W) and features potentiometer-based output voltage and current adjustment. This lets you dial in the precise operating point for museum display cases, gallery lighting, or retail showcases running on 36V LED fixtures.
Is the HLG-60H-36A suitable for powering adjustable 36V LED strip in a cove lighting setup?
Yes. Its 61.2W capacity at 36V handles typical cove lighting runs, and the built-in voltage/current adjustment lets you optimize output for your specific strip without adding external resistors or controllers. This is especially useful when matching LED strips with slightly different forward voltage requirements.
Can the HLG-60H-36A power 36V LED modules in a small illuminated channel-letter sign?
Yes, as long as the modules draw no more than 61.2W total. The HLG-60H-36A operates in constant-current mode with a CC range of 21.6-36V. The output adjustment feature lets you set the exact voltage and current the sign modules need for optimal brightness and longevity.
How many meters of 36V LED strip can the HLG-60H-36A handle?
Divide the 61.2W rating by your strip's rated power per meter. For a 36V strip rated at 8W/m, you could run about 7.6 meters (61.2W / 8W per meter). For a 15W/m strip, that drops to about 4 meters. Always check your strip's rated power per meter and keep total draw at or below 61.2W.
Can the HLG-60H-36A be used in an outdoor covered patio installation?
Yes. Its IP65 rating protects against low-pressure water jets and dust, making it suitable for sheltered outdoor locations like covered patios, porches, or carports. For fully exposed outdoor installations with direct rain, consider the IP67-rated HLG-60H-36 or HLG-60H-36B.
