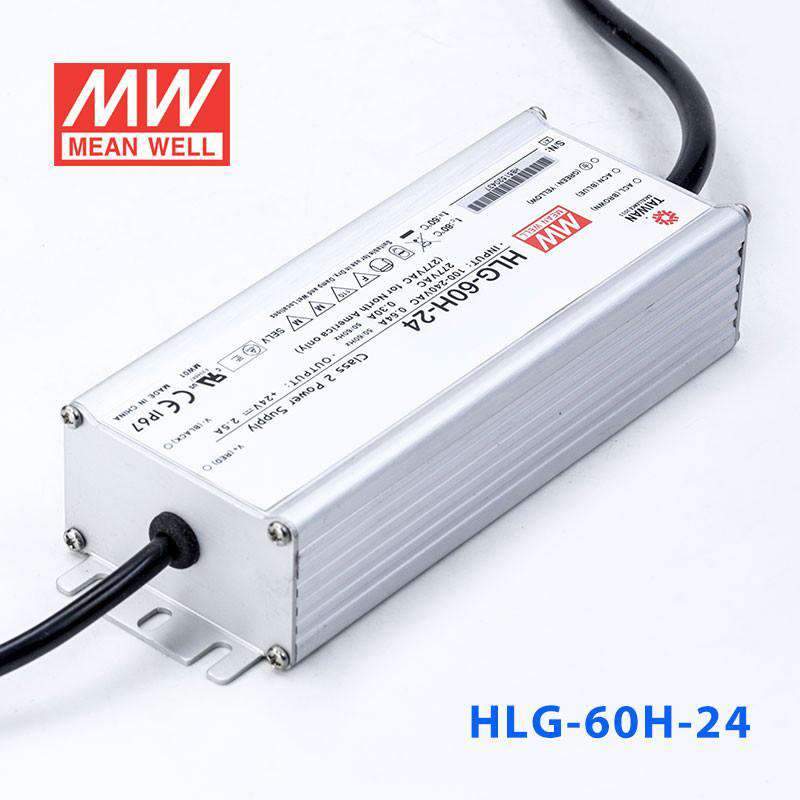

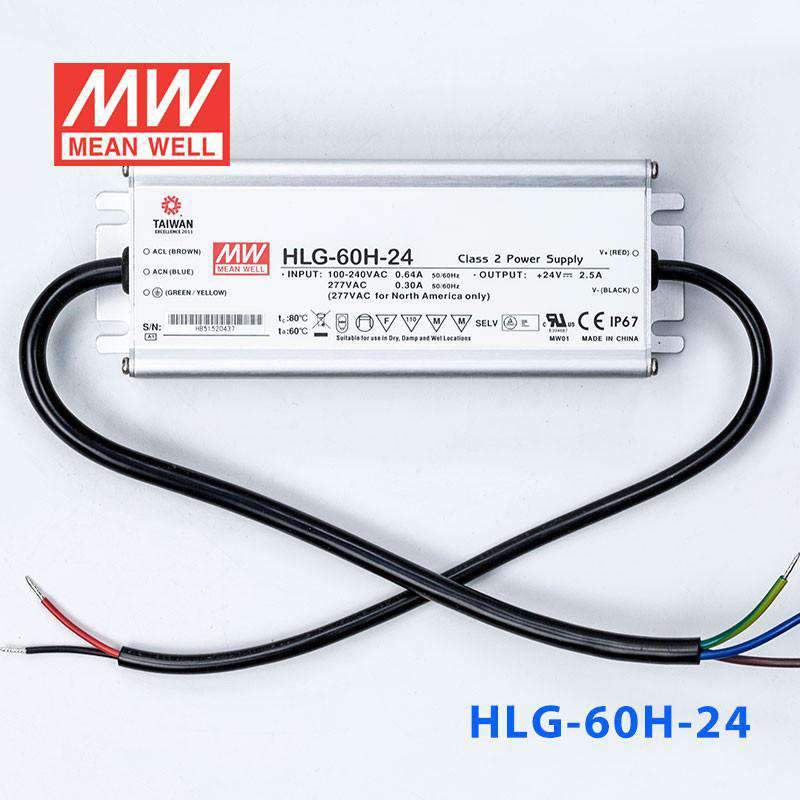

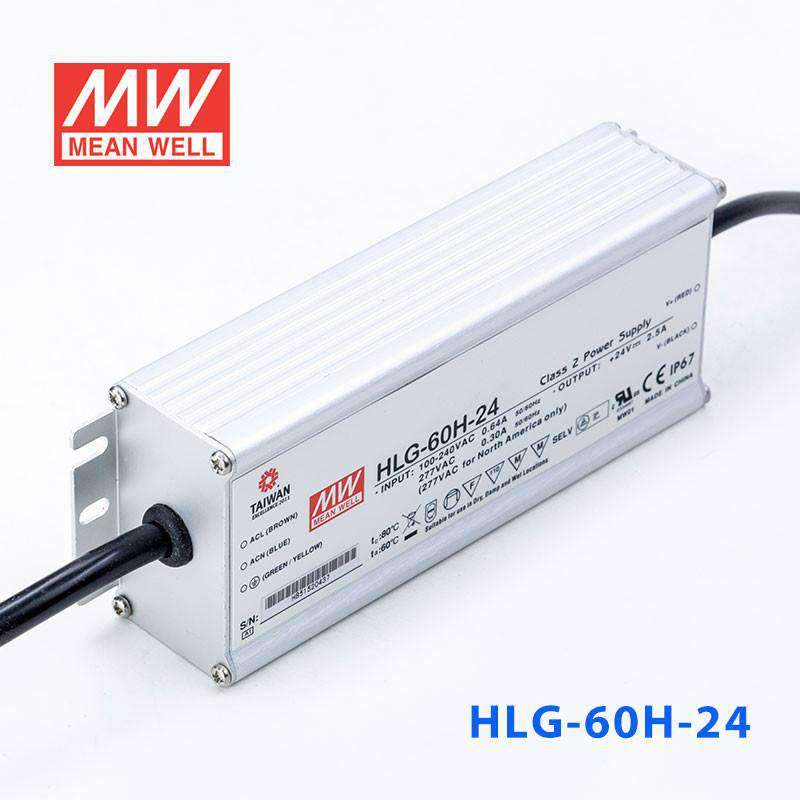

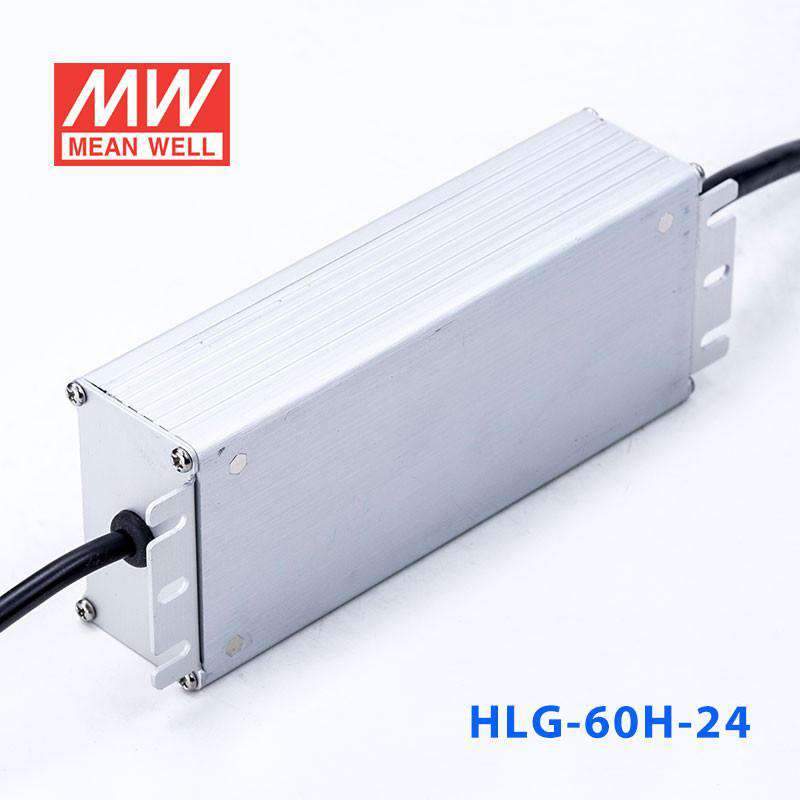

Mean Well HLG-60H-24 Power Supply

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 90.5%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Class 2 power unit

Output current adjustable through output cable or internal potentiometer

Cooling by free air convection

Suitable for dry, damp and wet location

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details.

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 55A at 230VAC
DC adjustment range	±10% rated output voltage (A-Type only)
Current adjustment range	60%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	109%~145% rated output voltage
Setup, rise, hold up time	1000ms, 80ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	171x 61.5x 36.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

60 Watt
Output Voltage

24 Volt
Rated Current

2.5 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

6.73 in
Width

2.42 in
Height

1.45 in
Weight

1.61 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-60H-24 to power 24V LED strip lighting outdoors?

Yes. The HLG-60H-24 outputs 24V at up to 2.5A and carries an IP67 waterproof rating, so it handles direct rain, dust, and temporary submersion. It is well suited for outdoor 24V LED strip installations on facades, fences, or garden features.

Is the HLG-60H-24 suitable for powering 24V LED channel letter signs?

Yes. With 60W at 24V, the HLG-60H-24 can drive small to mid-size 24V channel letter or lightbox signage. Its IP67 rating and wide 90-305VAC input make it reliable for outdoor sign cabinets exposed to weather and varying mains voltages worldwide.

Can I run 24V LED under-cabinet or shelf lighting from the HLG-60H-24?

Yes, provided the total LED load stays within 60W. The HLG-60H-24 is a constant-current driver with a CC voltage range of 14-24V, so it can accommodate 24V LED strips or modules used in kitchen under-cabinet, display case, or retail shelf lighting applications.

How many meters of 24V LED strip can the HLG-60H-24 power?

That depends on the strip's rated power per meter. The HLG-60H-24 supplies up to 60W at 24V. For example, if your strip draws 14.4W/m, you could run about 4.1 meters (60W / 14.4W per meter). Always check your strip's rated power per meter and keep total load at or below 60W.

Can the HLG-60H-24 handle freezing winter temperatures in an outdoor installation?

Yes. Its operating temperature range is -40°C to +80°C, so it can run reliably in extreme cold climates. Combined with the IP67 waterproof rating and aluminium casing, it is designed for year-round outdoor use in harsh environments.

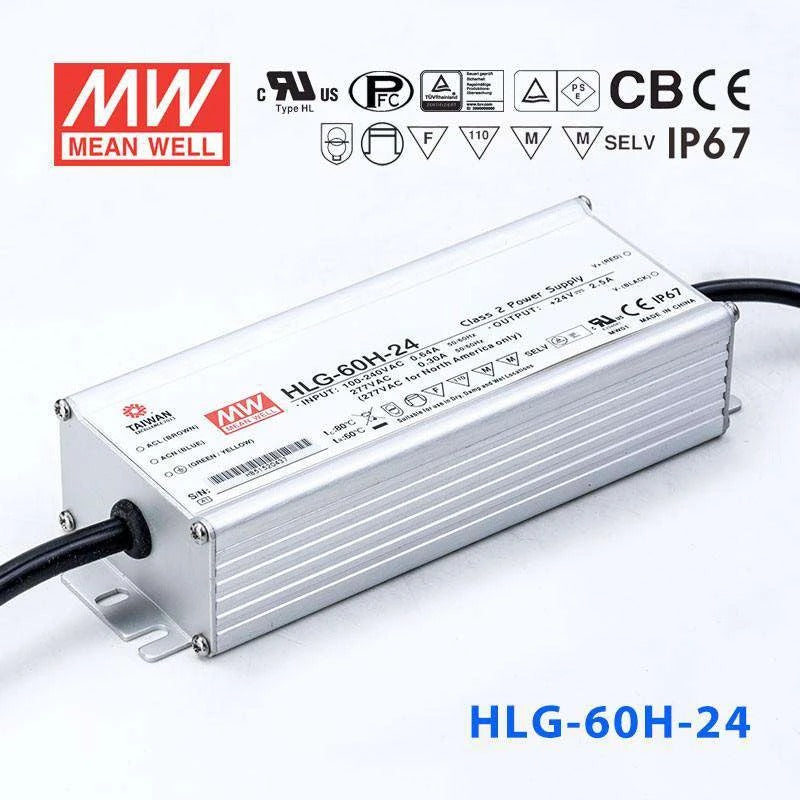

Mean Well HLG-60H-24 Power Supply 60W 24V
