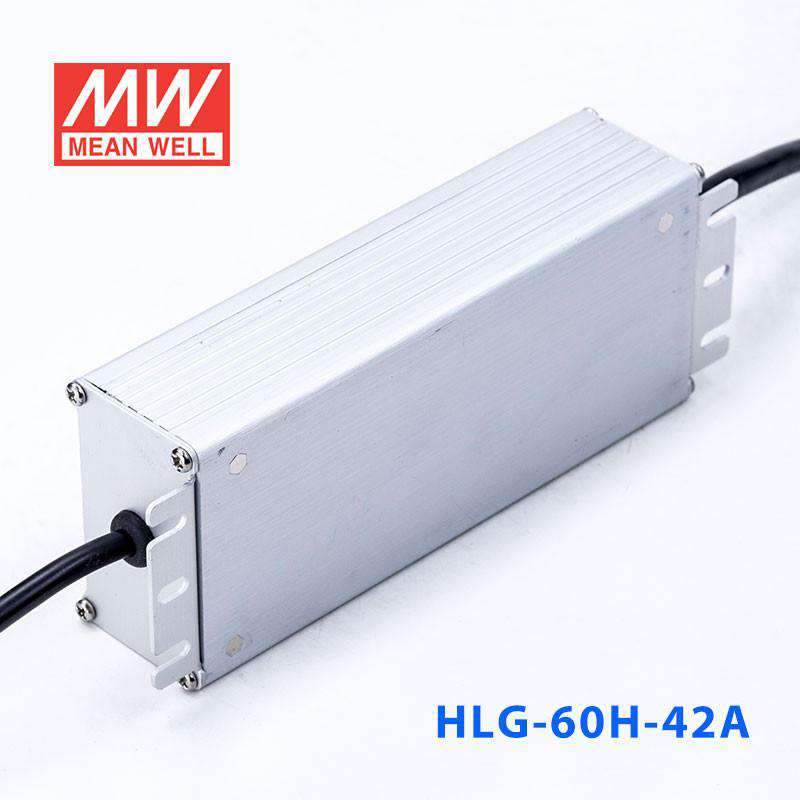

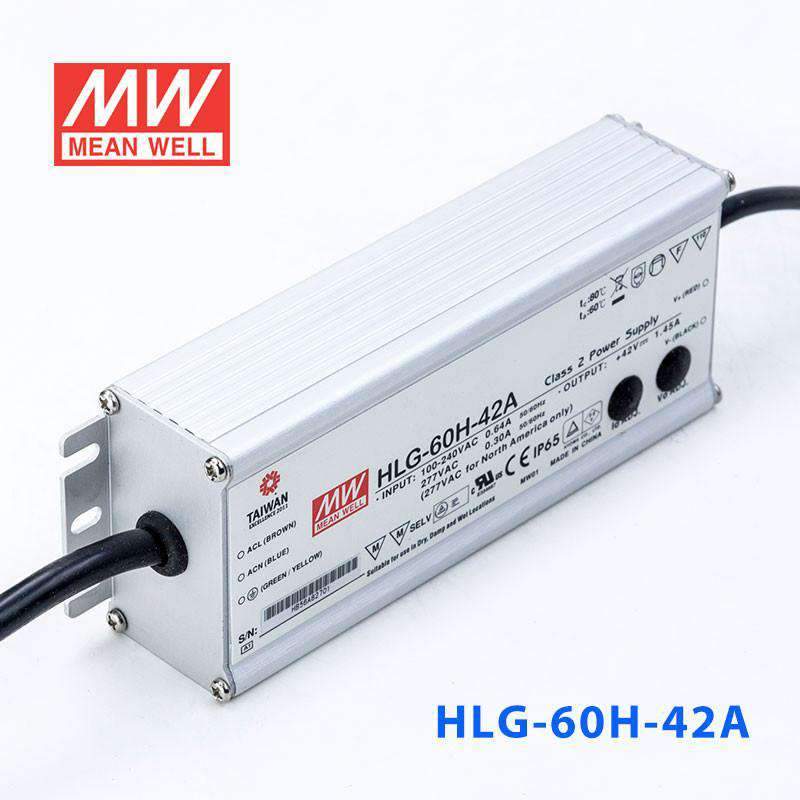

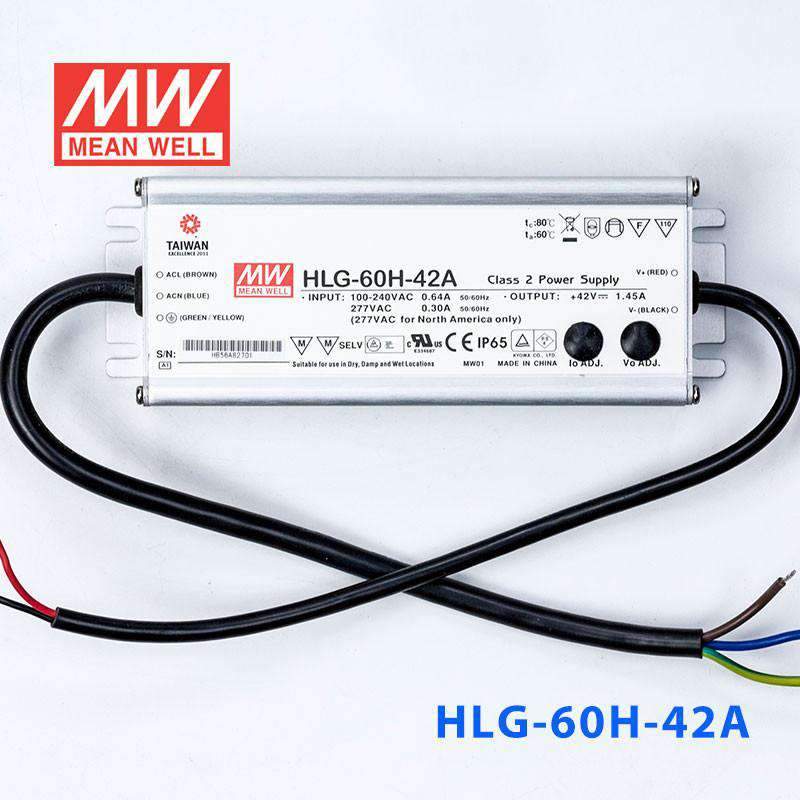

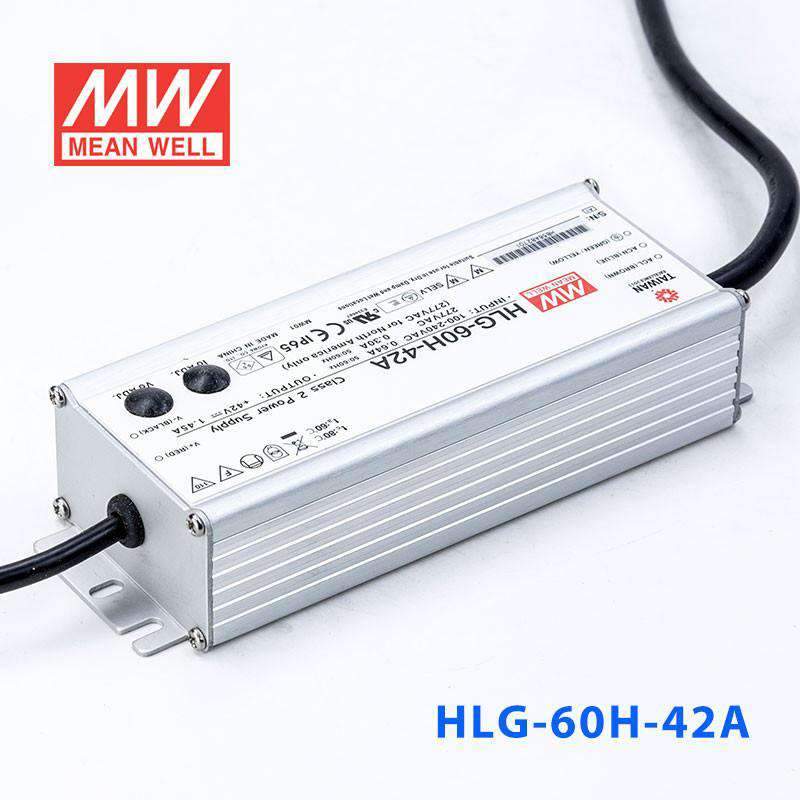

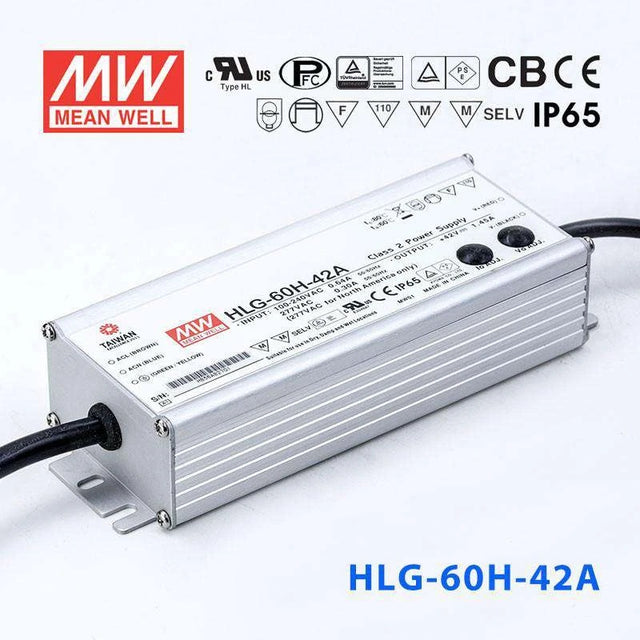

Mean Well HLG-60H-42A Power Supply 60W 42V - Adjustable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage42 Volt
-
Rated Current1.45 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-42A to drive 42V LED fixtures where I need to adjust the output?
Yes. The HLG-60H-42A delivers 60W at 42V with built-in potentiometers for voltage and current adjustment. This allows you to dial in the exact operating point your 42V LED fixture requires, which is useful when matching drivers to LED arrays with slightly different forward voltage characteristics.
Is the HLG-60H-42A suitable for powering adjustable 42V LED strip in an indoor commercial space?
Yes. At 60W and 42V, it can handle typical commercial LED strip runs for display lighting, shelf illumination, or accent coves. The adjustable output lets you optimize brightness and current draw without adding external components. Its IP65 rating also provides dust and splash protection if needed.
Can the HLG-60H-42A power 42V LED modules in a custom light fixture prototype?
Yes. The adjustable output is especially helpful during prototyping, as you can vary the voltage within the 25-42V CC range and current up to 1.45A to find the optimal drive point for your LED array. At 60W, it suits single-fixture prototypes or small arrays.
How many meters of 42V LED strip can the HLG-60H-42A handle?
Divide 60W by your strip's rated power per meter. For a 42V strip at 8W/m, you could run up to 7.5 meters (60W / 8W per meter = 7.5m). For a strip at 15W/m, that drops to 4 meters. Always check your strip's rated power per meter and keep total consumption at or below 60W.
Can the HLG-60H-42A be installed under a covered awning or overhang outdoors?
Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, making covered outdoor locations like awnings, canopies, or equipment shelters suitable. For fully exposed installations with direct rain or potential submersion, consider the IP67-rated HLG-60H-42 instead.
