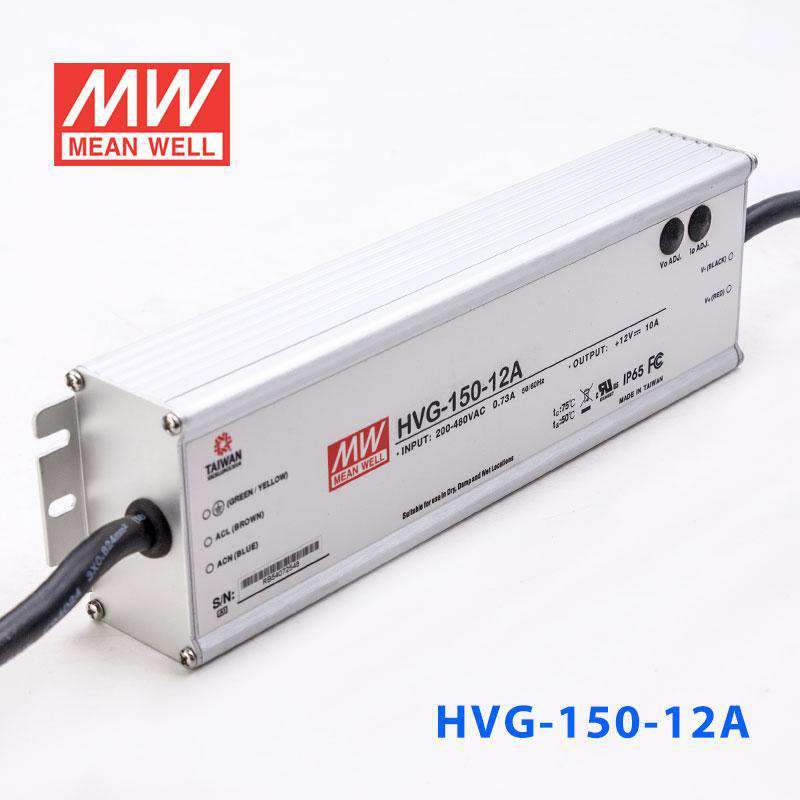

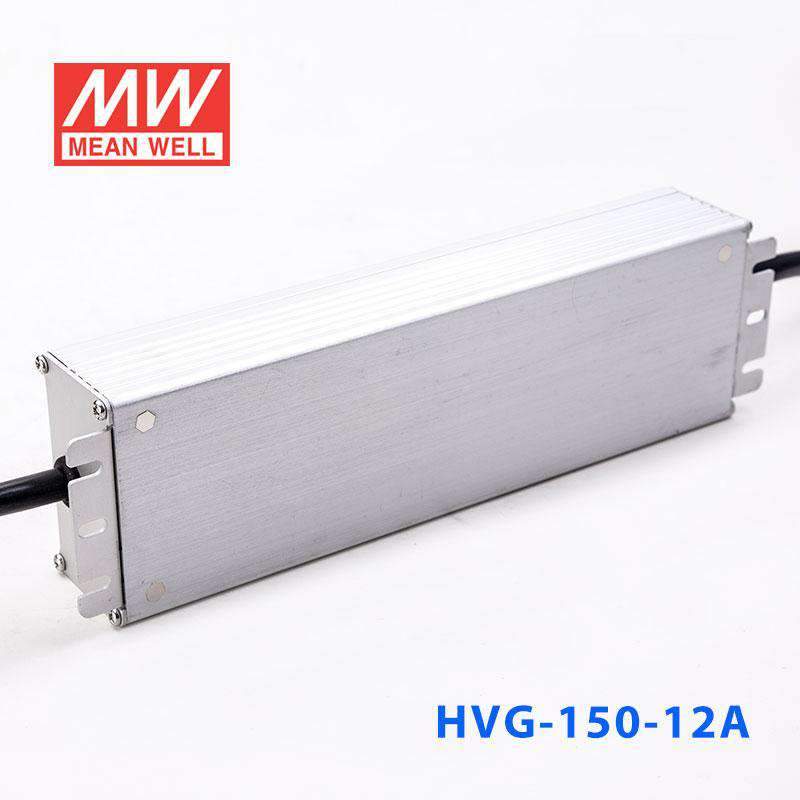

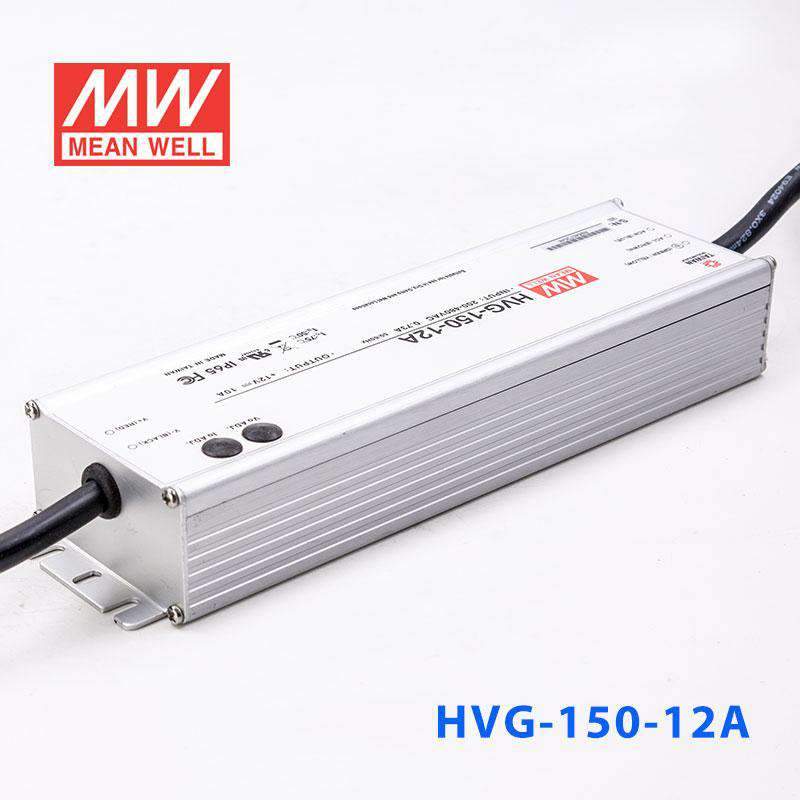

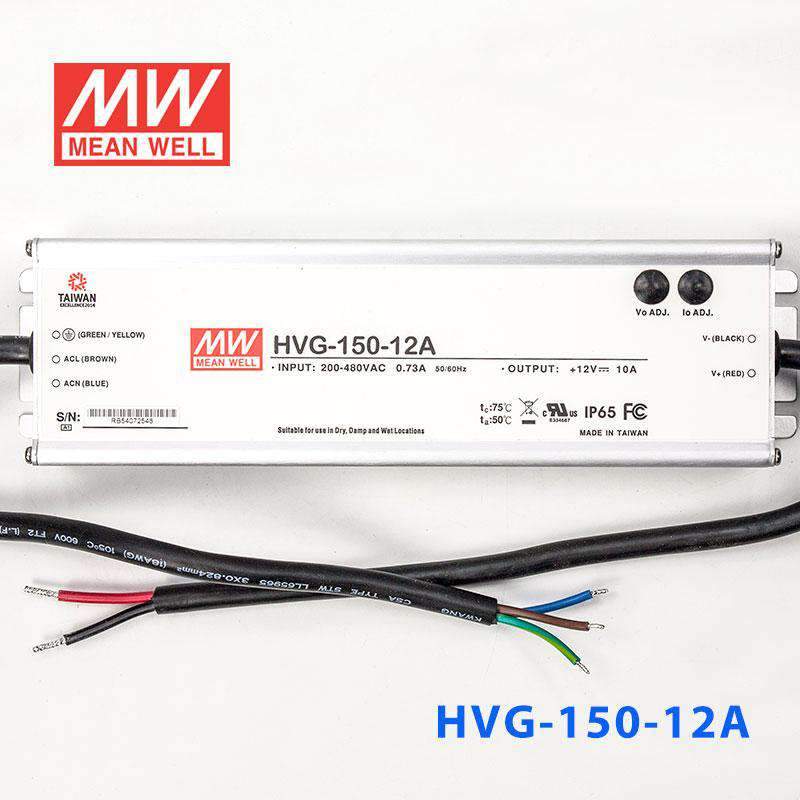

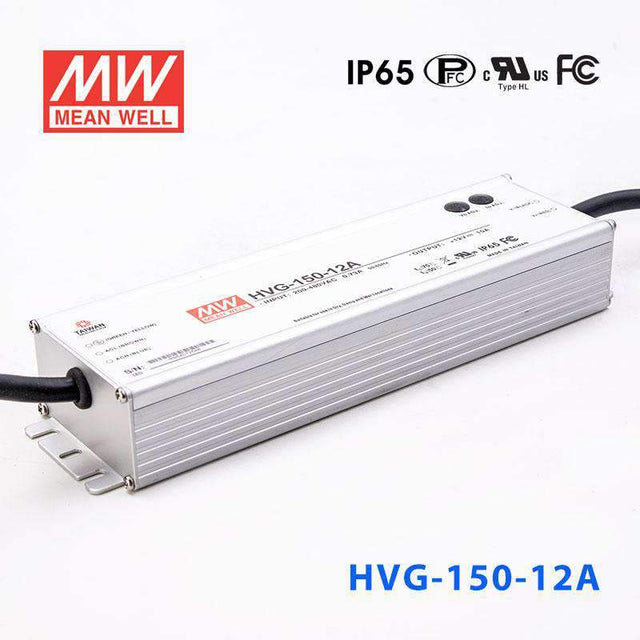

Mean Well HVG-150-12A Power Supply 120W 12V - Adjustable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating120 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-12A for 12V LED strip lighting?
It can be used with a 12V LED lighting load that operates within the 7-12V CC range and stays within 120W and 10A. That makes it suitable for larger 12V lighting runs where the load matches the driver's 12V output range.
Is this power supply suitable for 12V sign box or cabinet lighting?
Yes, if the sign lighting load is designed around 12V operation within the 7-12V constant-current range and does not exceed 120W or 10A. The IP65 water-resistant housing also makes it reasonable for sign applications in damp or outdoor locations.
Can the HVG-150-12A be used for outdoor landscape or pathway lighting?
It can work for 12V outdoor lighting systems when the load fits the 7-12V range and stays within 120W at 10A. Its IP65 water-resistant rating and -40°C to +75°C operating temperature range support outdoor use where a sealed driver is preferred.
How much 12V LED strip can this driver support?
Use the sizing formula: 120W divided by your strip's rated watts per meter equals the maximum theoretical strip length. The load must also stay within 12V output and 10A maximum current. Check your strip rated power per meter before final sizing.
Can this driver be placed in wet or weather-exposed areas?
The IP65 water-resistant enclosure is intended for applications where the driver may be exposed to dust and water-resistant conditions. It is better suited to outdoor or damp locations than an unsealed power supply, and its -40°C to +75°C operating range helps in cold and hot environments.
How does the HVG-150-12A compare with the other 12V HVG-150 models?
The HVG-150-12A, HVG-150-12AB, and HVG-150-12B are all rated at 120W, 12V, and 10A. The HVG-150-12D is also listed at 120W, but the sibling list does not provide a current figure for that model. This unit sits in the main 12V, 120W, 10A group for the HVG-150 family.
