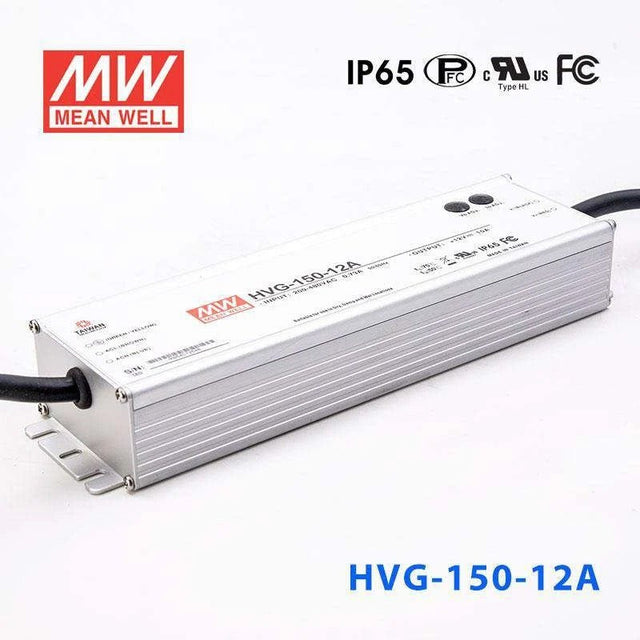

Mean Well HVG-150-12AB Power Supply 120W 12V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-150-12AB Power Supply 120W 12V - Adjustable and Dimmable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating120 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-12AB for dimmable 12V strip lighting?
Yes, if the strip lighting load is designed for 12V operation within the 7-12V constant-current range and stays under 120W and 10A. This version is a fit for 12V lighting projects where adjustable output and dimming are both part of the requirement.
Is this a good choice for 12V retail display or cove lighting?
It can be, provided the lighting load matches 12V operation within the 7-12V CC range and does not exceed 120W. That output level is useful for longer or denser 12V lighting layouts in display, cove, or accent applications.
Can the HVG-150-12AB power outdoor 12V signage lighting?
Yes, if the sign lighting is a 12V load within 7-12V and draws no more than 10A, with total load not exceeding 120W. Its IP65 water-resistant construction supports outdoor or damp-location sign projects that need a sealed driver.
What LED strip length can I estimate with this 120W 12V driver?
Calculate the maximum run by dividing 120W by the strip's watts-per-meter rating. The strip also needs to stay within the 12V output and 10A limit of the driver. Check your strip rated power per meter before deciding the final length.
Is the HVG-150-12AB intended for outdoor or damp environments?
Its IP65 water-resistant rating makes it appropriate for applications where the driver may be used in outdoor or damp conditions. The operating temperature range of -40°C to +75°C also supports use across a wide range of weather conditions.
How does the HVG-150-12AB differ from the other 12V options in the HVG-150 line?
The HVG-150-12A, HVG-150-12AB, and HVG-150-12B all share the same electrical rating of 120W, 12V, and 10A. The HVG-150-12D is also listed at 120W, but the sibling data provided does not include a current value for that model. So this model matches the main 12V, 120W platform in the HVG-150 family.
