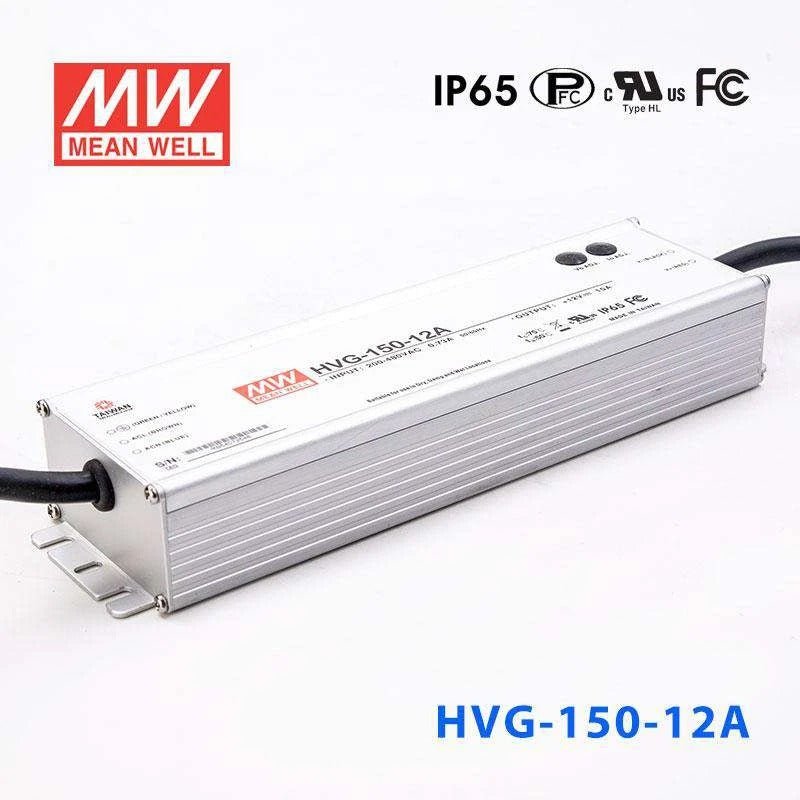

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HVG-150-12AB Power Supply 120W 12V - Adjustable and Dimmable 10A

Name: Mean Well HVG-150-12AB Power Supply 120W 12V - Adjustable and Dimmable 10A
Brand: Mean Well
SKU: HVG-150-12AB
Price: 81.81 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVG-150-12AB

$81.81 USD

Shipping calculated at checkout.

Select model — 6 in this family

HVG-150-12AB

HVG-65-12A Adjustable In stock $52.76 USD

HVG-65-12B Dimmable Backorder $56.60 USD

HVG-65-12AB Adjustable and Dimmable Backorder $61.98 USD

HVG-150-12A Adjustable Low stock $77.67 USD

HVG-150-12B Dimmable Low stock $80.73 USD

HVG-150-12AB Adjustable and Dimmable Backorder $81.81 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVG-150-12AB is the 12V output model of this series: rated current 10A, rated power 120W, typical efficiency 87%. Type AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).

HVG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-150 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91.5%, with the fanless design, the series is able to operate from -40℃ through as high as +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifet ime>50000 hours
5 years warranty

Specifications

HVG-150-12ABSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.4: 7.2~12V
RATED CURRENT: 10A
RATED POWER: 120W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 10.8 ~ 13.5V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 6 ~ 10A
VOLTAGE TOLERANCE^Note.3: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 18ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 12V model]; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD) ” section)
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.) 347VAC: 0.45A
AC CURRENT (Typ.) 480VAC: 0.35A
INRUSH CURRENT (Typ.): COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14.4 ~ 16.8V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(-40 ~ +75℃ for 12V model, -40 ~ +80℃ for 15V model)(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃(+75℃ for 12V model, +80℃ for 15V model)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.7: UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧55% load,@ load≧60% only for 12V model ) ; EN61000-3-3, FCC Part 15 Subpart,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1796.5K hrs min. Telcordia SR-332(Bellcore) ; 158.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 245*68*38.8mm (L*W*H)
PACKING: 1.24Kg; 12pcs/15.9Kg/0.78CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-150-12AB Block Diagram — Block Diagram

HVG-150-12AB DIMMING OPERATION — DIMMING OPERATION

HVG-150-12AB OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

HVG-150-12AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-150-12AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-150-12AB Dimensions (mm) — Dimensions (mm)

HVG-150-12AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-150-12AB datasheetHVG-150-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates2

UL Certificate(HVG-150)(EN) PDF Download

FCC Certificate(HVG-150)(EN) PDF Download

Test reports1

Test Report(HVG-150-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-150-12AB for dimmable 12V strip lighting?

Yes, if the strip lighting load is designed for 12V operation within the 7.2~12V constant-current range and stays under 120W and 10A. This version is a fit for 12V lighting projects where adjustable output and dimming are both part of the requirement.

Is this a good choice for 12V retail display or cove lighting?

It can be, provided the lighting load matches 12V operation within the 7.2~12V CC range and does not exceed 120W. That output level is useful for longer or denser 12V lighting layouts in display, cove, or accent applications.

Can the HVG-150-12AB power outdoor 12V signage lighting?

Yes, if the sign lighting is a 12V load within 7.2~12V and draws no more than 10A, with total load not exceeding 120W. Its IP65 water-resistant construction supports outdoor or damp-location sign projects that need a sealed driver.

What LED strip length can I estimate with this 120W 12V driver?

Calculate the maximum run by dividing 120W by the strip's watts-per-meter rating. The strip also needs to stay within the 12V output and 10A limit of the driver. Check your strip rated power per meter before deciding the final length.

Is the HVG-150-12AB intended for outdoor or damp environments?

Its IP65 water-resistant rating makes it appropriate for applications where the driver may be used in outdoor or damp conditions. The operating temperature range of -40°C to +75°C also supports use across a wide range of weather conditions.

How does the HVG-150-12AB differ from the other 12V options in the HVG-150 line?

The HVG-150-12A, HVG-150-12AB, and HVG-150-12B all share the same electrical rating of 120W, 12V, and 10A. The HVG-150-12D is also listed at 120W, but the sibling data provided does not include a current value for that model. So this model matches the main 12V, 120W platform in the HVG-150 family.
