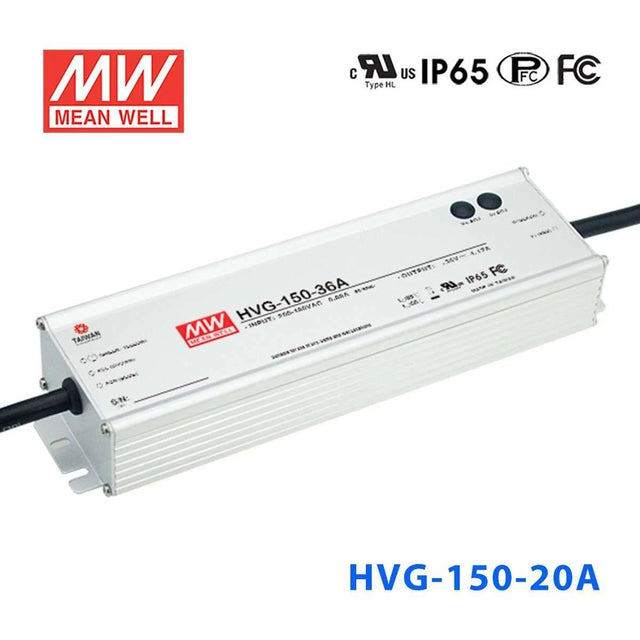

Mean Well HVG-150-20AB Power Supply 150W 20V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-150-20AB Power Supply 150W 20V - Adjustable and Dimmable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150 Watt
-
Output Voltage20 Volt
-
Rated Current7.5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-20AB for a dimmable 20V LED strip system?
Yes, this is the adjustable and dimmable 20V version in the 150W family. The connected 20V strip load must stay within 150W total, which is 7.5A at 20V, and you should check your strip rated power per meter.
Is the HVG-150-20AB suitable for 20V dimmable signage lighting?
It is suited to 20V signage lighting systems that need adjustable and dimmable output and do not exceed 150W. The driver is rated 20V with 7.5A output, so it should be paired only with 20V loads inside that limit.
Can this model be used for 20V retail or display lighting with brightness control?
Yes, for 20V retail or display lighting where dimmable operation is required and the total load stays within 150W. It also accepts 180-528VAC input and operates from -40°C to +85°C, which supports demanding commercial environments.
Can the HVG-150-20AB run 20V decorative lighting in outdoor conditions?
It can be used for 20V decorative lighting outdoors because the enclosure is IP65 water-resistant. The lighting load must still remain within the unit's 150W and 7.5A output ratings.
How do I calculate the maximum 20V LED strip length for this driver?
Start with the driver's 150W maximum output and divide by the strip's watts per meter to estimate length. At 20V, the available current is 7.5A, but you should check your strip rated power per meter before final sizing.
What is the difference between HVG-150-20A, HVG-150-20AB, HVG-150-20B, and HVG-150-20D?
HVG-150-20A, HVG-150-20AB, and HVG-150-20B are all listed at 150W, 20V, and 7.5A. HVG-150-20D is listed at 120W, so it is the lower-power sibling in that 20V branch.
