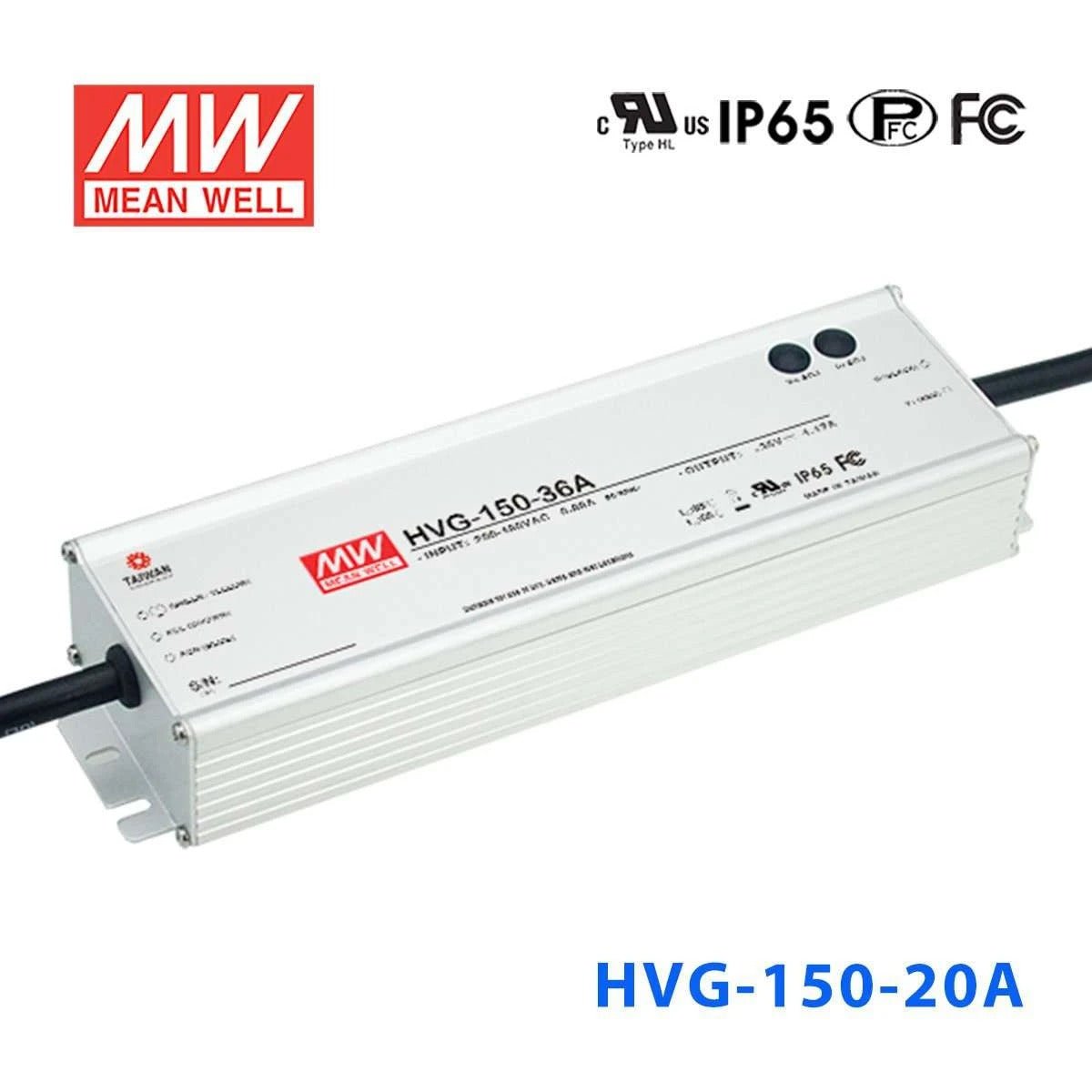

Mean Well HVG-150-20AB Power Supply 150W 20V - Adjustable and Dimma...
Overview
HVG-150-20AB is the 20V output model of this series: rated current 7.5A, rated power 150W, typical efficiency 90.5%. Type AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).
HVG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-150 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91.5%, with the fanless design, the series is able to operate from -40℃ through as high as +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant Voltage + Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP65 rating for indoor or outdoor installations

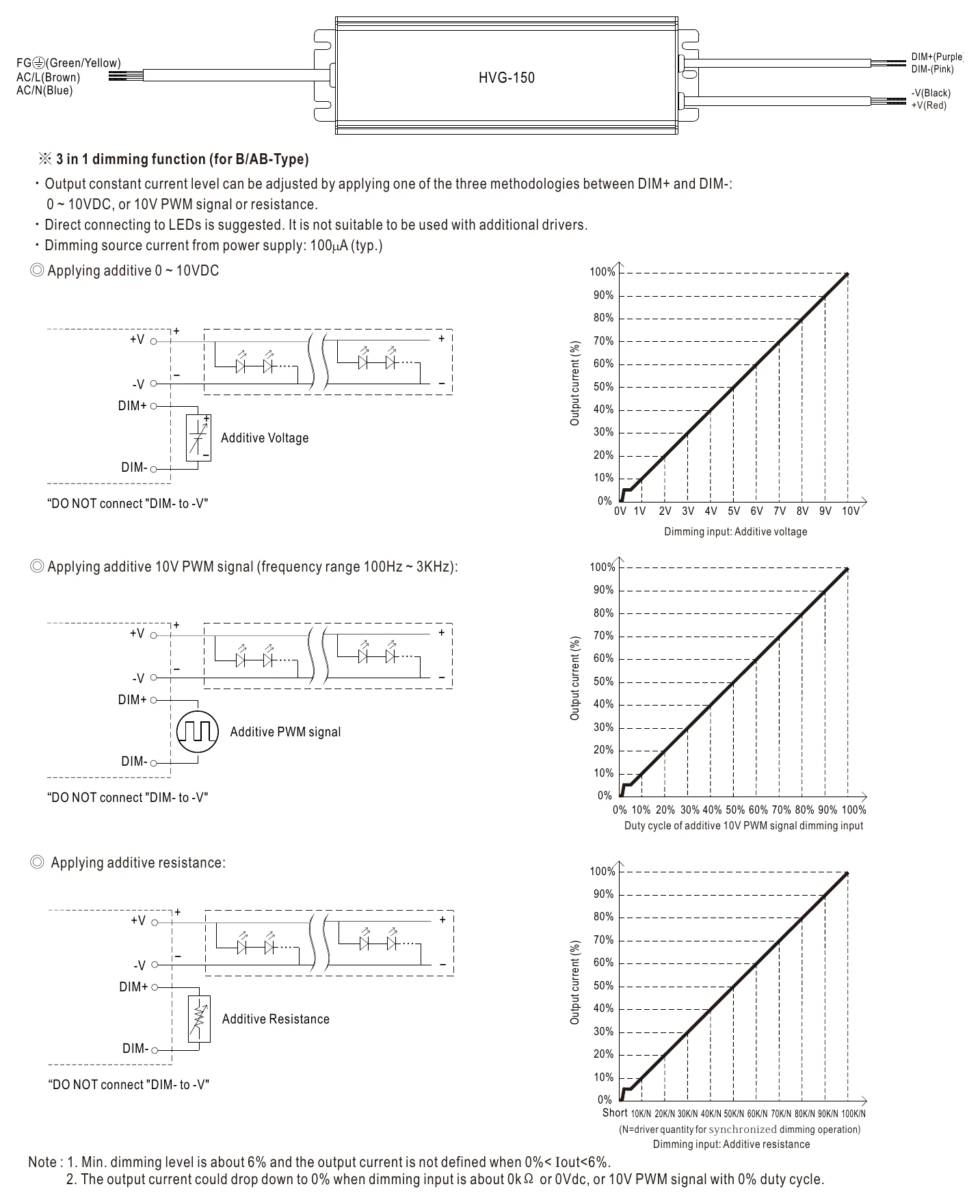

- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
- Typical lifet ime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 20V
- CONSTANT CURRENT REGIONNote.4
- 11~20V
- RATED CURRENT
- 7.5A
- RATED POWER
- 150W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for AB-Type only (via the built-in potentiometer) 17 ~ 22V
- CURRENT ADJ. RANGE
- Adjustable for AB-Type only (via the built-in potentiometer) 4.13 ~ 7.5A
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 500ms, 80ms /230VAC, 347VAC, 480VAC
- HOLD UP TIME (Typ.)
- 18ms/347VAC, 480VAC
INPUT
- VOLTAGE RANGENote.5
- 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 12V model]; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD) ” section)
- EFFICIENCY (Typ.)
- 90.5%
- INRUSH CURRENT (Typ.)
- COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
- LEAKAGE CURRENT
- <0.75mA / 480VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 23 ~ 27V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃(-40 ~ +75℃ for 12V model, -40 ~ +80℃ for 15V model)(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃(+75℃ for 12V model, +80℃ for 15V model)
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.7
- UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55015, EN61000-3-2 Class C (@ load≧55% load,@ load≧60% only for 12V model ) ; EN61000-3-3, FCC Part 15 Subpart,EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 1796.5K hrs min. Telcordia SR-332(Bellcore) ; 158.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 245*68*38.8mm (L*W*H)
- PACKING
- 1.24Kg; 12pcs/15.9Kg/0.78CUFT
Certifications & ratings
- Type
- HL
MODEL ENCODING
- A
- Io and Vo adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
- AB (this model)
- Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
- D
- Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. For A/AB type need to consider build in using to comply with Type HL application.
- 13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

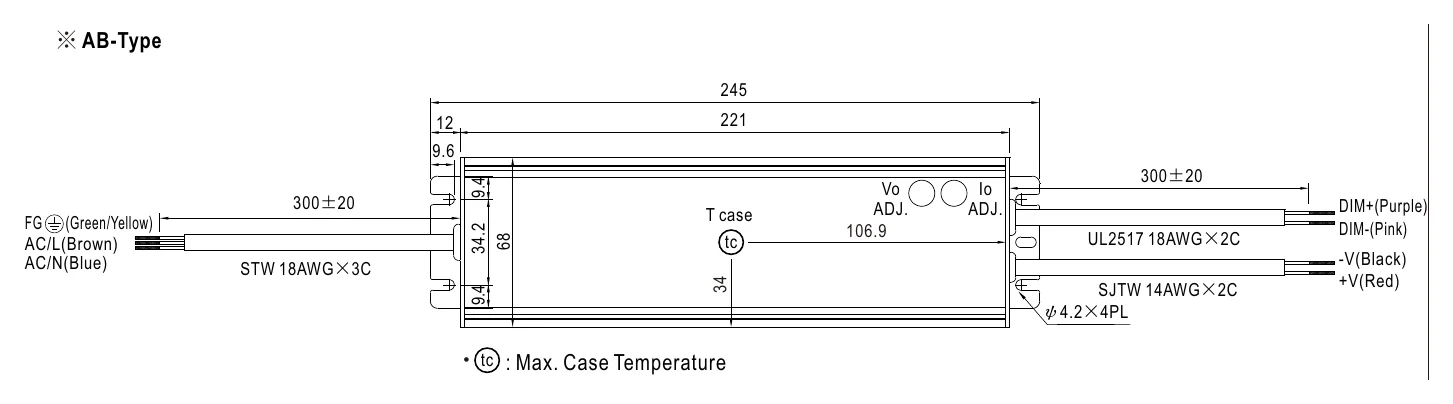

Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Downloads
FAQ
Can I use the HVG-150-20AB for a dimmable 20V LED strip system?
Yes, this is the adjustable and dimmable 20V version in the 150W family. The connected 20V strip load must stay within 150W total, which is 7.5A at 20V, and you should check your strip rated power per meter.
Is the HVG-150-20AB suitable for 20V dimmable signage lighting?
It is suited to 20V signage lighting systems that need adjustable and dimmable output and do not exceed 150W. The driver is rated 20V with 7.5A output, so it should be paired only with 20V loads inside that limit.
Can this model be used for 20V retail or display lighting with brightness control?
Yes, for 20V retail or display lighting where dimmable operation is required and the total load stays within 150W. It also accepts 180-528VAC input and operates from -40°C to +85°C, which supports demanding commercial environments.
Can the HVG-150-20AB run 20V decorative lighting in outdoor conditions?
It can be used for 20V decorative lighting outdoors because the enclosure is IP65 water-resistant. The lighting load must still remain within the unit's 150W and 7.5A output ratings.
How do I calculate the maximum 20V LED strip length for this driver?
Start with the driver's 150W maximum output and divide by the strip's watts per meter to estimate length. At 20V, the available current is 7.5A, but you should check your strip rated power per meter before final sizing.
What is the difference between HVG-150-20A, HVG-150-20AB, HVG-150-20B, and HVG-150-20D?
HVG-150-20A, HVG-150-20AB, and HVG-150-20B are all listed at 150W, 20V, and 7.5A. HVG-150-20D is not listed in the standard specification table for this series.
