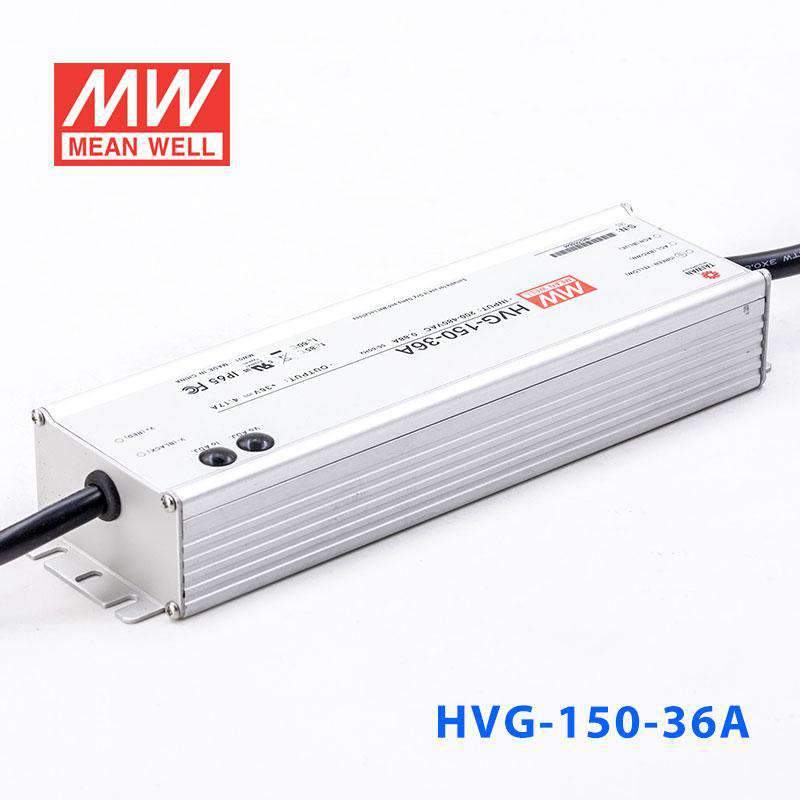

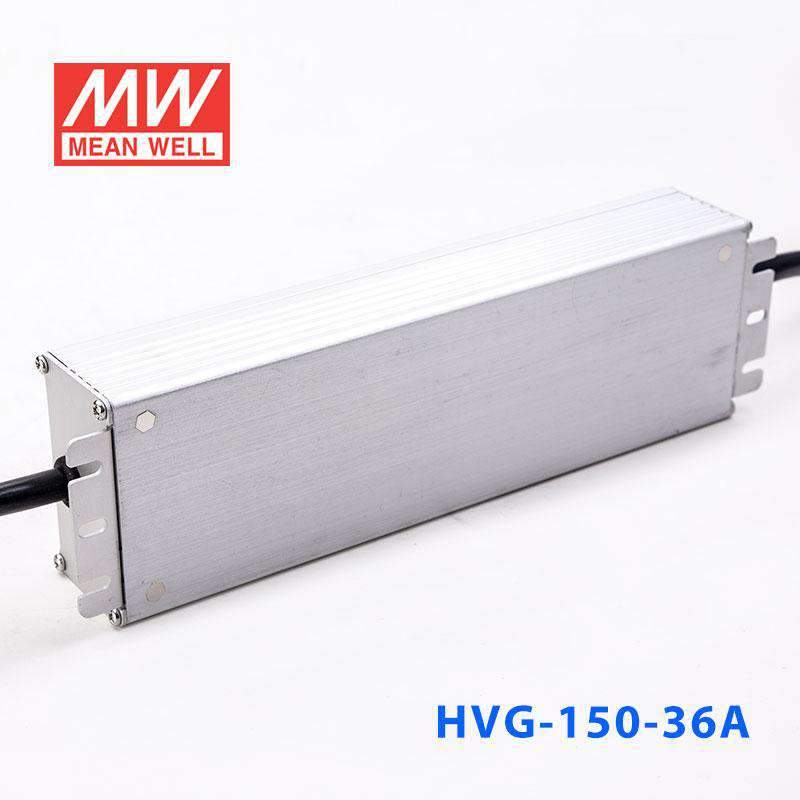

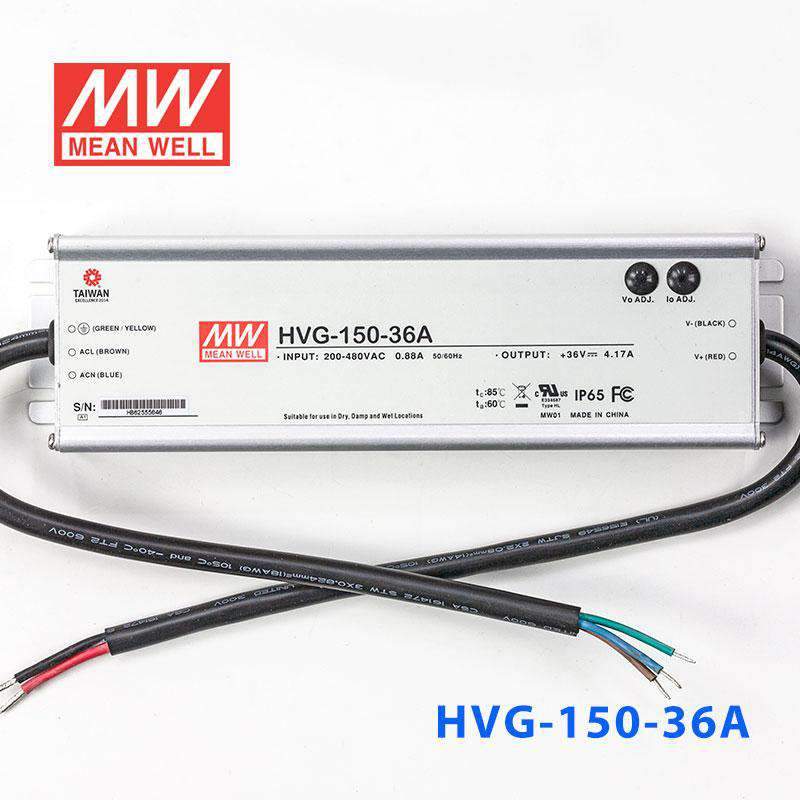

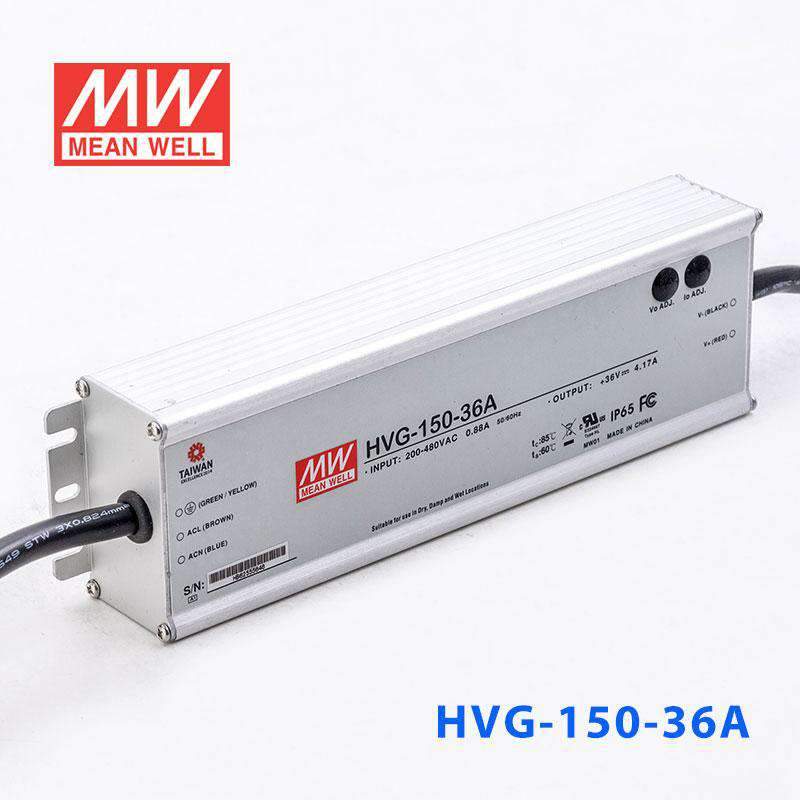

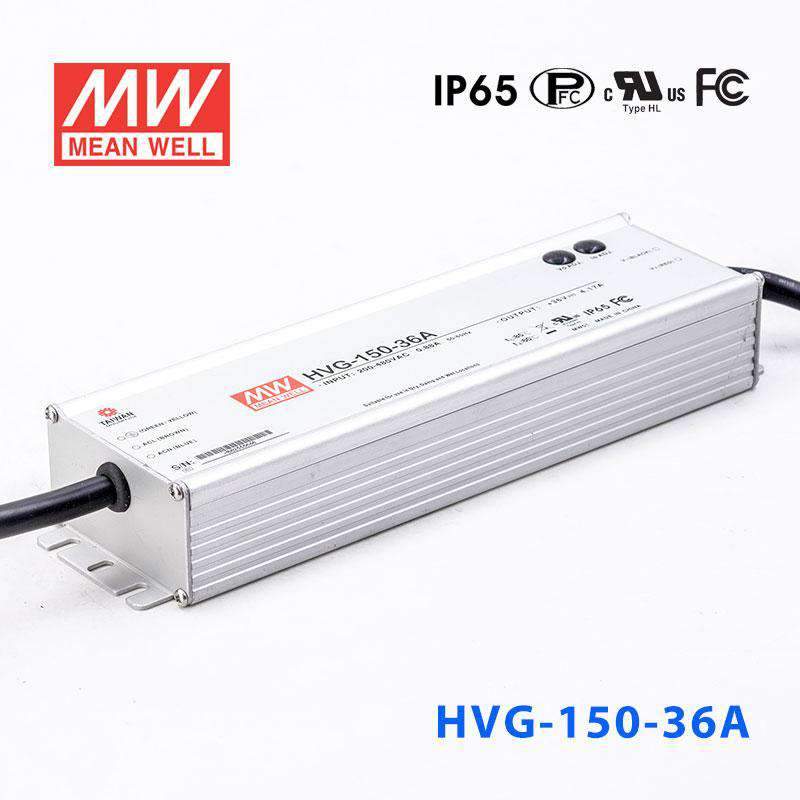

Mean Well HVG-150-36A Power Supply 150W 36V - Adjustable

Description

Features

180~528VAC wide input range

IP67 / IP65 design

Built-in active PFC

Protections: Short circuit / Over current / Over voltage / Over temperature

C.V. +C.C. mode design

Class 2 power unit

High efficiency up to 91.5%

Cooling by free air convection

Suitable for dry, damp. and wet location

Suitable for LED lighting and street lighting applications

Output current adjustable through output cable or internal potentiometer

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details

5 years warranty

General Specification

AC input voltage range	180~528VAC (single phase); 254~747VDC
AC inrush current (max.)	Cold start, 35A at 480VAC
DC adjustment range	±10% rated output voltage
Current adjustment range	55%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	SJTW 14AWGx2C (30cm)
Connection Output B-Type	SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	245x 68x 38.8

Specifications

Brand

Mean Well
Series

HVG Series
Power Rating

150.12 Watt
Output Voltage

36 Volt
Rated Current

4.17 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

9.65 in
Width

2.68 in
Height

1.53 in
Weight

2.73 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVG-150-36A for a 36V LED strip lighting run?

Yes, if the strip is designed for 36V operation and the total load does not exceed 150.12W. This driver provides 4.17A output with a constant current range of 19-36V, so the lighting load needs to stay within that range.

Is this driver suitable for 36V signage or display lighting?

It can be suitable for 36V LED signage or display loads that fit within 19-36V constant current and stay under 150.12W. The IP65 water-resistant enclosure also supports use in locations where the driver may be exposed to dust or rain.

Can the HVG-150-36A be used for commercial linear lighting?

Yes, for 36V linear LED loads that stay within the 4.17A and 150.12W limits. Its operating temperature range of -40°C to +85°C is also useful for commercial environments with wide temperature swings.

Can I use this for adjustable 36V architectural lighting?

Yes, this is the adjustable version in the 150.12W 36V group. It is intended for 36V LED lighting loads operating within the 19-36V constant current range.

How do I size LED strip length for the HVG-150-36A?

Use this formula: maximum strip length = 150.12W divided by the strip's rated watts per meter. That calculation gives the length limit, and you should also confirm the strip is a 36V load within the 19-36V constant current range.

Is the HVG-150-36A suitable for outdoor or damp installations?

It has an IP65 water-resistant rating, so it is suitable for environments with dust and water spray exposure. It is a better fit for outdoor or damp locations than indoor-only drivers, but IP65 does not indicate full waterproof immersion protection.

How does the HVG-150-36A compare with other 36V HVG models?

Within the listed 36V HVG range, the siblings are 65.2W 1.81A, 95.4W 2.65A, 150.12W 4.17A, 241.2W 6.7A, 320.4W 8.9A, and 478.8W 13.3A versions. At the 150.12W level, the related models are HVG-150-36A, HVG-150-36AB, HVG-150-36B, and HVG-150-36D, with the A model sharing the same 36V and 4.17A output rating.
