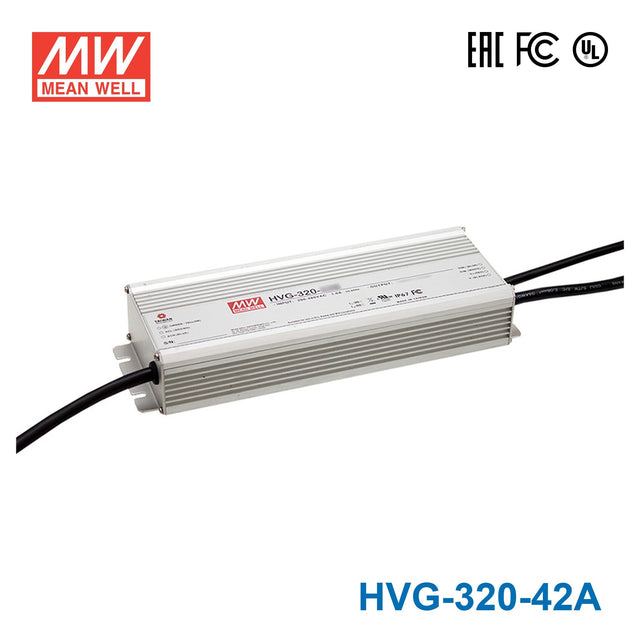

Mean Well HVG-320-42A LED Power Supplies 319.2W 42V 7.6A IP65
The HVG-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating319.2 Watt
-
Output Voltage42 Volt
-
Rated Current7.6 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
::specification::
Frequently Asked Questions
Can I use the HVG-320-42A for 42V LED signage in covered outdoor areas?
Yes, it can be used for 42V LED signage where the load matches a constant-current driver and stays within 319.2W and 7.6A. Its IP65 water-resistant housing supports outdoor use where protection from low-pressure water and dust is needed.
Is the HVG-320-42A a good fit for architectural facade lighting?
It can be a fit for architectural facade lighting built around a 42V constant-current load within the 21-42V CC range. The -40°C to +85°C operating temperature range also supports demanding ambient conditions.
Can this model power a 42V constant-current linear lighting system?
Yes, if the lighting system is designed for constant-current operation and the total demand stays at or below 319.2W and 7.6A. The output is 42V with a 21-42V constant-current range, so the fixture needs to match that range.
How do I estimate LED strip length with the HVG-320-42A?
Use this sizing math: 319.2W ÷ your strip's rated watts per meter = maximum estimated length. Check your strip rated power per meter and confirm it is a 42V constant-current product before final selection.
Can the HVG-320-42A be used outdoors year-round?
It is built for harsh conditions with an IP65 water-resistant enclosure and an operating range of -40°C to +85°C. That makes it suitable for many outdoor lighting locations, but it is not rated IP67 waterproof.
