Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

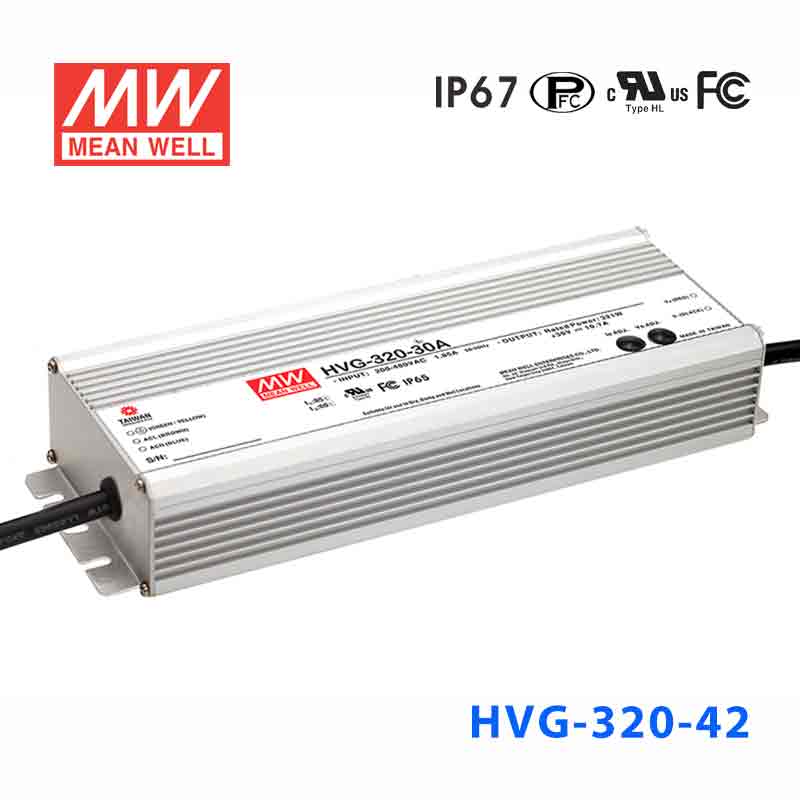

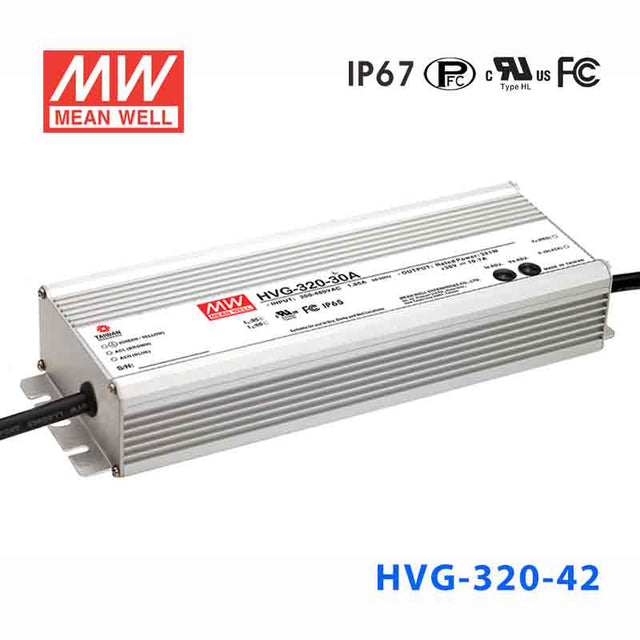

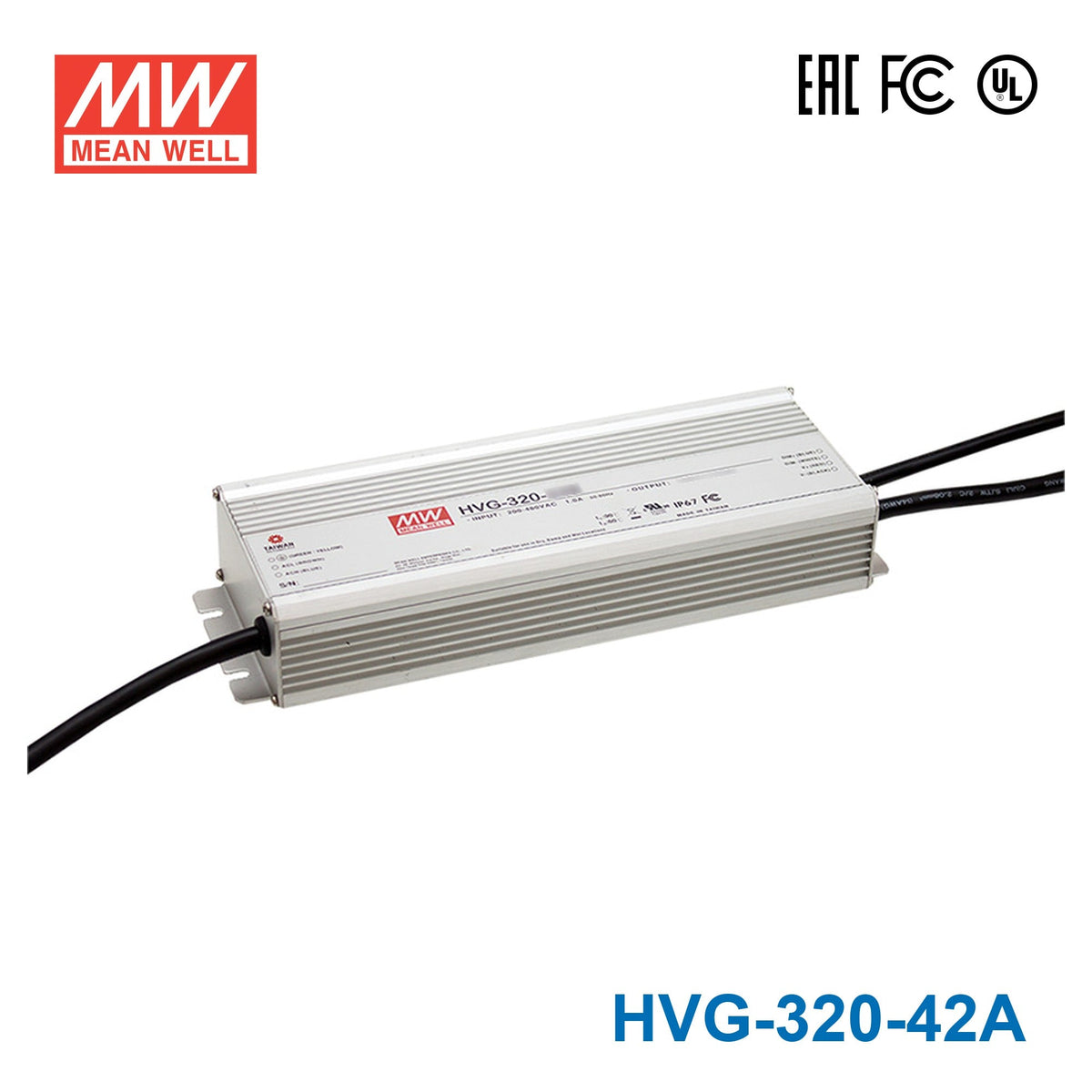

Mean Well HVG-320-42A LED Power Supplies 319.2W 42V 7.6A IP65

Name: Mean Well HVG-320-42A LED Power Supplies 319.2W 42V 7.6A IP65
Brand: Mean Well
SKU: HVG-320-42A
Price: 119.65 USD
Availability: InStock

wide input range 180~528VAC, aluminium casing

SKU:

HVG-320-42A

$119.65 USD ~~$124.89~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

180~528VAC wide input range

Constant Voltage + Constant Current mode output

Metal housing with Class I design

Built-in active PFC

IP67 / IP65 rating for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC; 254~747VDC
AC inrush current (max.)	COLD START 50A(twidth=850 s measured at 50% I μ peak) at 480VAC; Per NEMA 410
DC adjustment range	±10% rated output voltage
Current adjustment range	55%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over-voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+85ºC (refer to output derating curve)
Safety standards	UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	SJTW 14AWGx2C (30cm)
Connection Output B-Type	SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	262 x 90 x 43.8

Specifications

Brand

Mean Well
Series

HVG Series
Power Rating

319.2 Watt
Output Voltage

42 Volt
Rated Current

7.6 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

10.32 in
Width

3.54 in
Height

1.72 in
Weight

4.41 lb

File Downloads

::specification::
