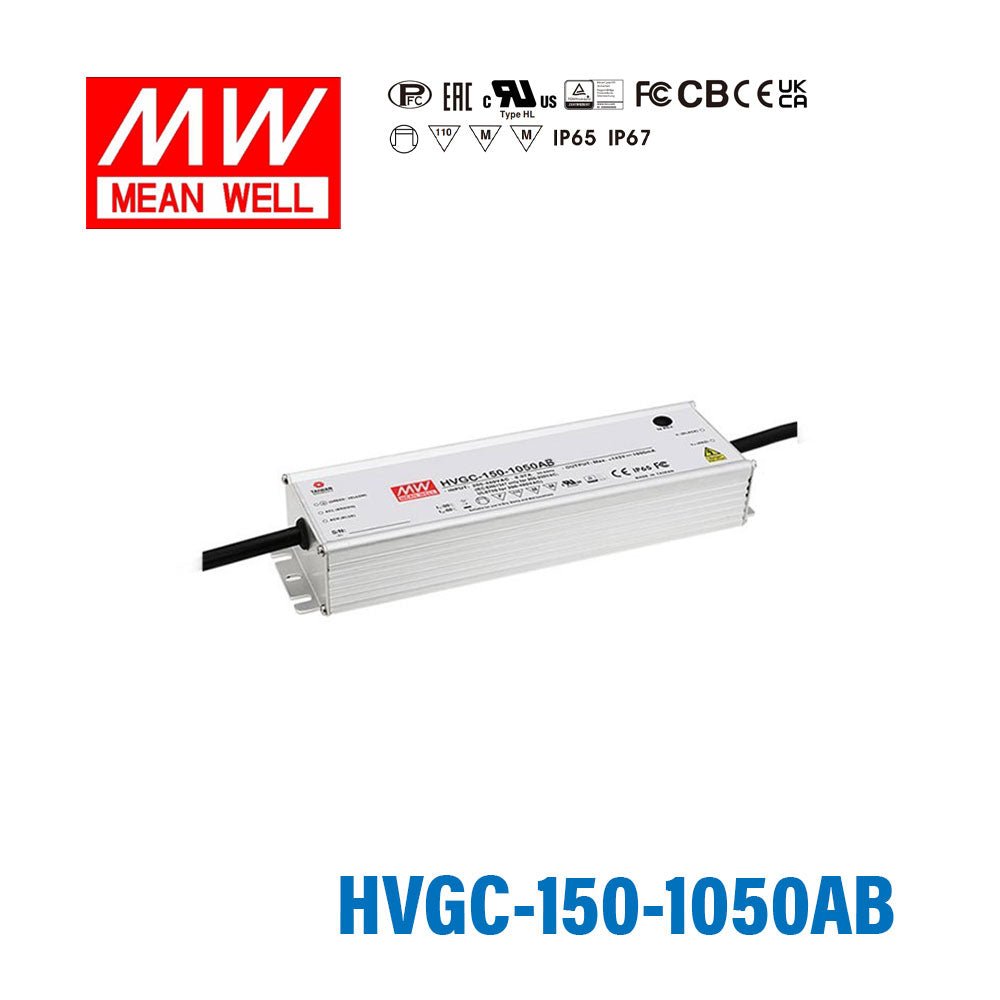

Mean Well HVGC-150-1050AB Power Supply 150W 1050mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-150-1050AB Power Supply 150W 1050mA - Adjustable and...
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating150.15 Watt
-
Output Voltage143 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-150-1050AB for a 1050mA LED downlight array?
Yes, if the downlight array is designed for constant current at 1050mA. The total LED forward voltage needs to stay within the 15-143V constant-current range, and the total load needs to stay within 150.15W.
Is this driver suitable for signage modules that run on constant current?
It can be a fit for signage modules that are specified for 1050mA constant-current operation. The connected module string must fall inside the 15-143V CC output range, and it is not the right choice for constant-voltage signage products.
Can this model power a small LED array in a damp or outdoor location?
This model is rated IP65 water-resistant and has an aluminium casing, so it is suited to demanding indoor areas and many outdoor locations where water resistance is needed. Its operating temperature range is -40°C to +80°C, which supports use in hot and cold environments.
Will this driver work with my LED load if I do not know the exact LED count yet?
The key match point is the constant-current output of 1050mA and the 15-143V CC voltage range. The number of LEDs depends on each LED forward voltage, so this should be checked from the LED data rather than estimated by count alone.
How does the HVGC-150-1050AB compare with other 150W HVGC models?
Within the 150W HVGC family, the main electrical options are 350mA with 42-428V at 149.8W, 500mA with 30-300V at 150W, 700mA with 21-215V at 150.5W, 1050mA with 15-143V at 150.15W, and 1400mA with 12-107V at 149.8W. The HVGC-150-1050AB sits in the 1050mA version of that range.
