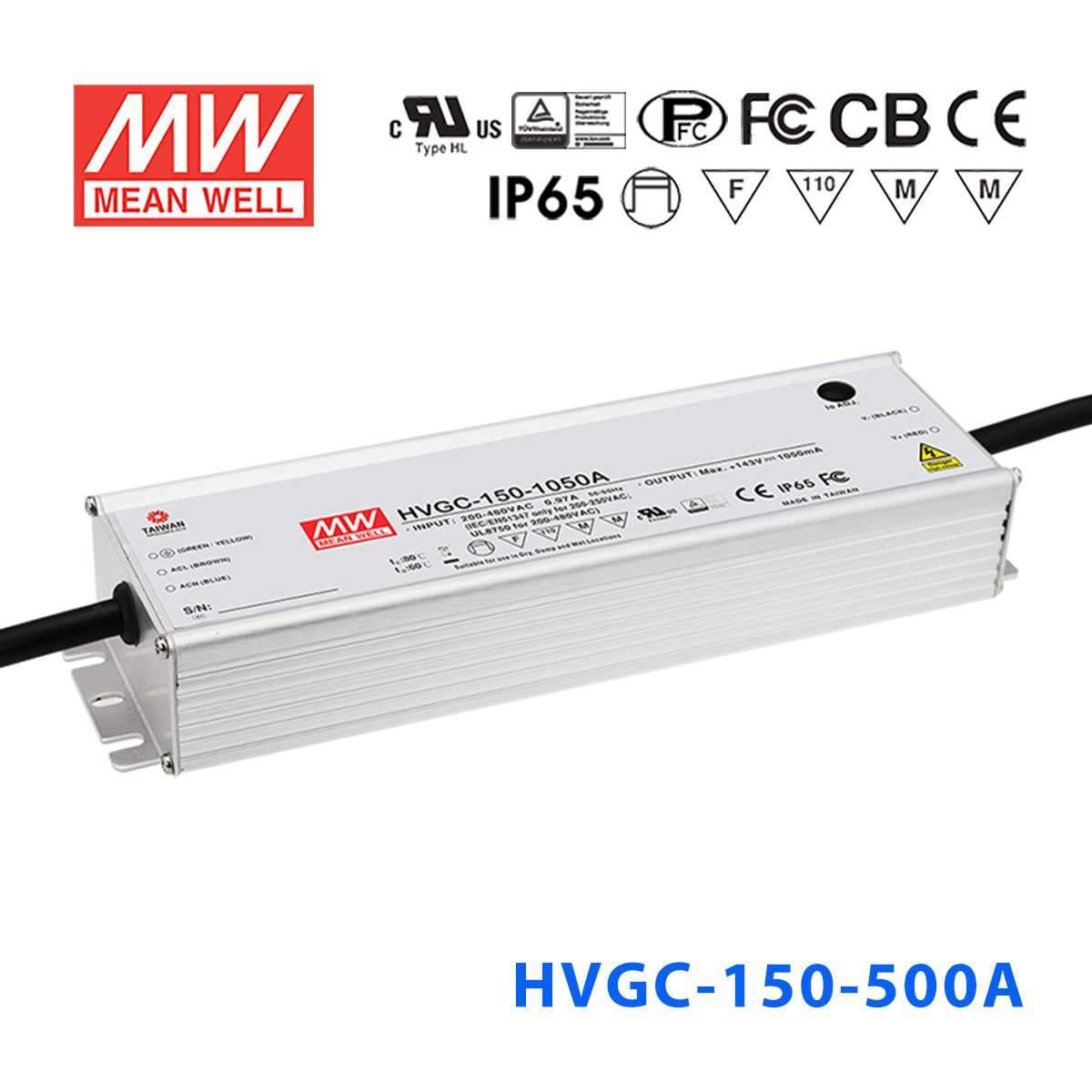

Mean Well HVGC-150-500A Power Supply 150W 500mA - Adjustable
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating150 Watt
-
Output Voltage300 Volt
-
Rated Current0.5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-150-500A for LED downlights that need 500mA drive current?
Yes, if the downlight array is designed for constant current operation at 500mA and its total forward voltage falls within 30-300V. This driver is not intended for constant voltage LED products.
Is this driver suitable for constant current signage modules?
It can be, provided the signage modules require 500mA constant current and the combined forward voltage stays within the 30-300V constant current range. With a 150W rating, it is meant for substantial constant current LED loads within those electrical limits.
Will the HVGC-150-500A work with a small LED array that needs more current than 350mA?
Yes, this version outputs 500mA instead of 350mA, so it fits LED arrays specified for that higher constant current. The load still needs to stay within the 30-300V constant current range and within the 150W power rating.
How do I check compatibility for my LED string or module?
This driver supplies 500mA constant current over a 30-300V output range. The number of LEDs depends on each LED forward voltage, so the correct check is whether the total forward voltage of the load stays within that range.
Can the HVGC-150-500A be used in demanding ambient conditions?
It is rated IP65 water-resistant and operates from -40°C to +80°C. The aluminium casing and 180-528VAC input range support use in locations where those environmental and input specifications are needed.
