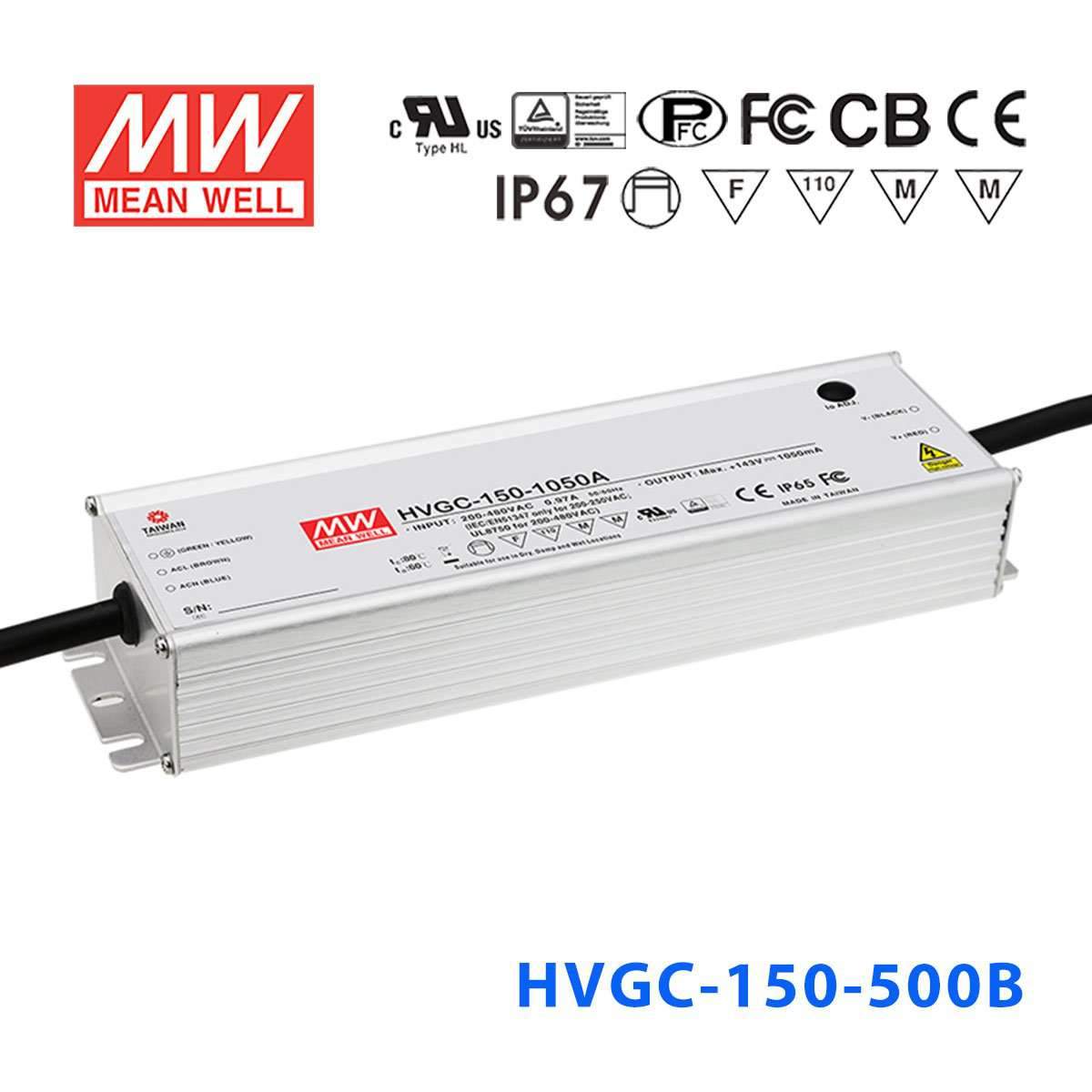

Mean Well HVGC-150-500B Power Supply 150W 500mA - Dimmable
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating150 Watt
-
Output Voltage300 Volt
-
Rated Current0.5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-150-500B for high-voltage LED downlights?
Yes, this driver is built for constant current LED loads at 500mA with a 30-300V constant current output range. That makes it suitable for LED downlight systems that are designed for a 500mA constant current driver rather than a constant voltage power supply.
Is the HVGC-150-500B suitable for LED signage modules or long series LED arrays?
It can be a fit for signage modules or small LED arrays when the load requires 500mA constant current and the total forward voltage stays within 30-300V. The number of LEDs depends on the forward voltage of each LED or module, so the match should be checked against the full series voltage, not by LED count alone.
Can this 150W driver run architectural or outdoor linear LED assemblies?
It is often used where a constant current 500mA output and up to 150W are needed for higher-voltage LED assemblies. The IP67 waterproof rating and -40°C to +80°C operating temperature support use in exposed or demanding environments when the fixture itself is rated accordingly.
How do I know if my LED load is compatible with the HVGC-150-500B?
The key checks are the required drive current and the total forward voltage of the LED load. This model is a constant current driver rated at 500mA with a 30-300V output range, so it is intended for constant current LED loads, not constant voltage products.
Is the HVGC-150-500B suitable for wet or harsh locations?
Yes, the housing is rated IP67 waterproof and uses an aluminium casing. It is also specified for operation from -40°C to +80°C, which makes it suitable for indoor or outdoor use where the rest of the lighting system is rated for the same conditions.
