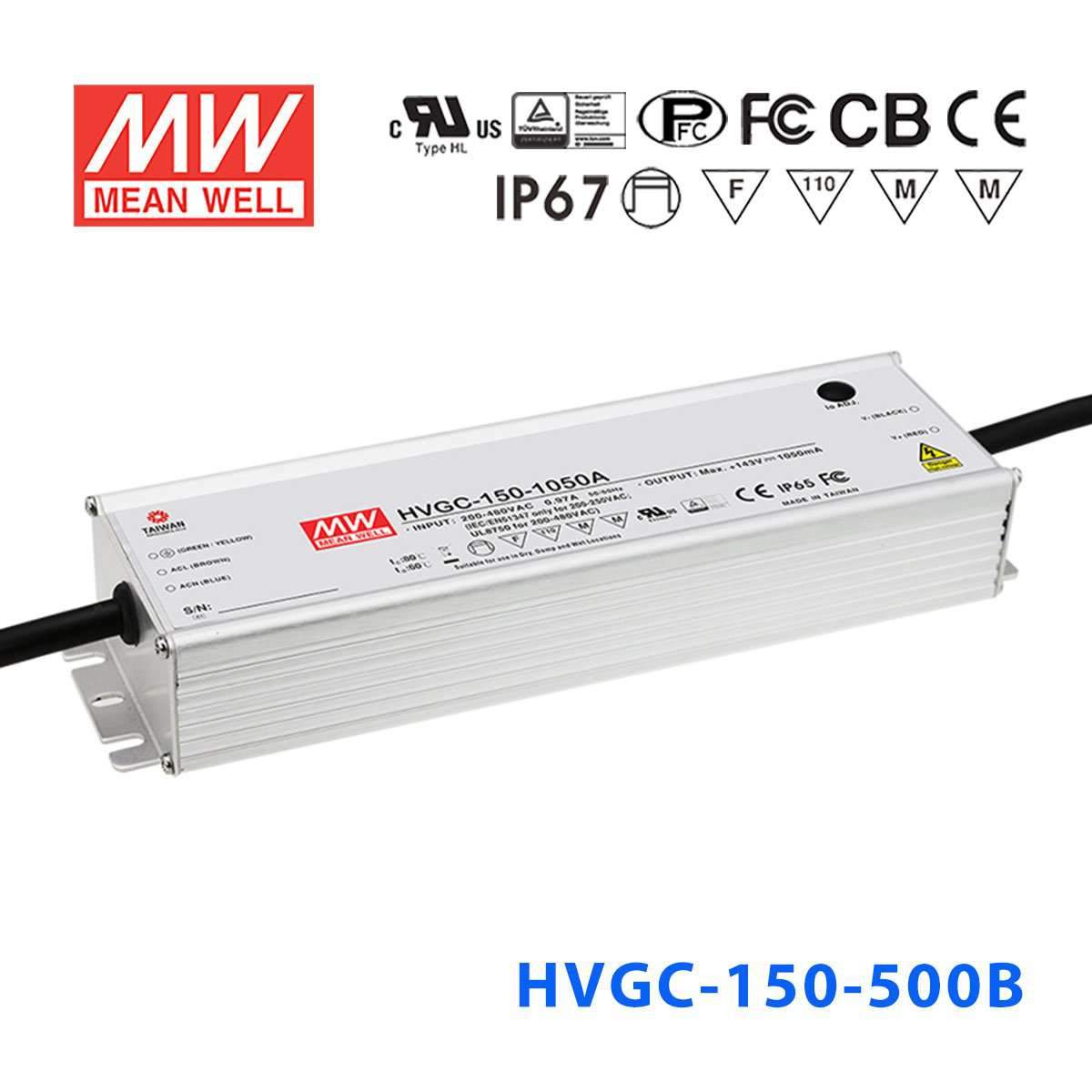

Mean Well HVGC-150-500B Power Supply 150W 500mA - Dimmable

Name: Mean Well HVGC-150-500B Power Supply 150W 500mA - Dimmable
Brand: Mean Well
SKU: HVGC-150-500B
Price: 80.73 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-150-500B

$80.73 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVGC-150-500B is the model of this series: rated current 500mA, rated power 150W, typical efficiency 91%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

HVGC-150 series is a 150W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-150 operates from 180~528VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: 3 in 1 dimming (dim-to-off)
Typical lifet ime>50000 hours
5 years warranty

Specifications

HVGC-150-500BSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

RATED CURRENT: 500mA
RATED POWER: 150W
CONSTANT CURRENT REGION^Note.2: 30 ~ 300V
CURRENT ADJ. RANGE: 300 ~ 500mA
CURRENT RIPPLE^Note.5: 8.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms / 230Vac 400ms / 347VAC,480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.5A / 347VAC 0.38A / 480VAC
INRUSH CURRENT (Typ.): COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 316 ~ 346V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, FCC part 15 class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1755.7K hrs min. Telcordia SR-332 (Bellcore) ; 179.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 245*68*38.8mm (L*W*H)
PACKING: 1.24Kg; 12pcs/15.9Kg/0.78CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. Current ripple is measured between 50%~100% of maximum voltage under rated power delivery.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVGC-150-500B Block Diagram — Block Diagram

HVGC-150-500B DIMMING OPERATION — DIMMING OPERATION

HVGC-150-500B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVGC-150-500B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

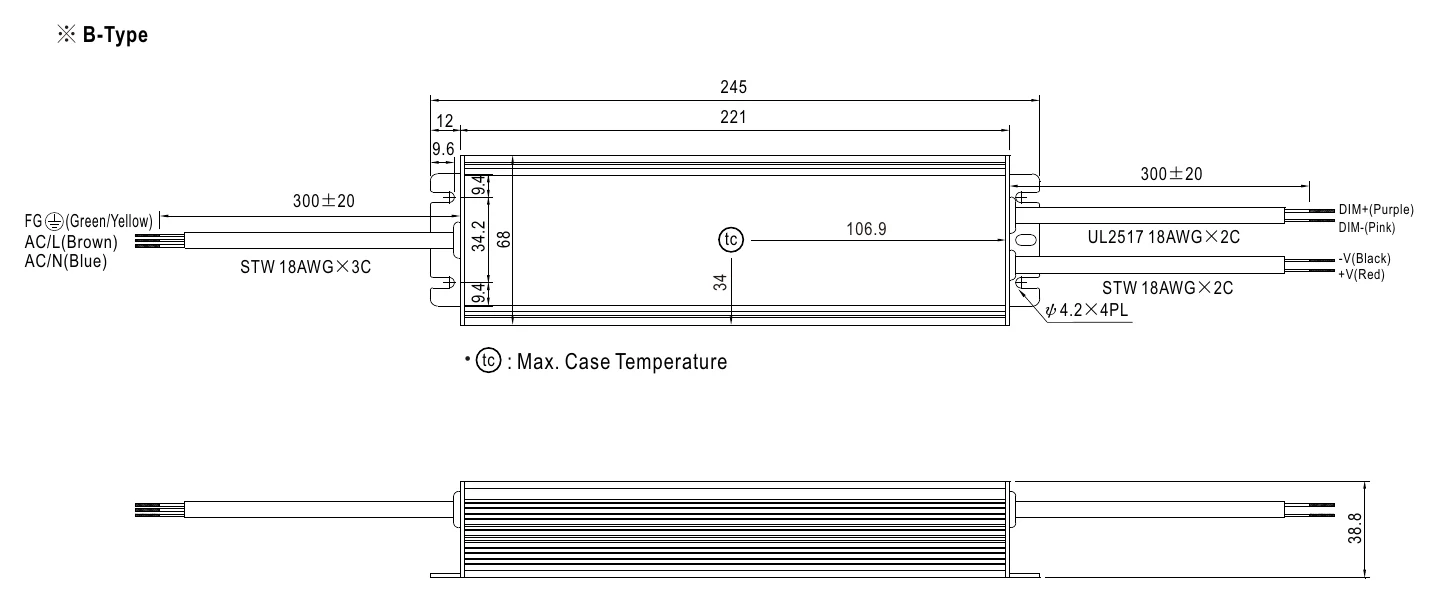

HVGC-150-500B MECHANICAL SPECIFICATION ※ B-Type — MECHANICAL SPECIFICATION ※ B-Type

HVGC-150-500B ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HVGC-150-500B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVGC-150-500B datasheetHVGC-150-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates4

TUV Certificate(HVGC-150)(EN) PDF Download

EMC Certificate(HVGC-150)(EN) PDF Download

FCC Certificate(HVGC-150)(EN) PDF Download

CB Certificate(HVGC-150)(EN) PDF Download

Test reports1

Test Report(HVGC-150-500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVGC-150-500B for high-voltage LED downlights?

Yes, this driver is built for constant current LED loads at 500mA with a 30-300V constant current output range. That makes it suitable for LED downlight systems that are designed for a 500mA constant current driver rather than a constant voltage power supply.

Is the HVGC-150-500B suitable for LED signage modules or long series LED arrays?

It can be a fit for signage modules or small LED arrays when the load requires 500mA constant current and the total forward voltage stays within 30-300V. The number of LEDs depends on the forward voltage of each LED or module, so the match should be checked against the full series voltage, not by LED count alone.

Can this 150W driver run architectural or outdoor linear LED assemblies?

It is often used where a constant current 500mA output and up to 150W are needed for higher-voltage LED assemblies. The HVGC-150 series is IP65 or IP67 approved and works at a case temperature (Tcase) of -40°C to +80°C with load derating, supporting exposed or demanding environments when the fixture itself is rated accordingly.

How do I know if my LED load is compatible with the HVGC-150-500B?

The key checks are the required drive current and the total forward voltage of the LED load. This model is a constant current driver rated at 500mA with a 30-300V output range, so it is intended for constant current LED loads, not constant voltage products.

Is the HVGC-150-500B suitable for wet or harsh locations?

Yes, the HVGC-150 series is IP65 or IP67 approved, and the sheet notes a waterproof connector can be assembled on the output cable for wet, damp or outdoor environments. It works at a case temperature (Tcase) of -40°C to +80°C with load derating, provided the rest of the lighting system is rated for the same conditions.
