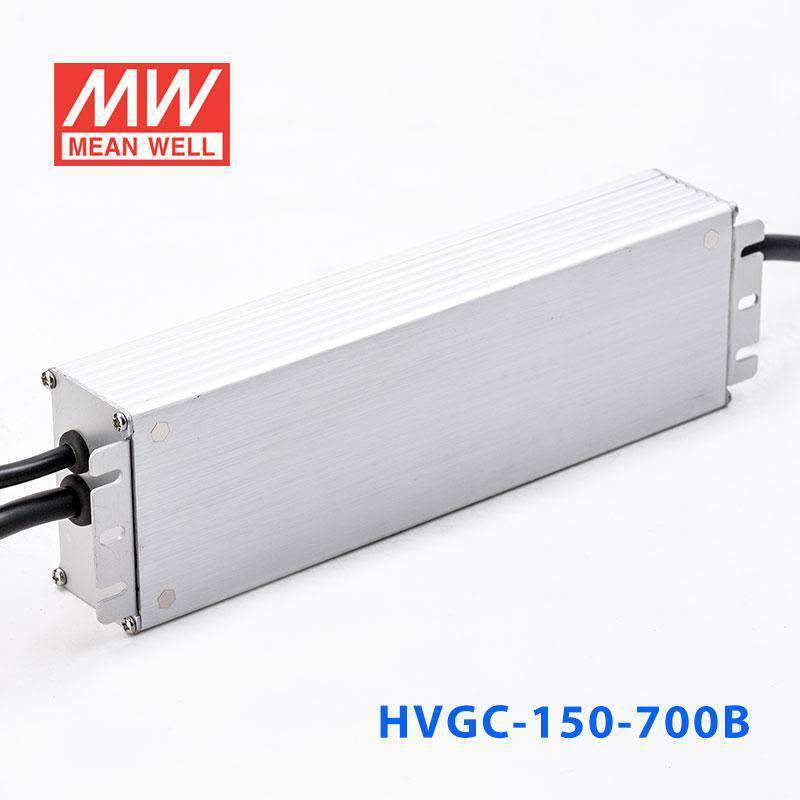

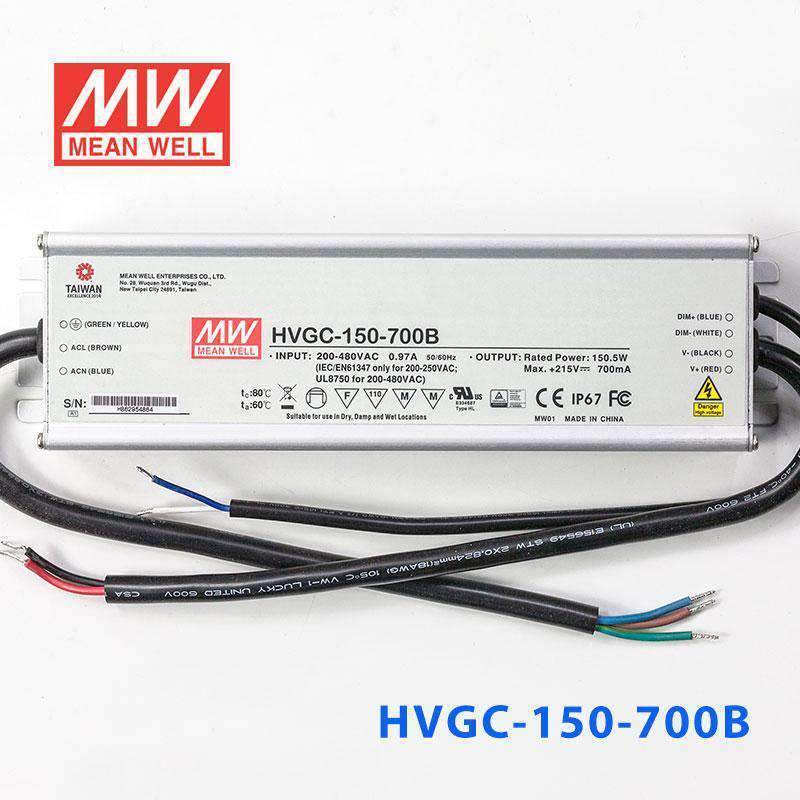

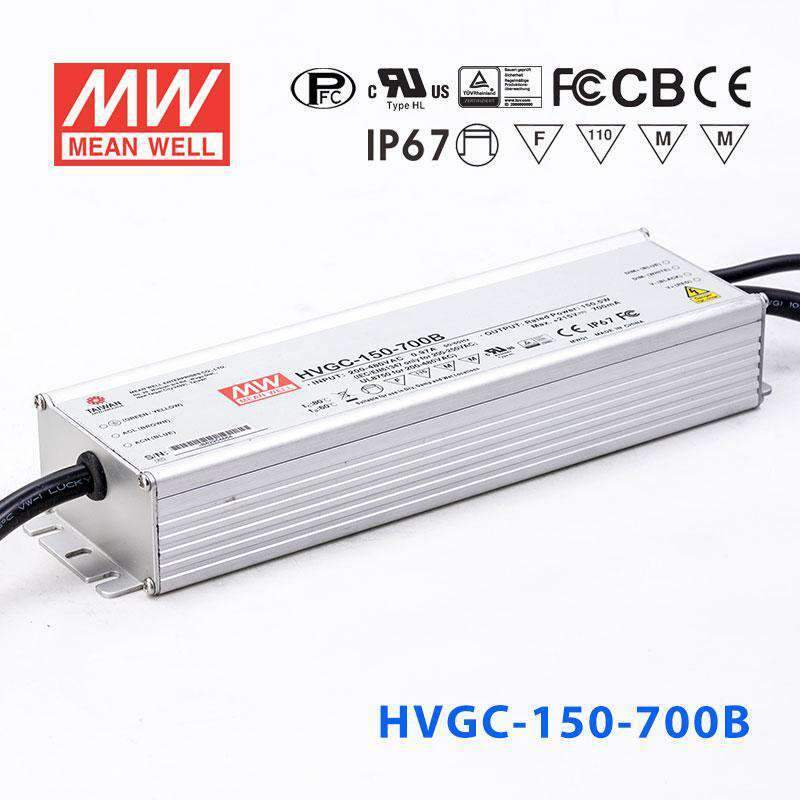

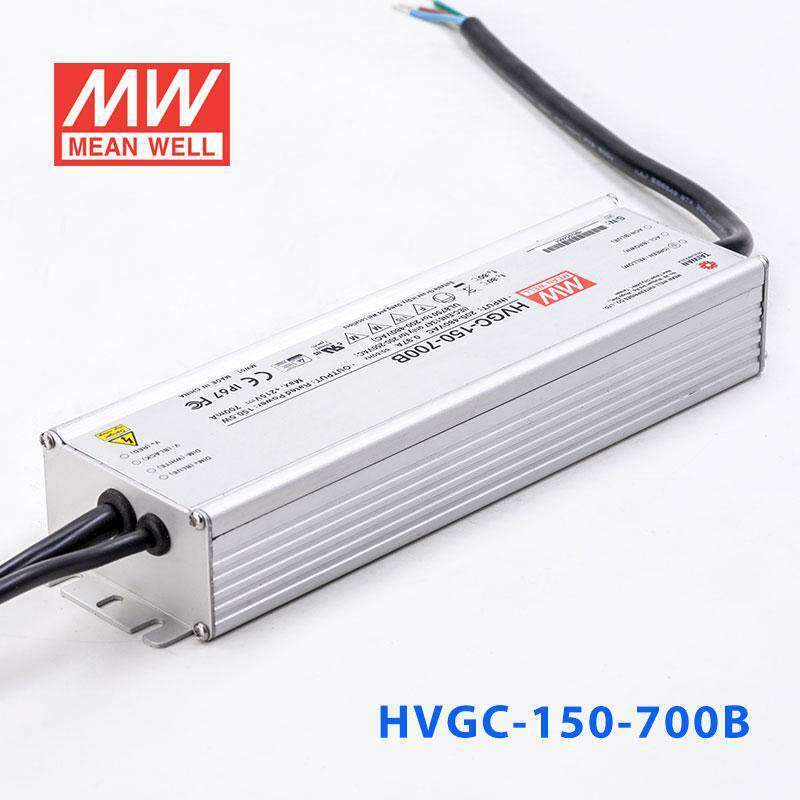

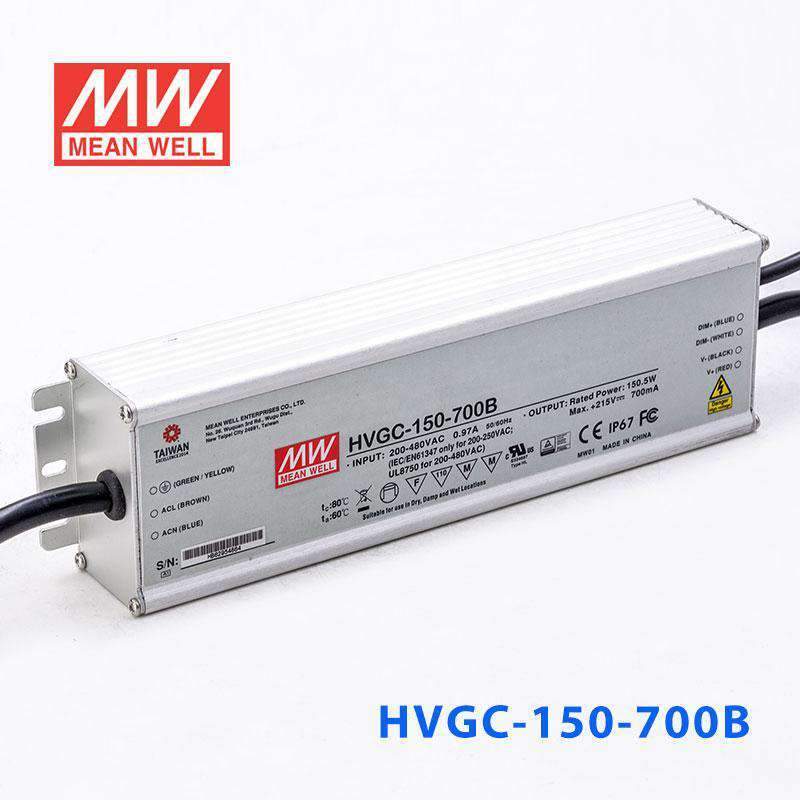

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HVGC-150-700B Power Supply 150W 700mA - Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-150-700B

$74.32 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

180~528VAC wide input range

IP67 / IP65 design

Built-in active PFC

Protections: Short circuit / Over voltage / Over temperature

High efficiency up to 91%

Cooling by free air convection

Suitable for dry, damp. and wet location

Suitable for LED lighting and street lighting applications

Output current adjustable through output cable or internal potentiometer

Constant current design (C.C. mode)

Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details

5 years warranty

General Specification

AC input voltage range	180~528VAC (single phase); 254~747VDC
AC inrush current (max.)	Cold start, 35A at 480VAC
Current adjustment range	60%~100%
Over voltage protection	105%~115% rated output voltage
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	Design refer to UL8750, ENEC EN61347-1, EN61347-2-13, EN62384
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	STW 18AWGx2C (30cm)
Connection Output B-Type	STW 18AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	245x 68x 38.8

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

150.5 Watt
Output Voltage

215 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

0-10V,10V PWM,Resistance
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

9.65 in
Width

2.68 in
Height

1.53 in
Weight

2.73 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-150-700B for outdoor LED downlights?

Yes, if the fixture is designed for a 700mA constant current driver and the total LED forward voltage is within 21-215V. Because this model is IP67 waterproof, it is a stronger fit for exposed outdoor lighting than a water-resistant only version.

Is the HVGC-150-700B suitable for waterproof signage modules or exterior LED arrays?

It can be used with constant current signage modules or small LED arrays that require 700mA and fit within the 21-215V output range. The IP67 rating supports wet-location use when the LED load and enclosure are also rated for that environment.

Can this driver power high-output constant current LED assemblies?

Yes, it is designed for constant current LED loads up to 150.5W at 700mA. That makes it suitable for larger LED assemblies where a constant voltage supply would not be the correct match.

How do I confirm compatibility with the HVGC-150-700B?

Match the LED load to 700mA constant current and make sure the total forward voltage stays between 21V and 215V. The number of LEDs cannot be stated as a fixed count because it depends on the forward voltage of each LED in the series string.

What is the practical difference between the HVGC-150-700A, HVGC-150-700AB, HVGC-150-700B, and HVGC-150-700D?

The HVGC-150-700A, HVGC-150-700AB, and HVGC-150-700B all share 700mA output current, a 21-215V constant current range, and 150.5W power. The HVGC-150-700D is listed at 149.8W, while the B version here is the IP67 waterproof model and the A and AB versions are IP65 water-resistant in the product data provided.
