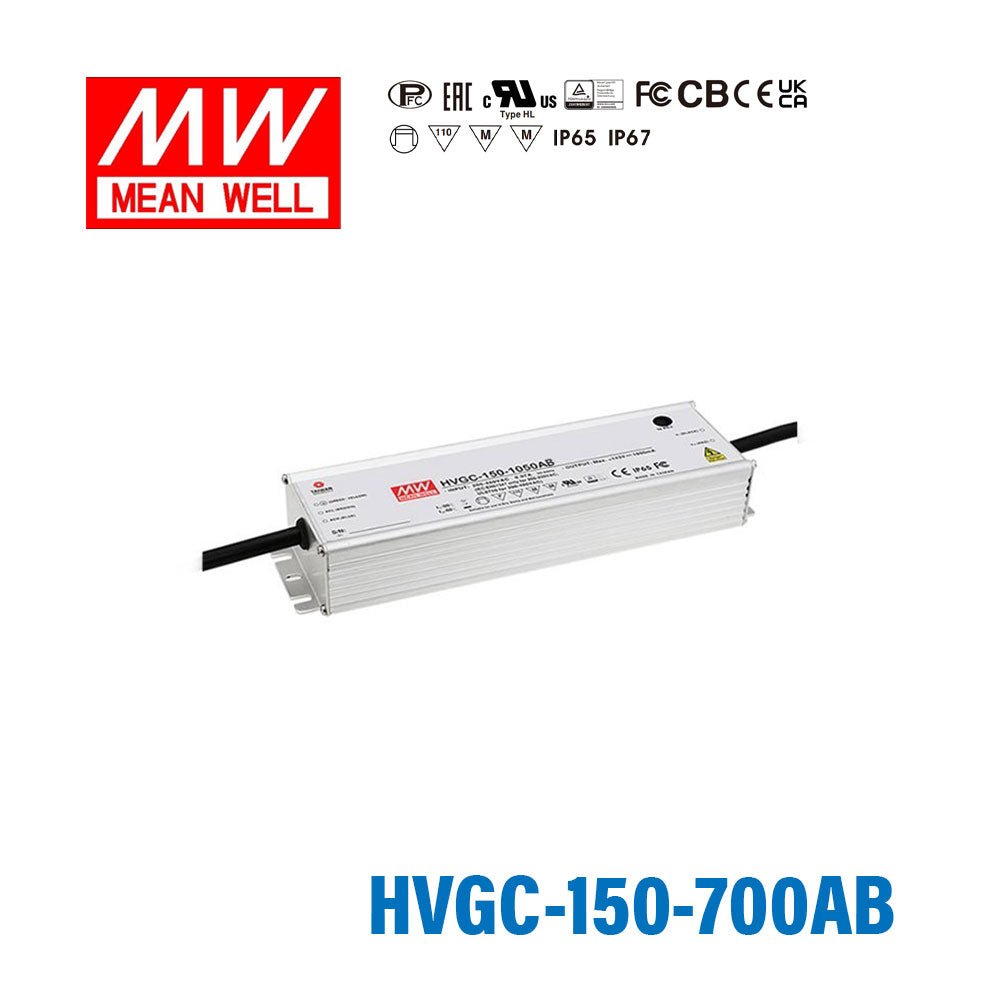

Mean Well HVGC-150-700AB Power Supply 150W 700mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-150-700AB Power Supply 150W 700mA - Adjustable and D...
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating150.5 Watt
-
Output Voltage215 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-150-700AB for dimmable LED downlights?
Yes, if the downlight system is designed for a 700mA constant current driver and the LED load stays within the 21-215V constant current range. It should be matched to constant current fixtures, not constant voltage LED products.
Is the HVGC-150-700AB suitable for LED signage lighting with dimming control?
It can be used for constant current signage modules or small LED arrays that need 700mA drive current. The total load must remain within 21-215V and 150.5W, and the load must be a constant current design rather than a constant voltage system.
Can this model be used for commercial LED arrays where output adjustment is needed?
Yes, this version is intended for constant current LED applications that benefit from adjustable and dimmable operation. Electrically, the LED load still has to match 700mA constant current and stay within the 21-215V output range.
How do I size an LED load for the HVGC-150-700AB?
Size the load by current first and then by total forward voltage. This driver supplies 700mA in constant current mode across 21-215V, and the actual number of LEDs depends on the forward voltage of each LED or module.
Is the HVGC-150-700AB intended for outdoor or washdown locations?
It is rated IP65 water-resistant, which fits dust exposure and water spray but not the same sealing level as IP67 waterproof models. The aluminium casing and -40°C to +80°C operating range also support demanding indoor and sheltered outdoor environments.
