Mean Well

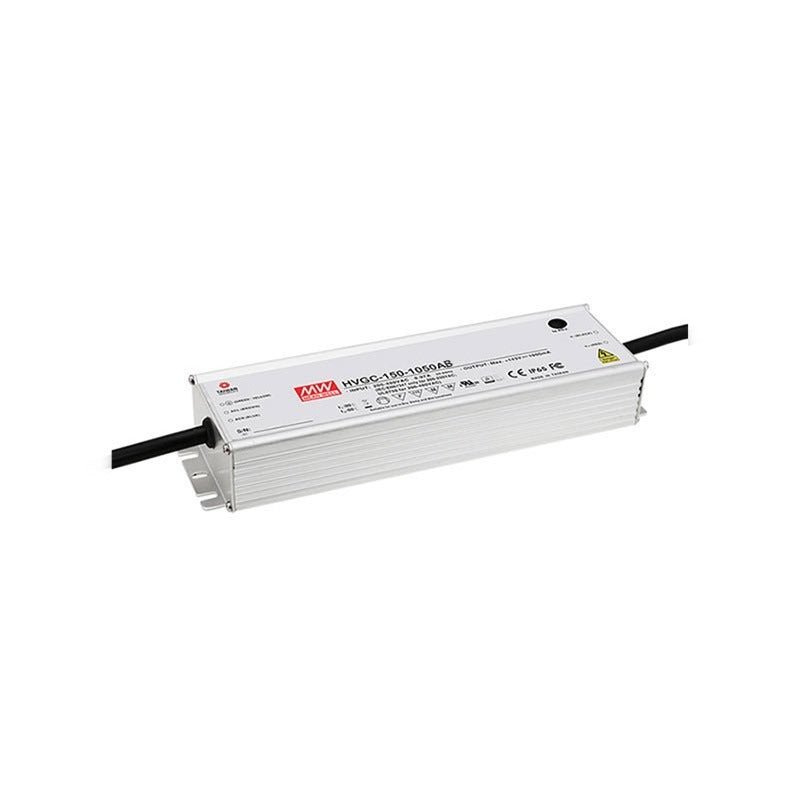

Mean Well HVGC-150-700AB Power Supply 150W 700mA - Adjustable and Dimmable

Name: Mean Well HVGC-150-700AB Power Supply 150W 700mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HVGC-150-700AB
Price: 90.9 USD
Availability: InStock

Mean Well HVGC-150-700AB Power Supply 150W 700mA - Adjustable and Dimmable

On Backorder

$90.90 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	180~528VAC (single phase); 254~747VDC
AC inrush current (max.)	Cold start, 35A at 480VAC
Current adjustment range	60%~100%
Over voltage protection	105%~115% rated output voltage
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	Design refer to UL8750, ENEC EN61347-1, EN61347-2-13, EN62384
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	STW 18AWGx2C (30cm)
Connection Output B-Type	STW 18AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	245x 68x 38.8
