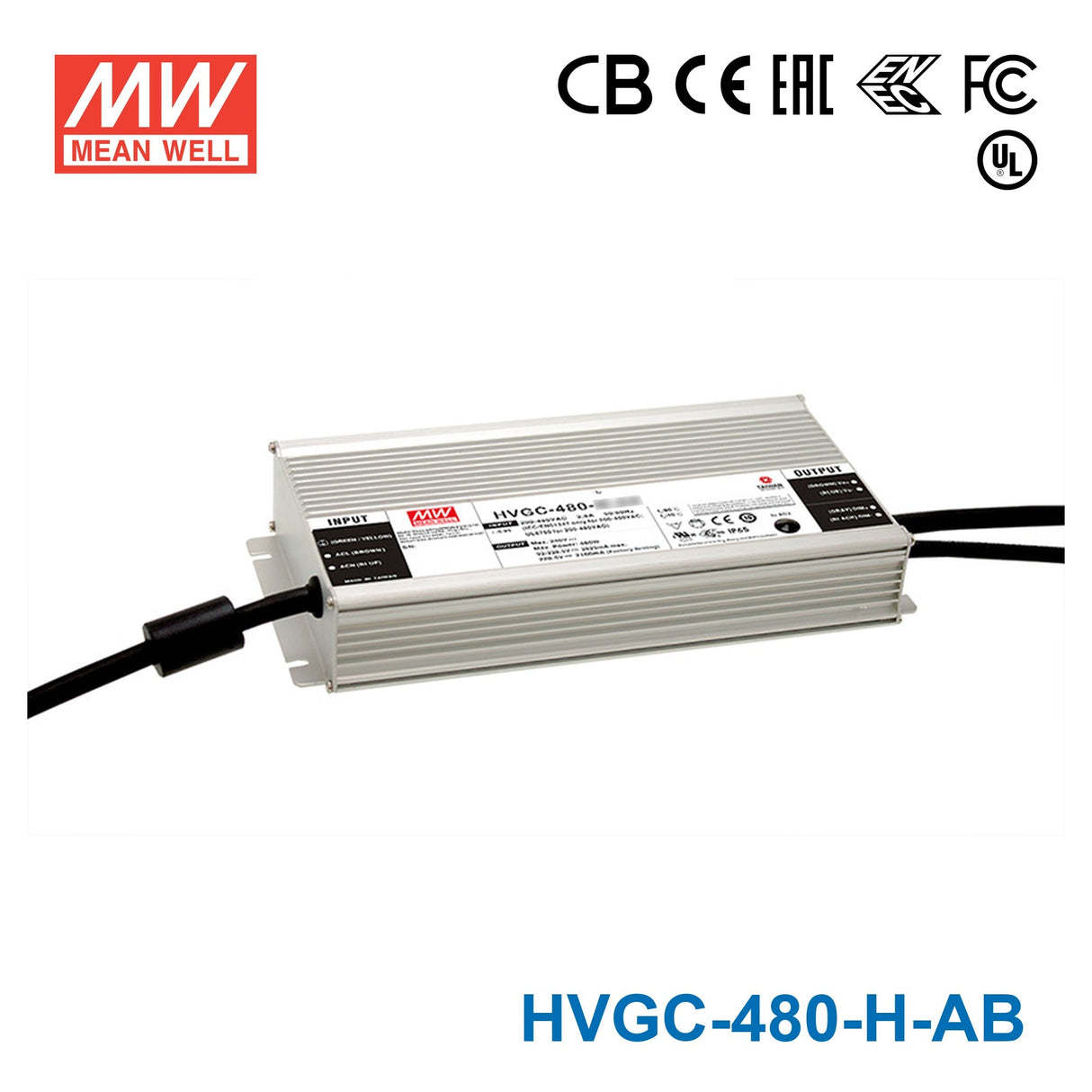

Mean Well HVGC-480-H-AB Power Supply 480W 2800mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-480-H-AB Power Supply 480W 2800mA - Adjustable and D...
The HVGC-480-H is a 480W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating480 Watt
-
Output Voltage180 Volt
-
Rated Current2.8 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-480-H-AB for high-current LED downlights?
This driver is intended for constant current LED downlights that require 2800mA and operate within the 68-171V CC range. With 480W available, it fits high-power fixtures better than lower-output drivers. It should not be used where the fixture expects constant voltage power.
Is the HVGC-480-H-AB a good match for LED signage modules with higher drive current?
It can be suitable for signage or display LED modules designed for 2800mA constant current operation and a total forward voltage inside 68-171V. The 480W rating supports larger loads than the smaller HVGC models. Because it is IP65 water-resistant, it is better suited to outdoor or damp locations than indoor-only drivers.
Can this model power a compact high-output LED array?
Yes, it is aimed at constant current LED arrays that need a relatively high 2800mA drive current rather than a very high output voltage. Its 68-171V CC range makes it more suitable for lower-voltage, higher-current arrays than the HVGC-480-L-AB. The array still needs to stay within the 480W power limit.
How do I check LED compatibility with the HVGC-480-H-AB?
Your LED load should be specified for 2800mA constant current, and the total LED forward voltage must fall within the 68-171V constant current range. The exact number of LEDs depends on the forward voltage of each LED, so it cannot be reduced to one fixed count. This is a constant current driver, not a constant voltage supply.
What is the difference between the HVGC-480-H-AB, HVGC-480-M-AB, and HVGC-480-L-AB?
All three models are 480W drivers in the same series, but they use different current and voltage ranges. The HVGC-480-H-AB is 2800mA with a 68-171V CC range, the HVGC-480-M-AB is 2100mA with a 92-228V CC range, and the HVGC-480-L-AB is 1400mA with a 137-343V CC range. The choice comes down to the current your LEDs require and the total forward voltage of the load.
