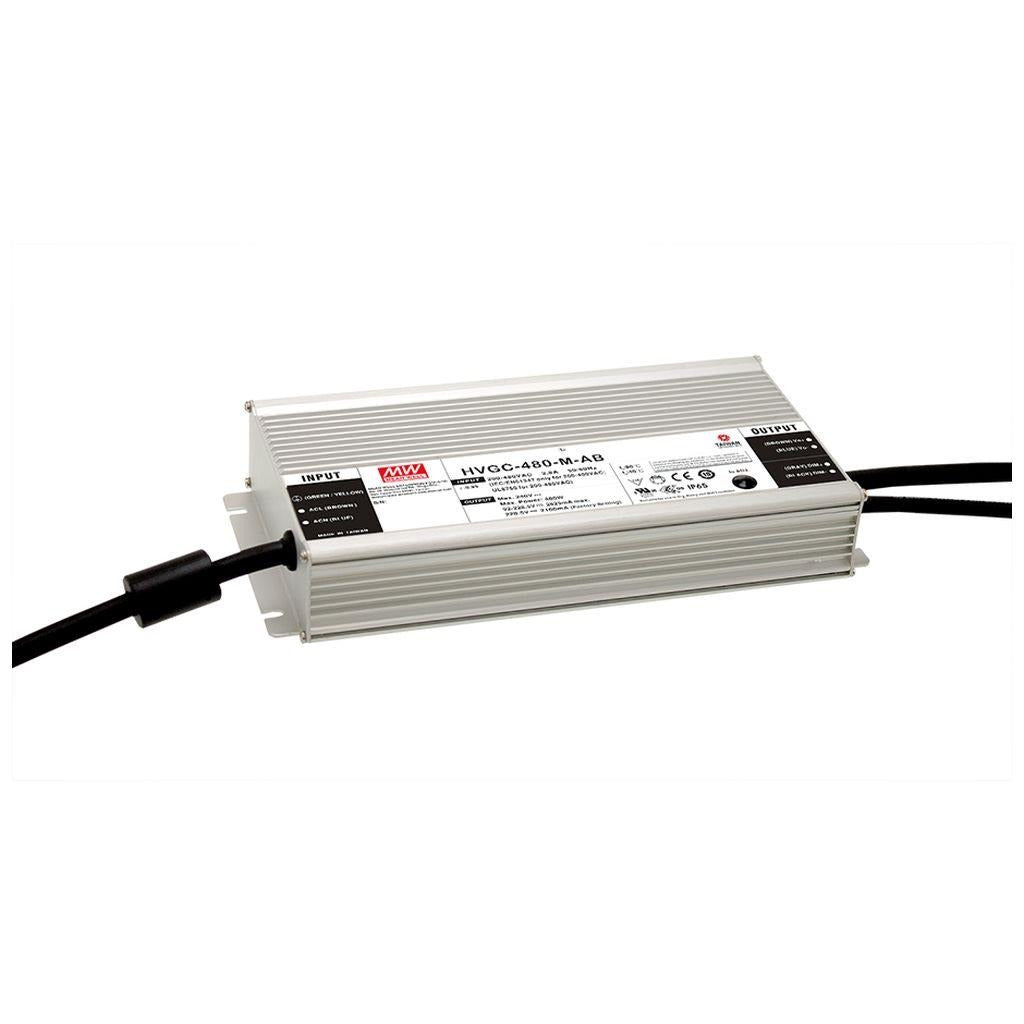

Mean Well HVGC-480-L-AB Power Supply 480W 1400mA - Adjustable and Dimmable

Name: Mean Well HVGC-480-L-AB Power Supply 480W 1400mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HVGC-480-L-AB
Price: 176.9 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-480-L-AB

$176.90 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVGC-480-L-AB is the model of this series: rated current 1400mA, rated power 480W, typical efficiency 94.5%.

HVGC-480 series is a 480W LED AC/DC driver featuring the constant power mode and high voltage output. HVGC-480 operates from 180～528VAC and offers models with different rated current ranging between 1400mA and 3500mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-480 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Power mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Typical lifet ime>50000 hours
5 years warranty

Specifications

HVGC-480-L-ABSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 480W
CONSTANT CURRENT REGION^Note.2: 137 ~ 343V
FULL POWER CURRENT RANGE: 1400~1750mA
OPEN CIRCUIT VOLTAGE (max.): 350V
CURRENT ADJ. RANGE(Typ.): 700~1750mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 500ms/230VAC, 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98 / 230VAC, PF≧0.98 / 277VAC, PF≧0.97 / 347VAC, PF≧0.96 / 400VAC, PF≧0.95 / 480VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% at 230VAC/277VAC/347VAC/400VAC/480VAC input (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94.5%
AC CURRENT (Typ.): 1.52A / 347VAC 1.11A / 480VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=1100μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 351 ~ 381V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 (type”HL”), CSA C22.2 No. 250.13-14, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3, FCC Part 15 class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 932.9K hrs min. Telcordia SR-332(Bellcore) ; 74K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 262*125*43.8mm (L*W*H)
PACKING: 2.72Kg;4pcs/11.45Kg/0.55CUFT

Certifications & ratings

Type: HL

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.
12. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVGC-480-L-AB BLOCK DIAGRAM — BLOCK DIAGRAM

HVGC-480-L-AB DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

HVGC-480-L-AB DIMMING OPERATION — DIMMING OPERATION

HVGC-480-L-AB H V G C - 4 8 0 series — H V G C - 4 8 0 series

HVGC-480-L-AB OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HVGC-480-L-AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVGC-480-L-AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVGC-480-L-AB LIFETIME(Kh) — LIFETIME(Kh)

HVGC-480-L-AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Harbor lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates7

Mean Well HVGC-480-ENEC Certificate PDF Download

Mean Well HVGC-480-FCC Certificate PDF Download

Mean Well HVGC-480-CB Certificate PDF Download

Mean Well HVGC-480-EMC Certificate PDF Download

Mean Well HVGC-480-UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HVGC-480-L Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVGC-480-L-AB for LED downlights that need a long series string?

Yes, this model is suited to constant current LED downlights that require 1400mA and a higher total forward voltage within 137-343V. That higher CC range makes it a better fit for longer series strings than lower-voltage versions in the same family. The total load also needs to stay within 480W.

Is the HVGC-480-L-AB suitable for outdoor LED signage modules?

It can be used for signage or architectural LED modules when the load is designed for 1400mA constant current and falls within the 137-343V CC range. The series carries an IP65 or IP67 water-resistant rating; follow MEAN WELL's IP waterproof installation cautions in the user manual. It is not intended for constant voltage signage products.

Can this driver run a high-voltage small LED array?

Yes, the HVGC-480-L-AB is designed for constant current arrays that need 1400mA at a comparatively high voltage range of 137-343V. That makes it appropriate for arrays built from more series-connected LEDs rather than short low-voltage strings. The driver power rating is 480W.

How do I verify LED compatibility with the HVGC-480-L-AB?

The LED load must be rated for 1400mA constant current, and its combined forward voltage must stay within the 137-343V constant current range. The number of LEDs depends on the forward voltage of each LED, so there is no single universal LED count. This is a constant current driver, not a constant voltage power supply.

Can the HVGC-480-L-AB handle demanding environmental conditions?

It is built for challenging conditions with an IP65 or IP67 water-resistant rating and a working case temperature (Tcase) range of -40°C to +90°C, with load derating per the output load vs temperature curve. The wide 180-528VAC input range also supports use across varied AC supply conditions. Working humidity is 20-95% RH non-condensing.
