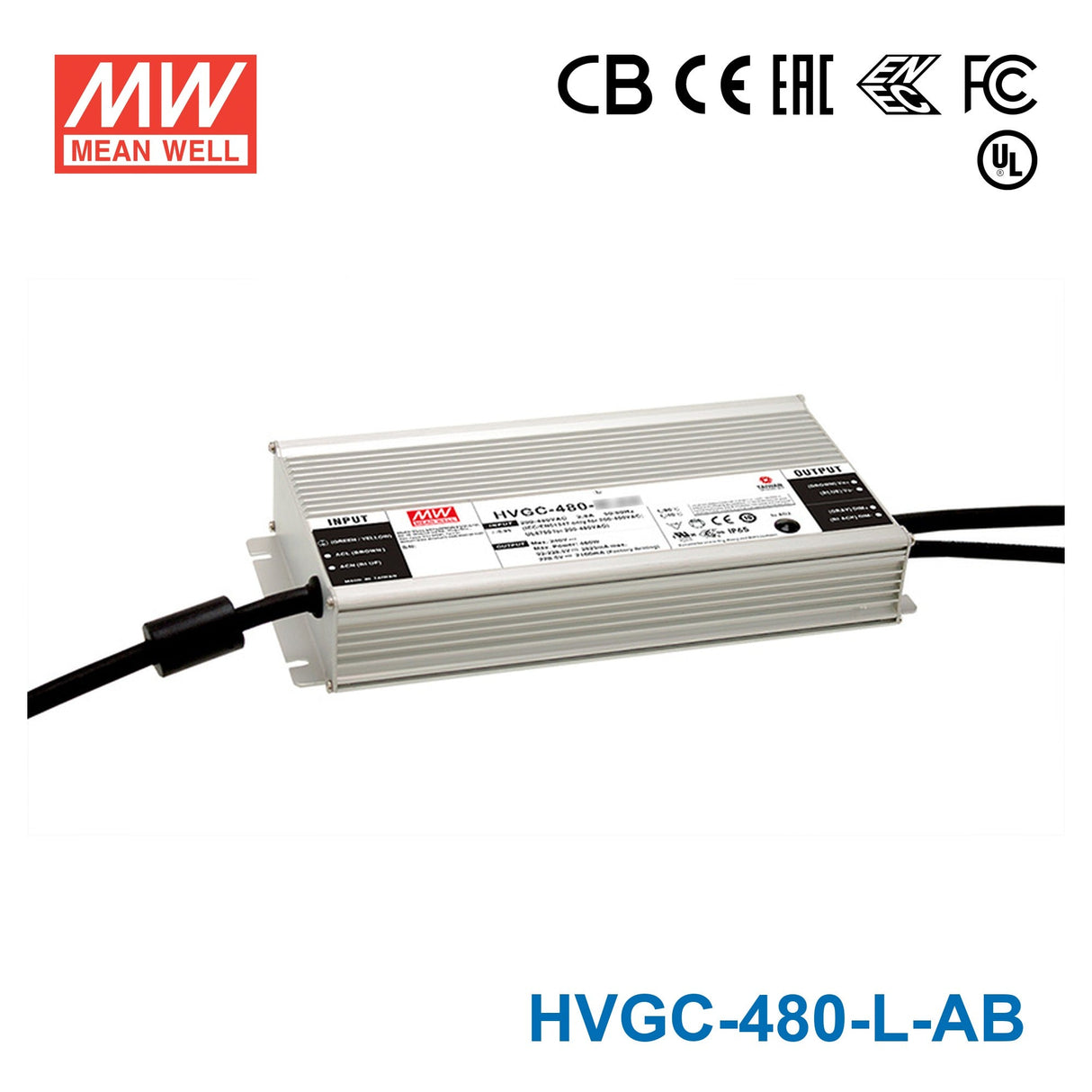

Mean Well HVGC-480-L-AB Power Supply 480W 1400mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-480-L-AB Power Supply 480W 1400mA - Adjustable and D...
The HVGC-480-L is a 480W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating480 Watt
-
Output Voltage350 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-480-L-AB for LED downlights that need a long series string?
Yes, this model is suited to constant current LED downlights that require 1400mA and a higher total forward voltage within 137-343V. That higher CC range makes it a better fit for longer series strings than lower-voltage versions in the same family. The total load also needs to stay within 480W.
Is the HVGC-480-L-AB suitable for outdoor LED signage modules?
It can be used for signage or architectural LED modules when the load is designed for 1400mA constant current and falls within the 137-343V CC range. The IP65 water-resistant housing supports outdoor and damp-area use. It is not intended for constant voltage signage products.
Can this driver run a high-voltage small LED array?
Yes, the HVGC-480-L-AB is designed for constant current arrays that need 1400mA at a comparatively high voltage range of 137-343V. That makes it appropriate for arrays built from more series-connected LEDs rather than short low-voltage strings. The driver power rating is 480W.
How do I verify LED compatibility with the HVGC-480-L-AB?
The LED load must be rated for 1400mA constant current, and its combined forward voltage must stay within the 137-343V constant current range. The number of LEDs depends on the forward voltage of each LED, so there is no single universal LED count. This is a constant current driver, not a constant voltage power supply.
Can the HVGC-480-L-AB handle demanding environmental conditions?
It is built for challenging conditions with an IP65 water-resistant rating and an operating temperature range of -40°C to +90°C. The wide 180-528VAC input range also supports use across varied AC supply conditions. Its aluminium casing is intended for commercial and industrial LED applications.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HVGC-480 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HVGC-480-M-AB Power Supply 480W 2100mA - Adjustable and Dimmable | 480W | 240V | 2.1A | IP65 | $176.63 | View |
| Mean Well HVGC-480-H-AB Power Supply 480W 2800mA - Adjustable and Dimmable | 480W | 180V | 2.8A | IP65 | $176.63 | View |
