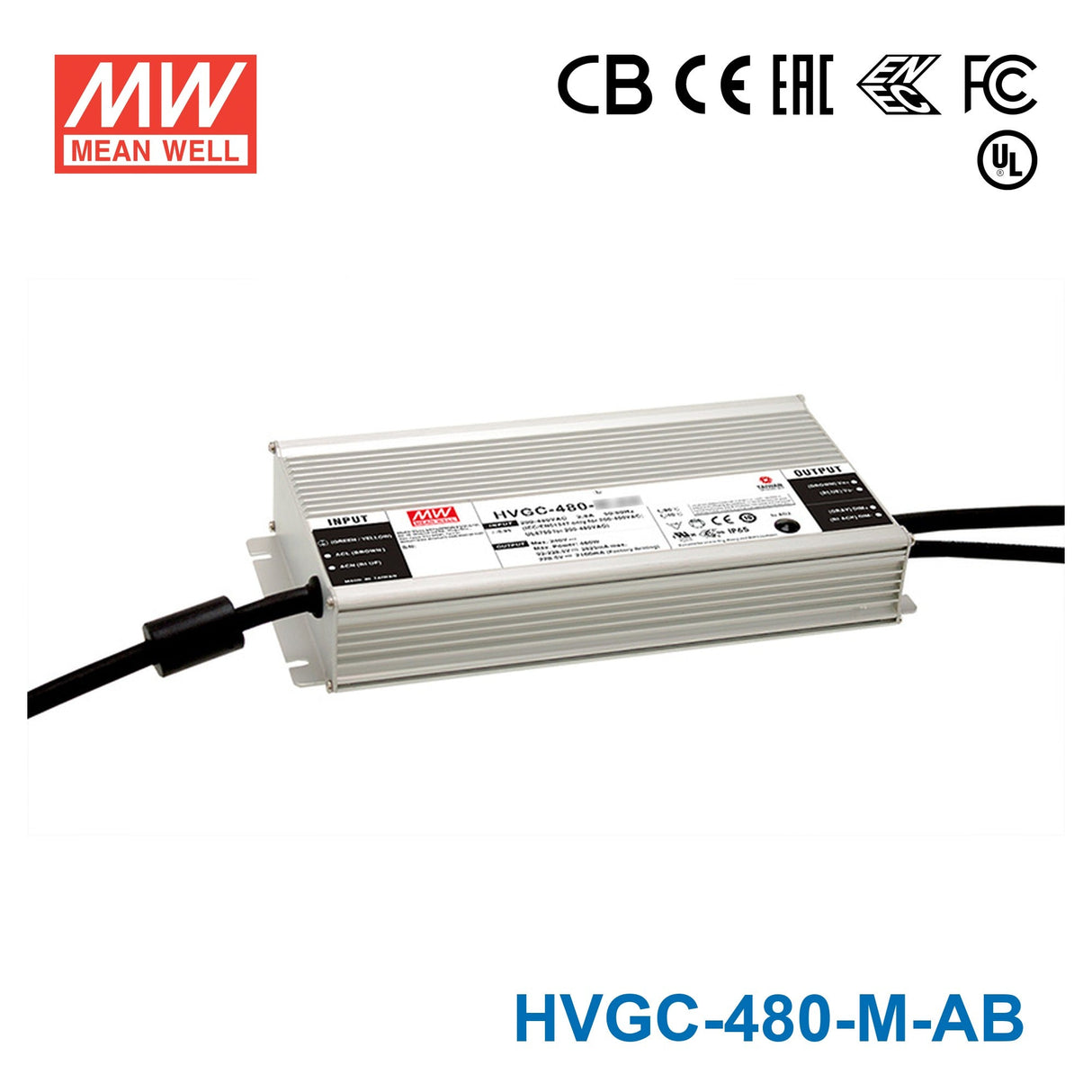

Mean Well HVGC-480-M-AB Power Supply 480W 2100mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-480-M-AB Power Supply 480W 2100mA - Adjustable and D...
The HVGC-480-M is a 480W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating480 Watt
-
Output Voltage240 Volt
-
Rated Current2.1 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-480-M-AB for medium-voltage LED downlights?
It is intended for constant current LED downlights that need 2100mA and operate within the 92-228V CC range. This places it between the higher-current HVGC-480-H-AB and the higher-voltage HVGC-480-L-AB. The fixture load also needs to stay within the 480W rating.
Is the HVGC-480-M-AB suitable for LED signage modules or display lighting?
Yes, it can fit signage modules or similar LED assemblies that are built for 2100mA constant current and have a total forward voltage within 92-228V. The IP65 water-resistant enclosure supports use in damp or outdoor locations. It should not be used for constant voltage signage systems.
Can this driver power a small LED array with more current than a 1400mA driver?
Yes, the HVGC-480-M-AB is designed for constant current arrays that need 2100mA, which is higher current than the 1400mA HVGC-480-L-AB. Its 92-228V range suits medium-voltage arrays rather than the lowest-voltage or highest-voltage builds in the series. The driver is rated at 480W.
How do I know whether my LED load matches the HVGC-480-M-AB?
Your LEDs should require 2100mA constant current, and the combined forward voltage must fall within the 92-228V constant current range. The actual number of LEDs depends on the forward voltage of each LED, so there is no fixed LED count. Because this is a constant current model, it is not interchangeable with a constant voltage supply.
How does the HVGC-480-M-AB compare with the other 480W AB versions?
The three 480W AB models differ by output current and CC voltage range. The HVGC-480-H-AB is 2800mA with a 68-171V range, the HVGC-480-M-AB is 2100mA with a 92-228V range, and the HVGC-480-L-AB is 1400mA with a 137-343V range. They are selected by matching the LED current requirement and total forward voltage.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HVGC-480 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HVGC-480-L-AB Power Supply 480W 1400mA - Adjustable and Dimmable | 480W | 350V | 1.4A | IP65 | $176.90 | View |
| Mean Well HVGC-480-H-AB Power Supply 480W 2800mA - Adjustable and Dimmable | 480W | 180V | 2.8A | IP65 | $176.63 | View |
