Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

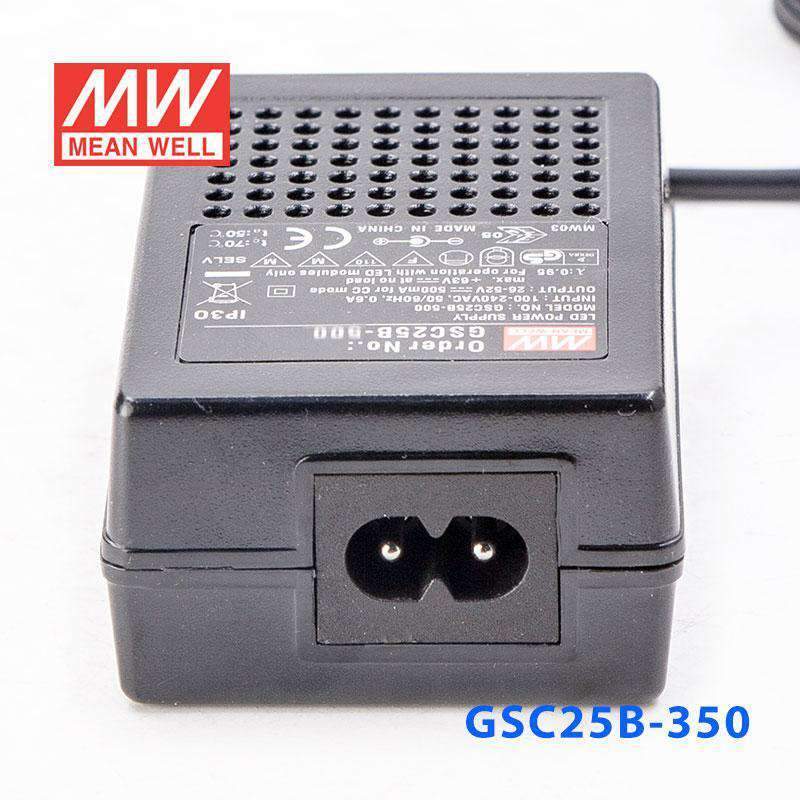

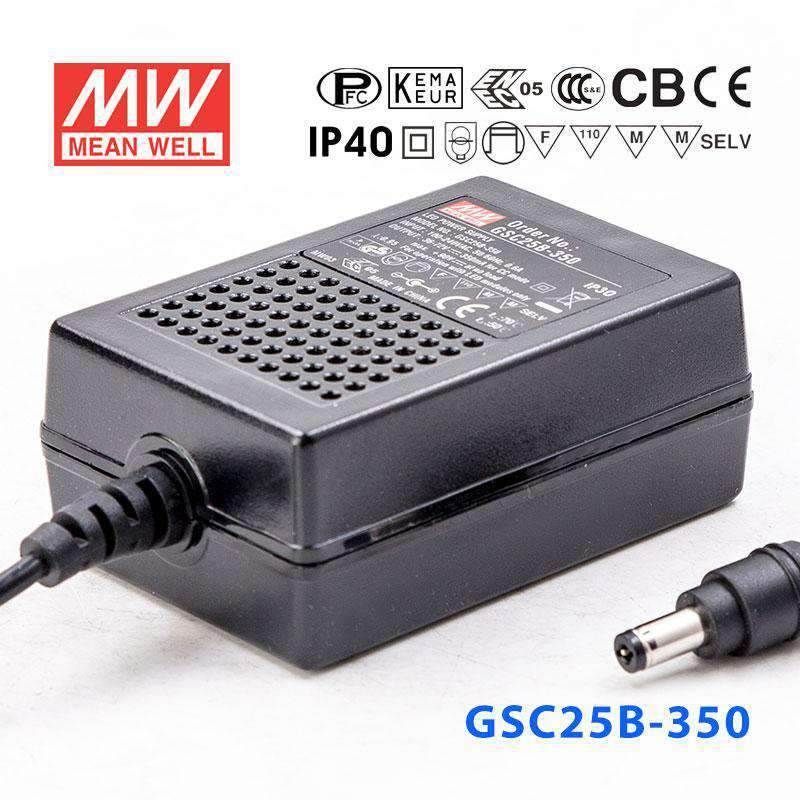

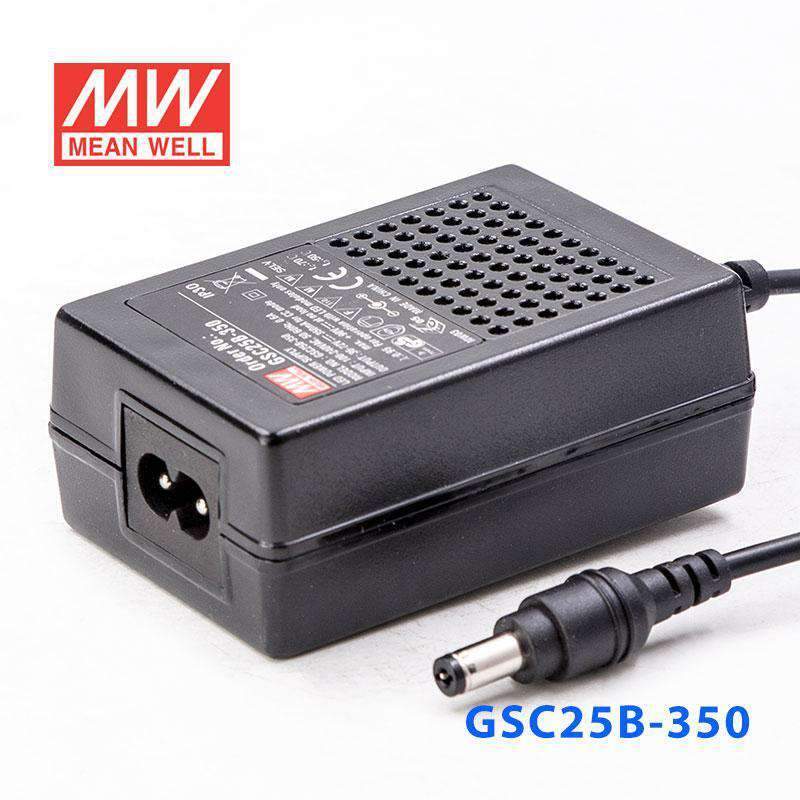

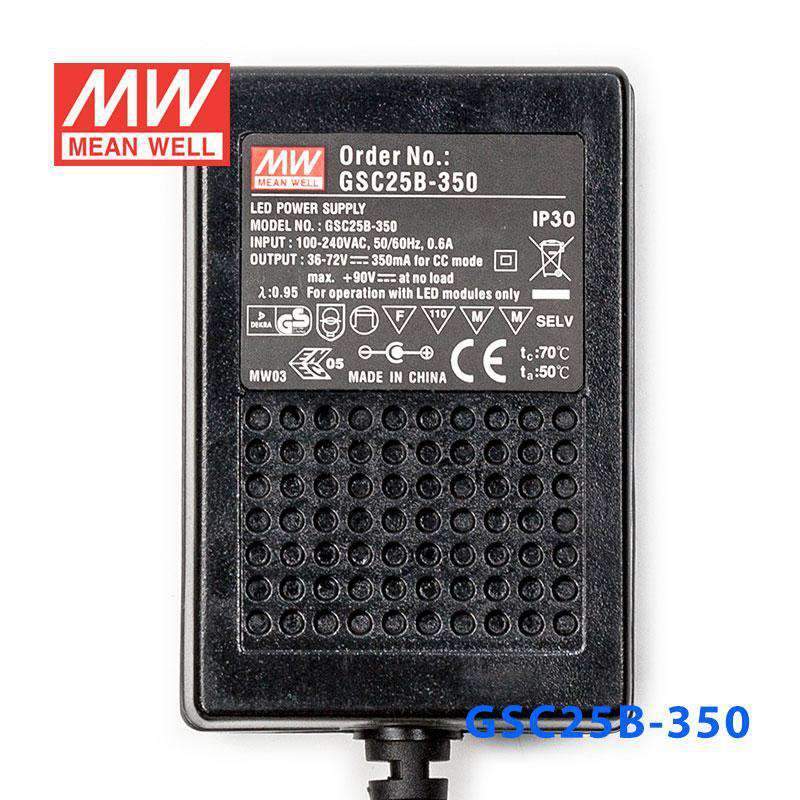

Mean Well GSC25B-350 Power Supply 25W 350A
$9.23 USD
Unit price /
Unavailable
-30 ~ +50°C (Refer to "Derating Curve")
Key Features
- ✓✓Universal AC input / Full range (up to 277VAC)
- ✓✓2 pole AC inlet IEC320-C8
- ✓✓Built-in active PFC function
- ✓✓Constant current design
- ✓✓Protections: Short circuit
- ✓✓Cooling by free air convection
- ✓✓Fully isolated plastic case
- ✓✓Class power unit, no FG
- ✓✓No load power consumption<0.15W
- ✓✓Low cost, high reliability
- ✓✓100% full load burn-in test
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesGSC Series
-
Power Rating25.2 Watt
-
Output Voltage72 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~277V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.47 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GSC25 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GSC25B-700 Power Supply 25W 700A | 25.2W | 36V | 0.7A | Indoor | $26.74 | View |
| Mean Well GSC25B-1050 Single Output LED Power Supply | 25.2W | 35V | 1.05A | Indoor | $9.23 | View |
