Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

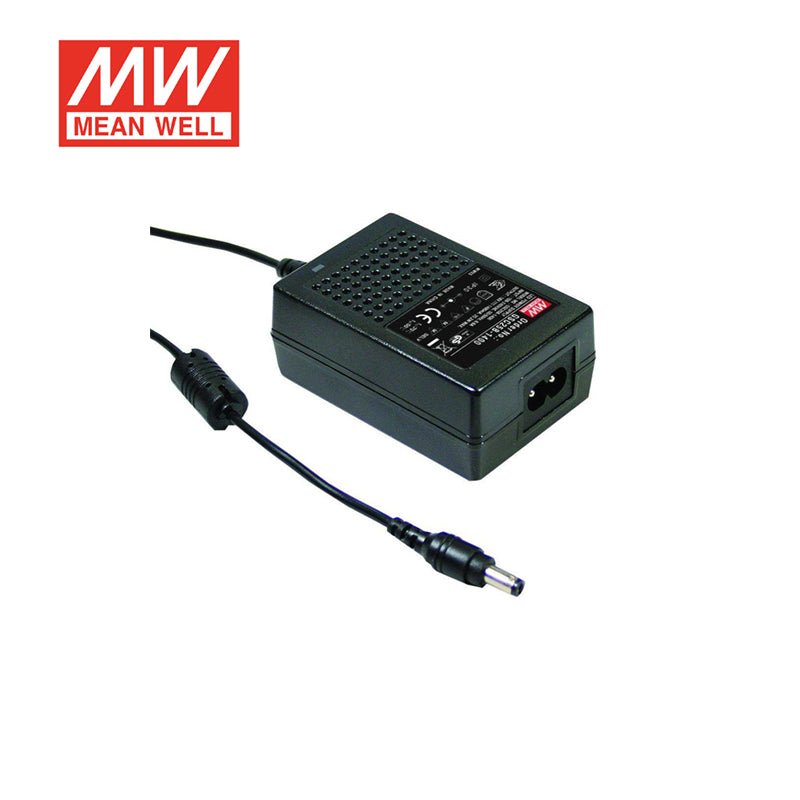

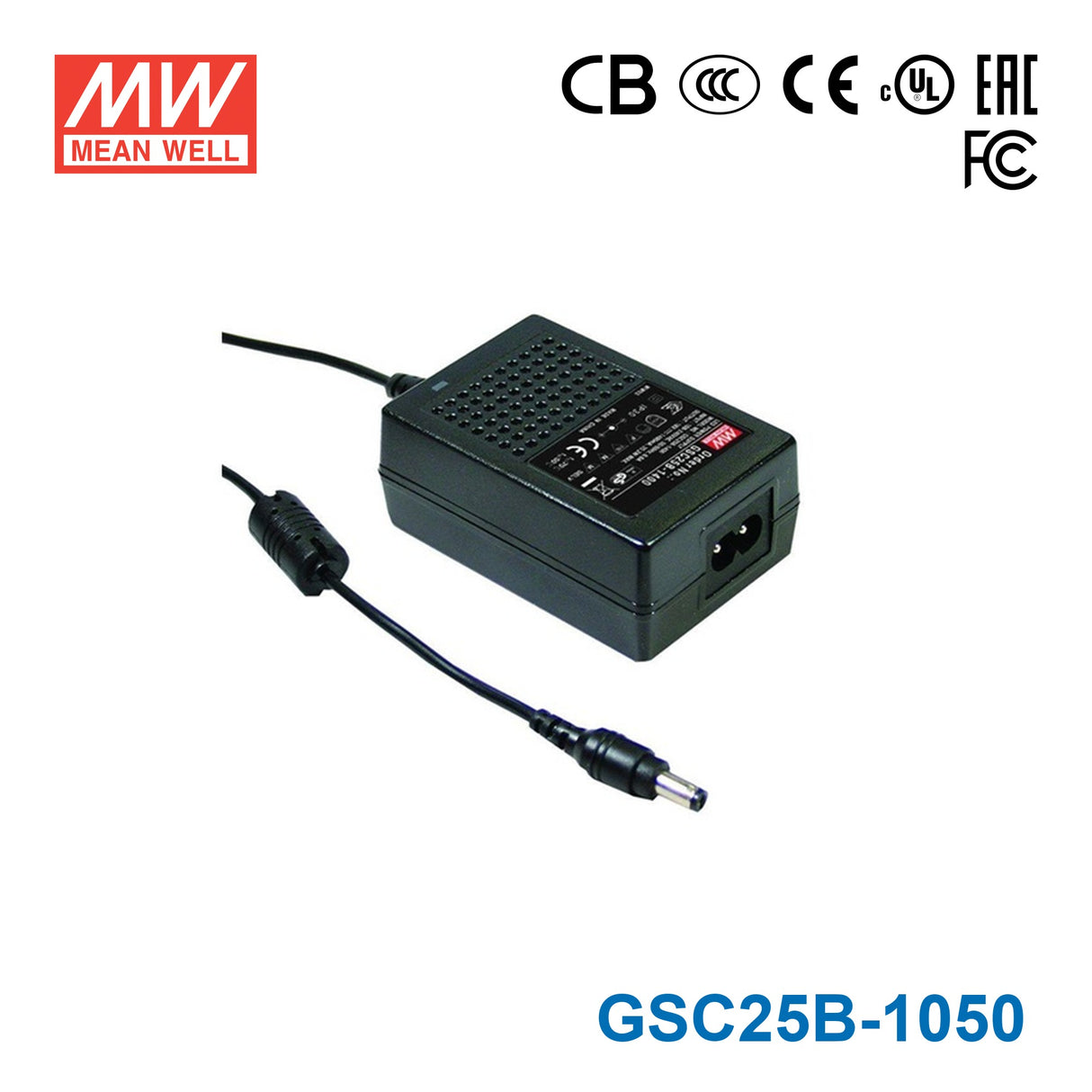

Mean Well GSC-25B-1050 Single Output LED Power Supply
$9.23 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range (up to 227VAC) |
| 2 pole AC inlet IEC320-C8 |
| Built-in active PFC function |
| constant current design |
| Protection: Short circuit |
| Cooling by free air convection |
| Fully isolated plastic case |
| Class II power unit, no FG |
| No load power consumption<0.15W |
| Low cost, high reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| Short Circuit protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -30 ~ +50 ℃ (Refer to "Derating Curve") |
| Safety standards | Dekra GS/ENEC EN61347-1, EN61347-2-13 listed, EN62384, GB19510.1, GB19510.14, approved |
| Dimension (LxWxH) (mm) | 79*54*33mm (L*W*H) |
| Packing | 211g ; 60pcs / 13.7kg / CARTON |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSC Series
-
Power Rating25.2 Watt
-
Output Voltage35 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~277V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,EAC,FCC
-
Operating Temperature-30°C~50°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.46 lb
