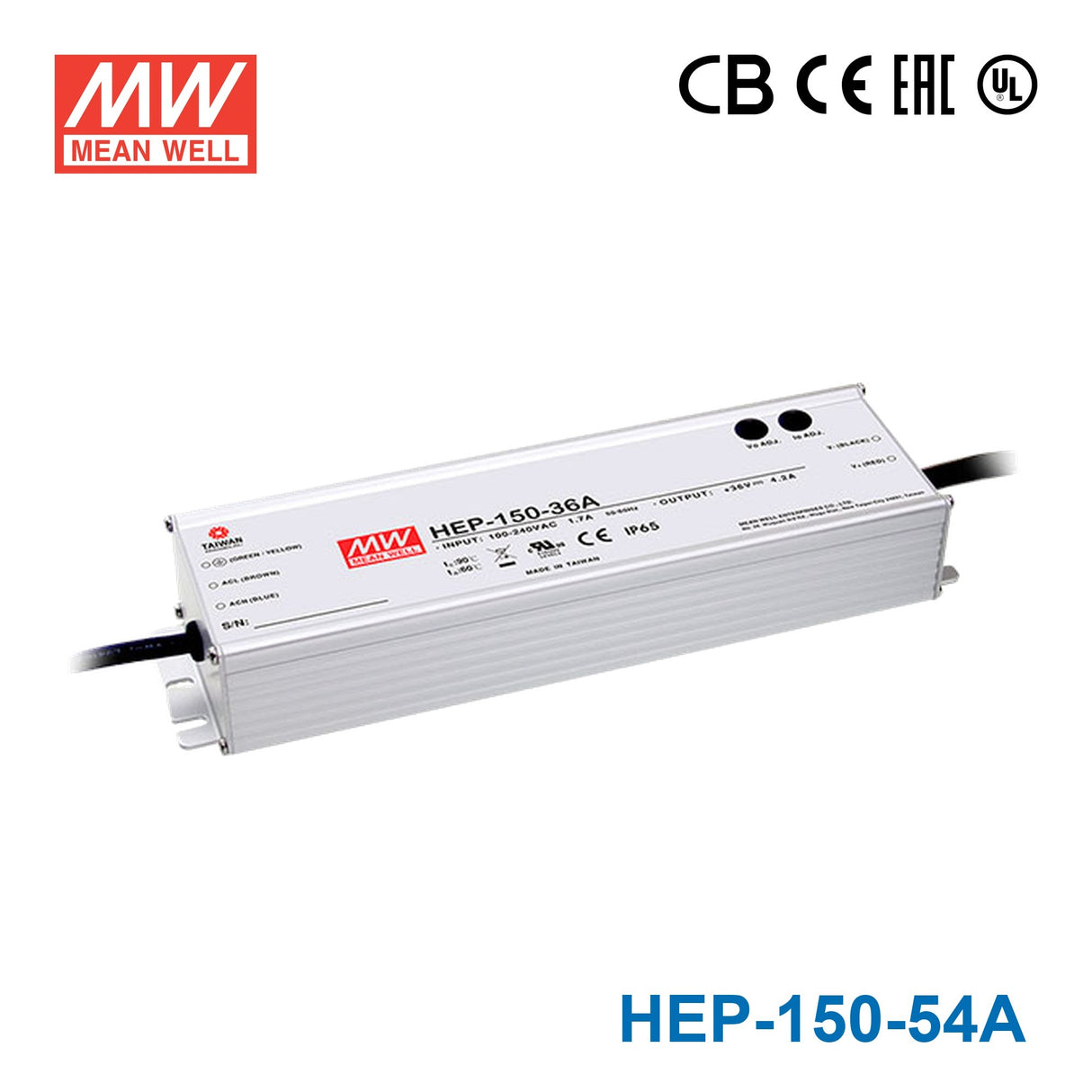

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HEP-150-54A Power Supply 151.2W 54V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-150-54A Power Supply 151.2W 54V
The HEP-150 is a 150W Mean Well DIN rail power converter with a 228mm profile (input range: 90~305VAC, operating temperature: -60~+80°C).
Key Features
- ✓ 228mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -60~+80°C
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.6,9 UL62368-1, IECIEN62368-1, IP65 (or IP68 for HEP-150 Blank type), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating151.2 Watt
-
Output Voltage54 Volt
-
Rated Current2.8 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HEP-150-54A for a 54V industrial control or automation load?
Yes, this model is a constant-voltage 54V power supply rated for 151.2W and 2.8A. It is suited to equipment that specifically requires a 54V DC source within that power and current range.
Is the HEP-150-54A a good fit for embedded or edge equipment in harsh industrial environments?
It is designed for harsh environments with a fanless design, a rugged metal case, and 10G vibration resistance. The operating range of -55°C to +70°C also makes it suitable for embedded or control equipment exposed to very low or very high ambient temperatures.
Can this power supply be used for outdoor 54V equipment cabinets or enclosures?
It can be used in outdoor applications where IP65 water resistance is appropriate. IP65 supports resistance to water ingress and dust, and the unit is built for -55°C to +70°C operation.
Would the HEP-150-54A work for a 54V automation device that runs continuously?
It is intended for continuous-duty use where a stable 54V constant-voltage output is required, up to 151.2W and 2.8A. The fanless design and efficiency up to 96% support use in enclosed industrial equipment where lower heat and lower maintenance are important.
How does the HEP-150-54A compare with other 54V models in the HEP series?
Within the 54V HEP range, the HEP-100-54 and HEP-100-54A are 95.58W at 1.77A, the HEP-150-54 is 151.2W at 2.8A, the HEP-185-54 and HEP-185-54A are 186.3W at 3.45A, the HEP-240-54 and HEP-240-54A are 240.3W at 4.45A, the HEP-320-54 and HEP-320-54A are 321.3W at 5.95A, the HEP-480-54 and HEP-480-54A are 480.6W at 8.9A, and the HEP-600-54 and HEP-600-54A are 604.8W at 11.2A. The HEP-600C-48 is also close in voltage at 57.6V, rated for 600W and 10.5A.
