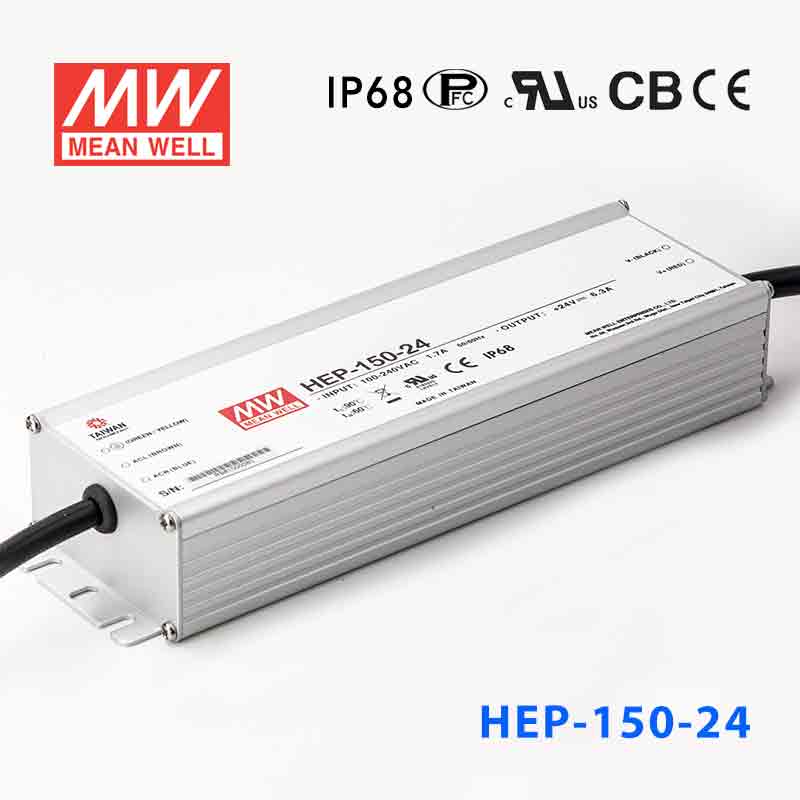

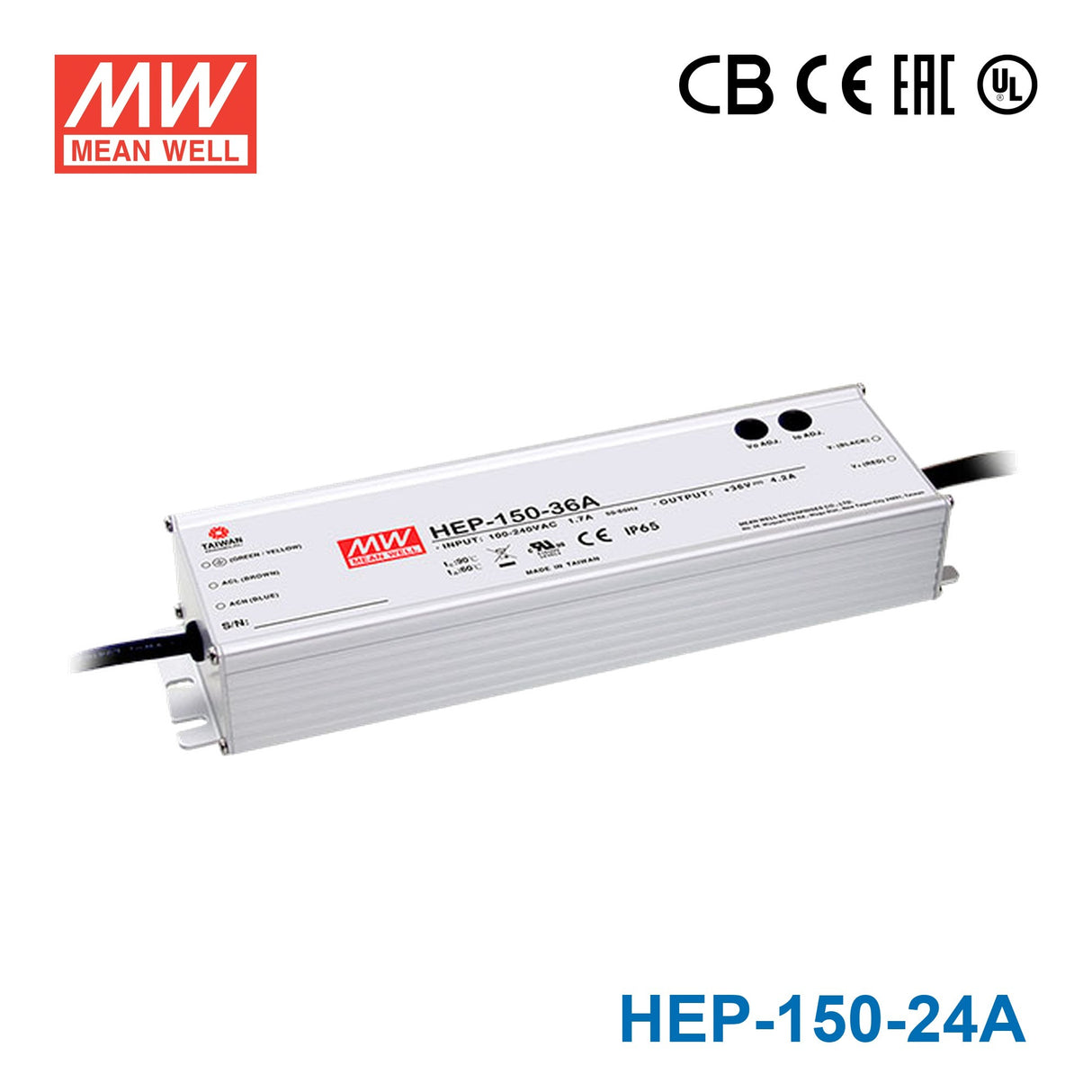

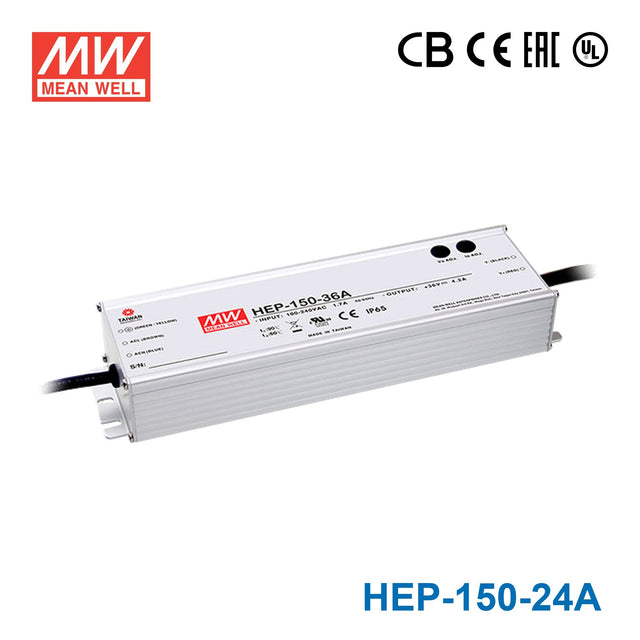

Mean Well HEP-150-24A Power Supply 151.2W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-150-24A Power Supply 151.2W 24V
The HEP-150 is a 150W Mean Well DIN rail power converter with a 228mm profile (input range: 90~305VAC, operating temperature: -60~+80°C).
Key Features
- ✓ 228mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -60~+80°C
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.6,9 UL62368-1, IECIEN62368-1, IP65 (or IP68 for HEP-150 Blank type), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can the HEP-150-24A be used for 24V industrial control panels?
Yes, if the panel or subsystem requires constant voltage 24V and stays within 151.2W and 6.3A. The 90-305VAC input, fanless design, and -55°C to +70°C operating range suit industrial control applications.
Is this a good choice for 24V field devices or automation hardware in rough environments?
It can be used for 24V field or automation hardware that needs up to 6.3A from a constant voltage supply. The rugged metal case, 10G vibration resistance, and IP65 water-resistant design support use in tougher operating conditions.
Can I use the HEP-150-24A for 24V LED lighting or signage systems?
Yes, for constant voltage 24V loads that do not exceed 151.2W or 6.3A. Its sealed, fanless construction makes it more suitable for dust-prone or damp areas than a ventilated indoor power supply.
Is the HEP-150-24A suitable for outdoor service?
It is suitable for many outdoor and industrial locations because it is IP65 water-resistant and rated for -55°C to +70°C operation. IP65 is intended for exposure to dust and water, but it is not the same protection level as IP68.
How does the HEP-150-24A compare with the rest of the 150W HEP family?
HEP-150-24A and HEP-150-24 are the 24V members of the family, both rated at 151.2W and 6.3A. The other 150-size options are HEP-150-12 and HEP-150-12A at 150W, 12V, 12.5A; HEP-150-15 and HEP-150-15A at 150W, 15V, 10A; HEP-150-36 and HEP-150-36A at 151.2W, 36V, 4.2A; HEP-150-48 and HEP-150-48A at 153.6W, 48V, 3.2A; and HEP-150-54 and HEP-150-54A at 151.2W, 54V, 2.8A.
