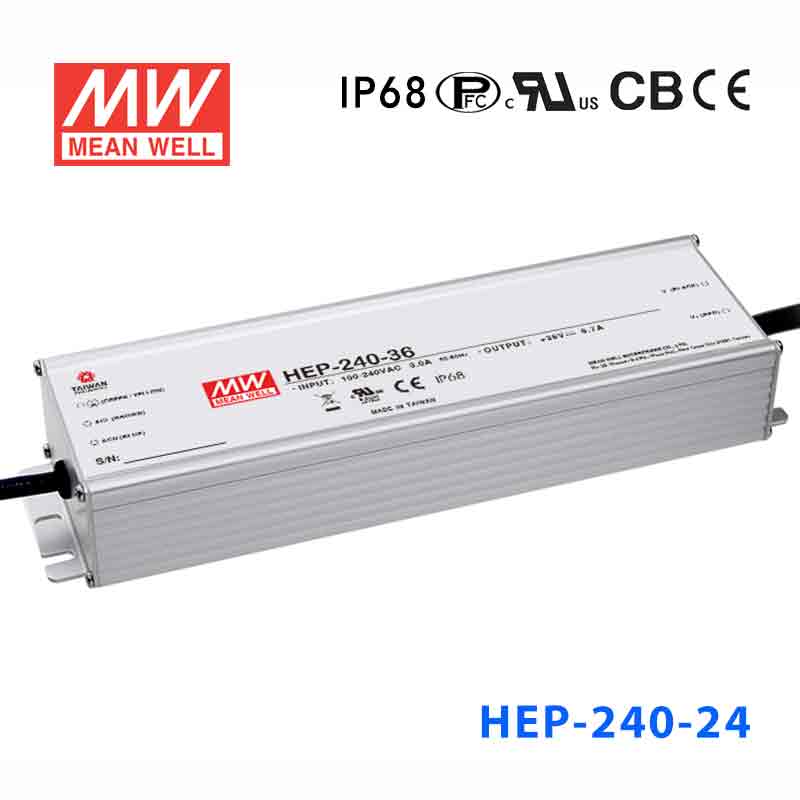

Mean Well HEP-240-24 Power Supply 240W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-240-24 Power Supply 240W 24V
The HEP-240 is a 240W Mean Well power converter (input range: 90~305VAC, operating temperature: -55~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -55~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 UL62368-1 IEC/EN62368-1, , IP65 (or IP68 for HEP-240 Blank-Type) , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
Can I use the HEP-240-24 for 24V PLCs, sensors, or automation loads?
Yes, this is a constant-voltage 24V power supply rated for 10A and 240W, which fits many 24V automation and control systems. It is intended for loads that require a stable 24V DC output and stay within those current and power limits.
Is the HEP-240-24 suitable for 24V industrial networking or embedded control systems?
It can support 24V industrial electronics, embedded controllers, and network-related equipment that are designed for constant-voltage 24V input and draw up to 10A. The fanless design is also helpful in enclosed cabinets where reducing moving parts is important.
Can this model be used for outdoor 24V equipment or harsh-environment installations?
The HEP-240-24 carries an IP68 rating, so it is built for strong protection against dust and water exposure in harsh environments. Its -55°C to +70°C operating temperature range also supports use where ambient conditions are unusually cold or hot.
Would the HEP-240-24 work for 24V LED, control, or DC distribution systems?
It is a fit for 24V constant-voltage systems where the combined load stays within 240W and 10A. That makes it relevant for industrial DC distribution, 24V control assemblies, and other 24V equipment that needs a rugged power source rather than a basic indoor supply.
How does the HEP-240-24 compare with other HEP-240 outputs?
In the HEP-240 series, the 12V models are 192W and 16A, the 15V models are 225W and 15A, the 24V models are 240W and 10A, the 36V models are 241.2W and 6.7A, the 48V models are 240W and 5A, and the 54V models are 240.3W and 4.45A, with each voltage available in both standard and A-suffix versions. This HEP-240-24 is the IP68 24V, 10A option, while HEP-240-24A is the IP65 version with the same electrical rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HEP-240 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-240-48A Power Supply 240W 48V | 240W | 48V | 5A | IP65 | $110.13 | View |
| Mean Well HEP-240-54A Power Supply 240.3W 54V | 240.3W | 54V | 4.45A | IP65 | $110.13 | View |
| Mean Well HEP-240-54 Power Supply 240.3W 54V | 240.3W | 54V | 4.45A | IP68 | $113.11 | View |
| Mean Well HEP-240-48 Power Supply 240W 48V | 240W | 48V | 5A | IP68 | $113.11 | View |
