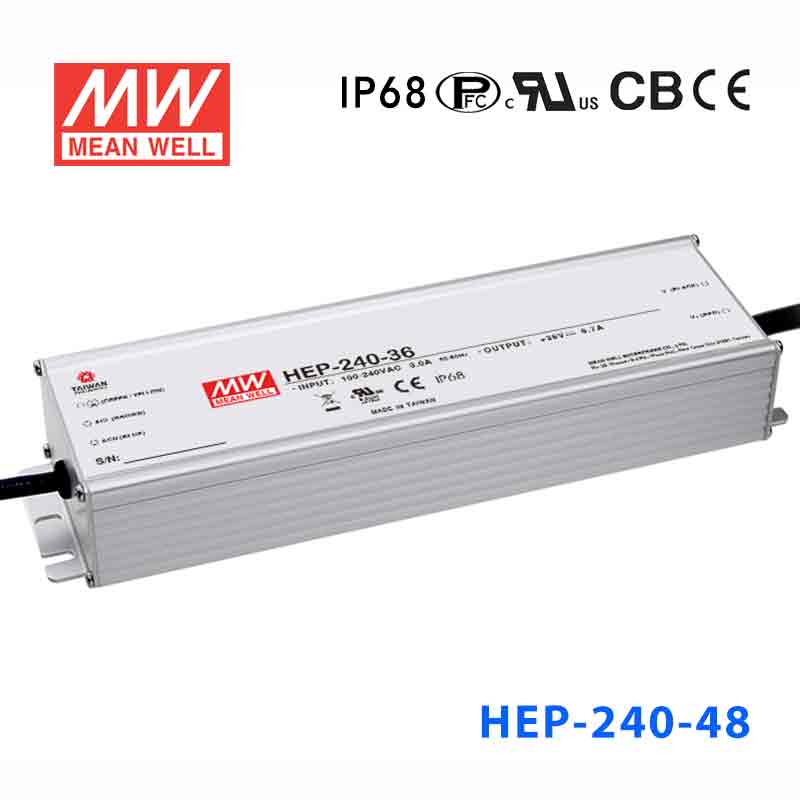

Mean Well HEP-240-48 Power Supply 240W 48V

fanless design, high efficiency up to 96%, rugged metal case with IP65 design(IP68 option available), withstand 10G vibration, suitable for harsh environment
SKU:
HEP-240-48

Model
$113.11 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range
High efficiency up to 93%
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
IP65 design, optional IP68 rated model available
Cooling by free air convection
Meet 6KV surge immunity level
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
Operating altitude up to 5000 meters
6 years warranty



General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 75A at 230VAC
DC adjustment range -10%~+10% rated output voltage (A-Type only)
Current adjustment range 60%~100%
Over current protection 105%~125% constant current limiting, auto-recovery
Over voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature -55~+70ºC (refer to output derating curve)
Safety standards UL62368-1, IEC62368-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EAC TP TC 020
Connection Input SJTW 18AWGx3C(30cm)
Connection Output SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm)
Dimension (LxWxH) (mm) 244.2x 68 x 38.8

Specifications

  • Brand
    Mean Well
  • Series
    HEP Series
  • Power Rating
    240 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    90V~305V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -55°C~70°C
  • Warranty
    6 Year
  • Length
    9.61 in
  • Width
    2.68 in
  • Height
    1.53 in
  • Weight
    2.87 lb
