Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

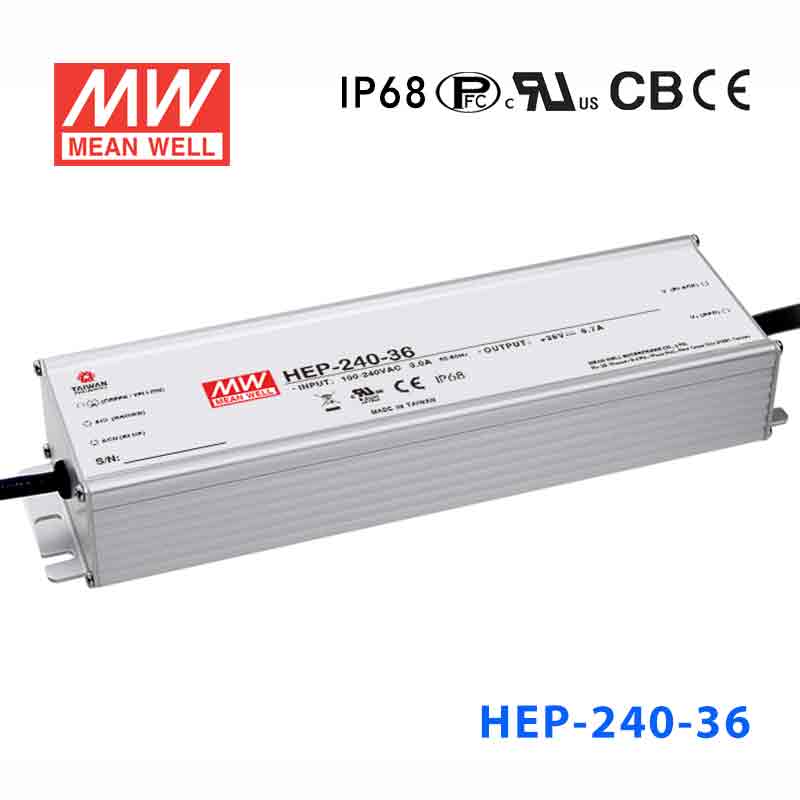

Mean Well HEP-240-36 Power Supply 241.2W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-240-36 Power Supply 241.2W 36V
The HEP-240 is a 240W Mean Well power converter (input range: 90~305VAC, operating temperature: -55~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -55~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 UL62368-1 IEC/EN62368-1, , IP65 (or IP68 for HEP-240 Blank-Type) , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating241.2 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
Can I use the HEP-240-36 for 36V industrial equipment or automation systems?
Yes, this unit provides constant-voltage 36V output at up to 6.7A and 241.2W, so it fits 36V equipment designed for that DC level. It is intended for systems that need a fixed 36V supply rather than constant-current operation.
Is the HEP-240-36 suitable for 36V embedded, motion-related, or control electronics?
It can be used for 36V embedded and control electronics when the total draw stays within 6.7A and 241.2W. The fanless design is useful in sealed or maintenance-sensitive industrial enclosures.
Can this power supply be used outdoors or in severe environmental conditions?
The HEP-240-36 is rated IP68, so it is suited to harsh environments with high dust and water exposure requirements. Its operating temperature range of -55°C to +70°C also supports use in locations with demanding ambient conditions.
Would the HEP-240-36 work for 36V field equipment exposed to vibration?
It can be appropriate for 36V field equipment when the system needs constant voltage and does not exceed 241.2W or 6.7A. The rugged metal case and 10G vibration tolerance are relevant for industrial and mobile-equipment environments where shock and vibration are concerns.
How does the HEP-240-36 compare to the other HEP-240 models?
Across the HEP-240 family, the available outputs are 12V at 192W and 16A, 15V at 225W and 15A, 24V at 240W and 10A, 36V at 241.2W and 6.7A, 48V at 240W and 5A, and 54V at 240.3W and 4.45A, with each voltage also offered in an A-suffix version. This HEP-240-36 is the IP68 36V model, while HEP-240-36A keeps the same 241.2W and 6.7A output in an IP65 version.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HEP-240 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-240-48A Power Supply 240W 48V | 240W | 48V | 5A | IP65 | $110.13 | View |
| Mean Well HEP-240-54A Power Supply 240.3W 54V | 240.3W | 54V | 4.45A | IP65 | $110.13 | View |
| Mean Well HEP-240-54 Power Supply 240.3W 54V | 240.3W | 54V | 4.45A | IP68 | $113.11 | View |
| Mean Well HEP-240-48 Power Supply 240W 48V | 240W | 48V | 5A | IP68 | $113.11 | View |
