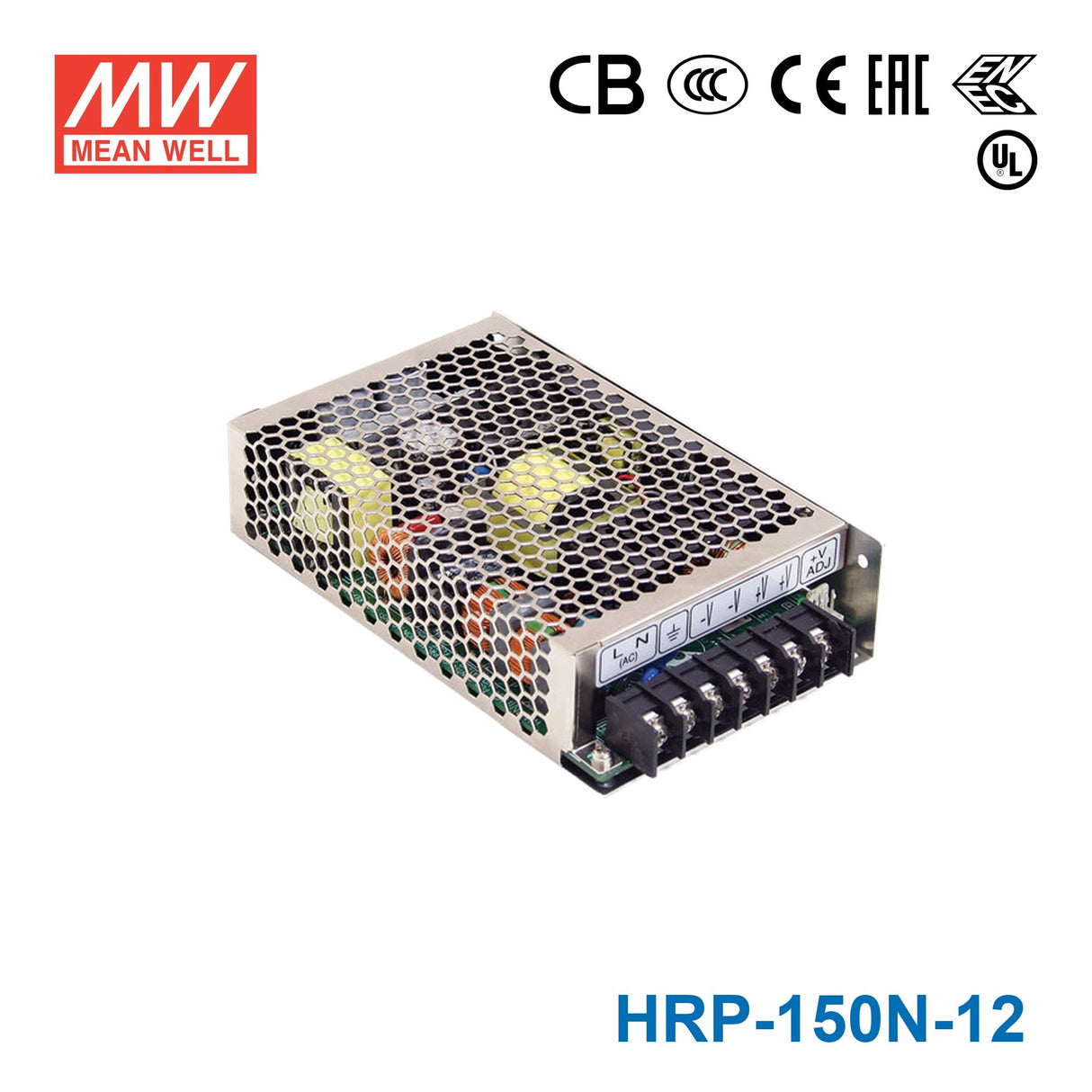

Mean Well HRP-150N-12 High Peak-Power Power Supply 150W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-150N-12 High Peak-Power Power Supply 150W 12V
The HRP-150N is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150N-12 for a 12V PLC, control panel, or industrial electronics load?
Yes, this model provides a constant 12V output rated for 150W and 13A. It is suitable for 12V industrial control, embedded, and automation loads that stay within that output range.
Is the HRP-150N-12 suitable for 12V sensors, relays, and control accessories on the same system?
It can support multiple 12V DC devices as long as the combined demand remains within 13A and 150W. The constant-voltage design is intended for equipment that expects a fixed 12V supply.
Can this model be used for 12V HMI or panel PC power in automation equipment?
It can be used where the HMI, panel PC, or related 12V electronics require a regulated 12V output and the total load does not exceed 13A or 150W. Its 85-264VAC input range is also useful for equipment deployed across different AC mains environments.
Is the HRP-150N-12 appropriate for cold or hot indoor industrial environments?
The listed operating temperature range is -40°C to +70°C, which supports use across a broad temperature span. No IP rating is included in the provided specs, so the product data does not define outdoor exposure or water-resistance performance.
How does the HRP-150N-12 compare with the other HRP-150N voltage versions?
The HRP-150N versions listed here are HRP-150N-12 at 150W, 12V, 13A; HRP-150N-24 at 150W, 24V, 6.5A; HRP-150N-36 at 150W, 36V, 4.3A; and HRP-150N-48 at 150W, 48V, 3.3A. Across these siblings, the power stays at 150W while the output voltage and rated current change by model.
