Mean Well

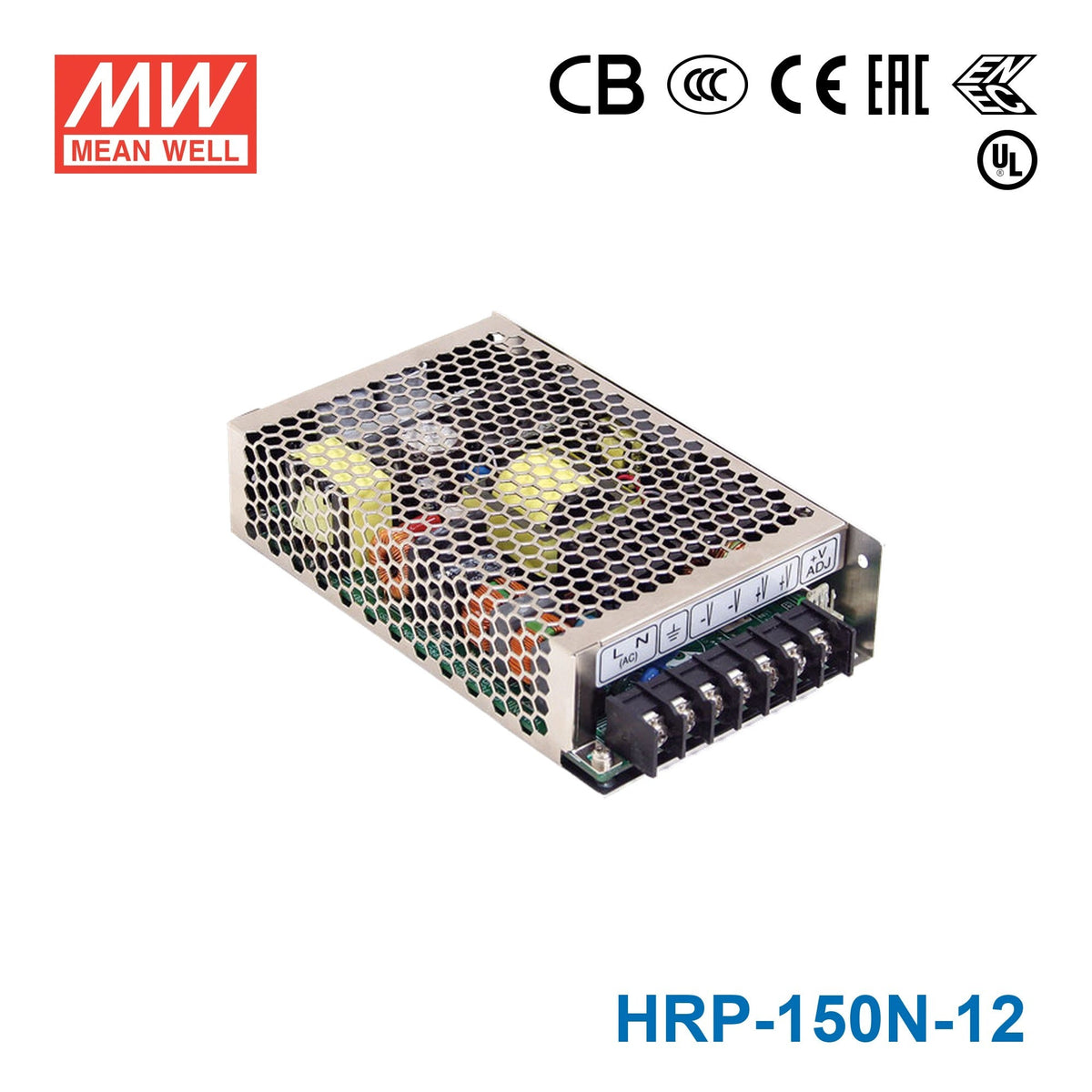

Mean Well HRP-150N-12 High Peak-Power Power Supply 150W 12V

Name: Mean Well HRP-150N-12 High Peak-Power Power Supply 150W 12V
Brand: Mean Well
SKU: HRP-150N-12
Price: 71.91 USD
Availability: InStock

Mean Well HRP-150N-12 High Peak-Power Power Supply 150W 12V

2 units in stock

$71.91 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start; 70A at 230VAC
DC adjustment range	±15% rated output voltage
Overload protection Range	105%~135%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection	115%~145%
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-40~+70°C
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection	7P/9.5mm pitch terminal block with cover
Dimension (LxWxH)	159x97x38
Case No.	901I
