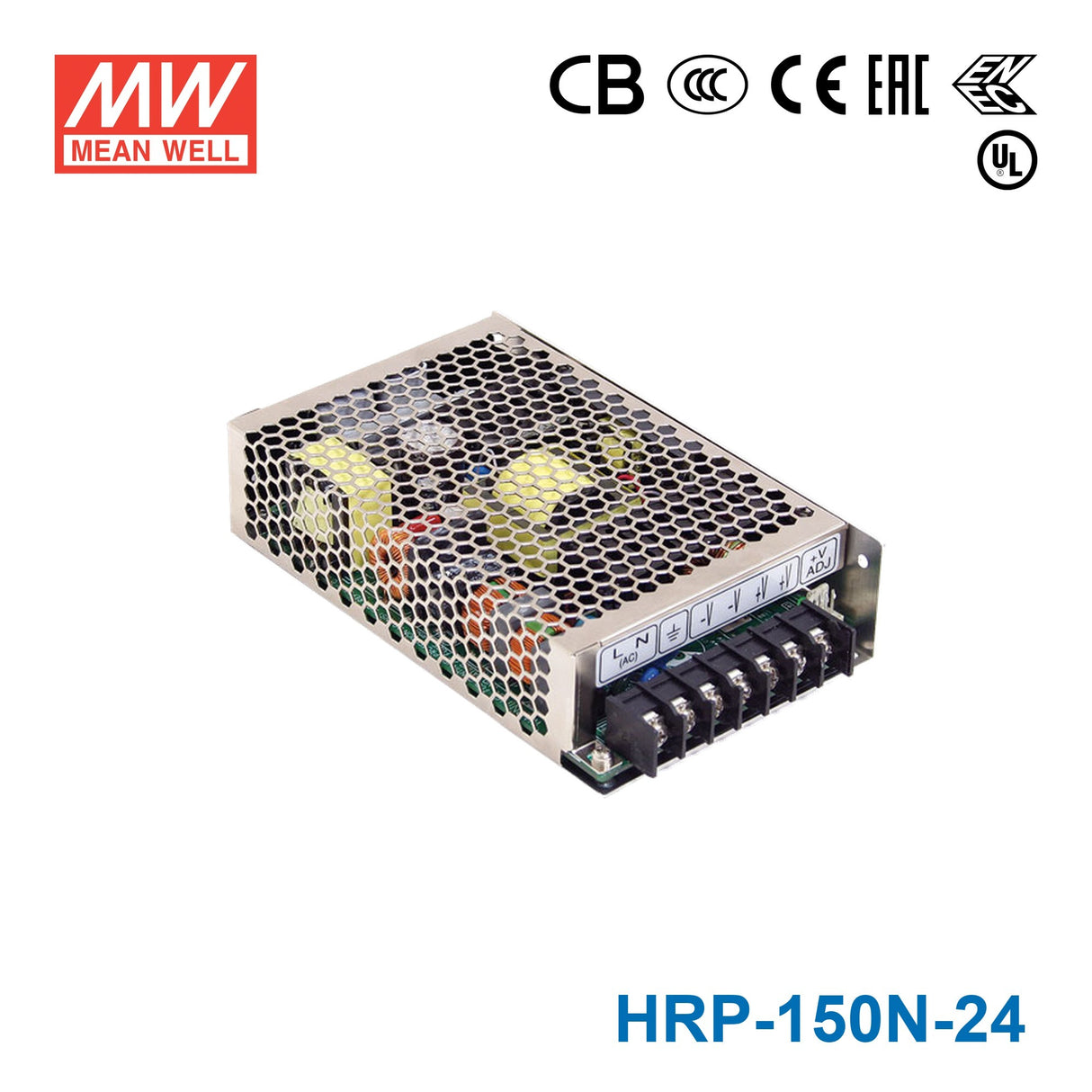

Mean Well HRP-150N-24 High Peak-Power Power Supply 150W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-150N-24 High Peak-Power Power Supply 150W 24V
The HRP-150N is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150N-24 for a 24V PLC or automation control system?
Yes, this is a constant-voltage 24V power supply rated for 150W and 6.5A. It fits 24V industrial control and automation loads that fall within that output envelope.
Is the HRP-150N-24 suitable for 24V sensors, I/O modules, and relays in one panel?
It can be used for grouped 24V DC loads when the combined requirement stays within 6.5A and 150W. The constant-voltage output is appropriate for devices designed around a fixed 24V supply.
Can this model power 24V embedded or industrial communication hardware?
It can be a fit for 24V embedded and industrial electronics that require a regulated 24V output and do not exceed 6.5A. The 85-264VAC input range supports use in systems intended for more than one AC mains standard.
Is the HRP-150N-24 rated for outdoor installations?
The specified operating temperature range is -40°C to +70°C, so the temperature rating supports demanding indoor conditions. No IP rating is given in the listed specs, so the product data does not state outdoor, rain, or dust-protection suitability.
What are the main differences between the HRP-150N-24 and the other HRP-150N models?
The HRP-150N family shown here includes HRP-150N-12 at 150W, 12V, 13A; HRP-150N-24 at 150W, 24V, 6.5A; HRP-150N-36 at 150W, 36V, 4.3A; and HRP-150N-48 at 150W, 48V, 3.3A. The family keeps the same 150W rating and changes the voltage/current combination by model.
