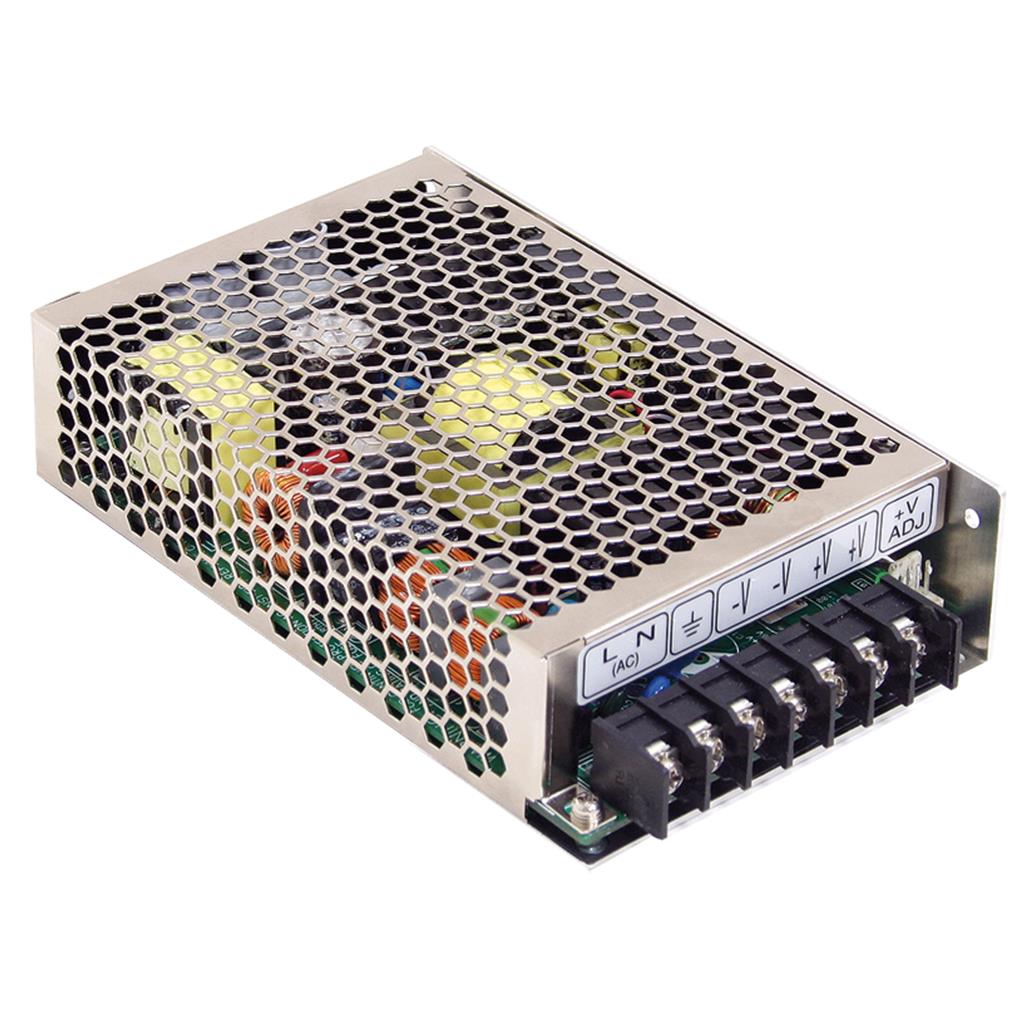

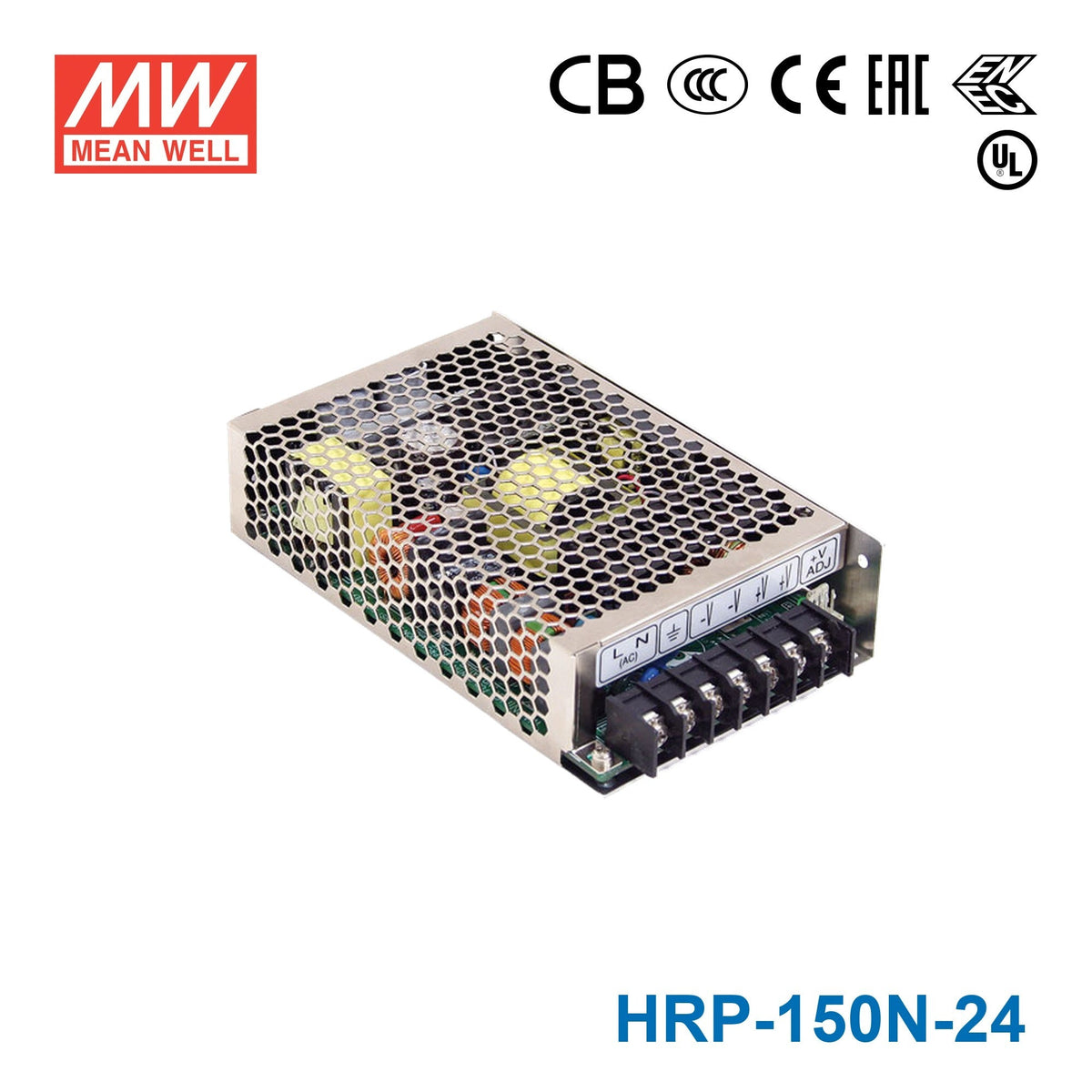

Mean Well HRP-150N-24 High Peak-Power Power Supply 150W 24V 6.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-150N-24 High Peak-Power Power Supply 150W 24V 6.5A
Overview
HRP-150N-24 is the 24V output model of this series: rated current 6.5A, rated power 156W, typical efficiency 88%.
HRP-150N is a 150W single output type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70℃ without cover. Moreover, HRP-150N provides 250% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- 250% peak power capability
- High efficiency up to 89%
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 1U low profile 38mm
- Built-in remote sense function
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 6.5A
- CURRENT RANGE
- 0 ~ 6.5A
- RATED POWER
- 156W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 21.6 ~ 28.8V
- VOLTAGE TOLERANCENote.3
- ±1.5%
- LINE REGULATION
- ±0.2%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 16ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.95/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 88%
- AC CURRENT (Typ.)
- 1.7A/115VAC 0.9A/230VAC
- INRUSH CURRENT (Typ.)
- 35A/115VAC 70A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- Normally works within 105 ~ 200% rated output power for more than 5 seconds and then shut down o/p voltage, re-power on to recover Constant current limiting for output power >280% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
- OVER VOLTAGE
- 30 ~ 34.8V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -50 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
- OPERATING ALTITUDENote.6
- 5000 meters
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 , AS/NZS 62368.1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55032 Class B Radiated BS EN/EN55032 Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2) - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field BS EN/EN61000-4-3 Level 3, 10V/m EFT/ Burst BS EN/EN61000-4-4 Level 3, 2KV Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line Conducted BS EN/EN61000-4-6 Level 3, 10V Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m Voltage Dips and Interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods
OTHERS
- MTBF
- 1740.3K hrs min. Telcordia SR-332 (Bellcore) ; 221.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 159*97*38mm (L*W*H)
- PACKING
- 0.54Kg; 24pcs/12.96Kg/0.9CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

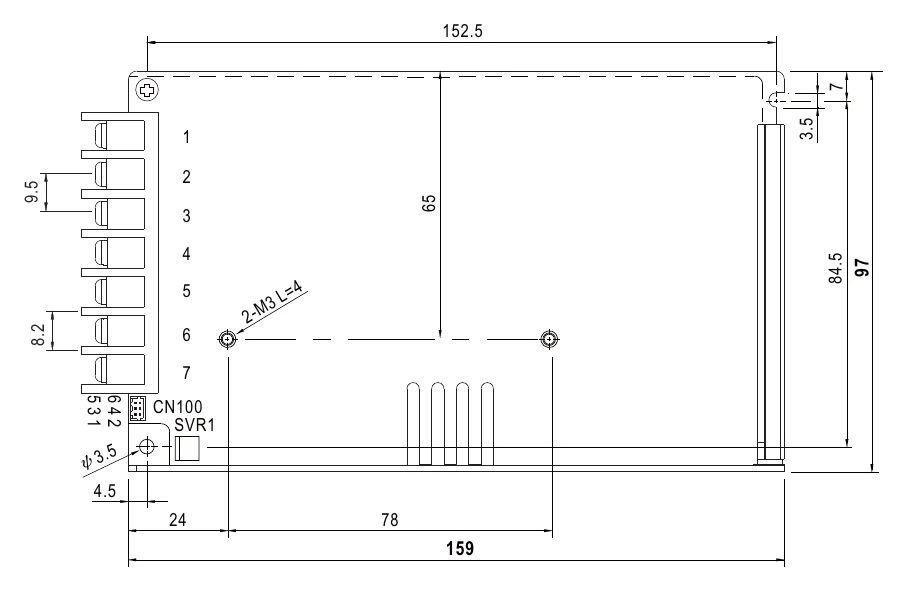

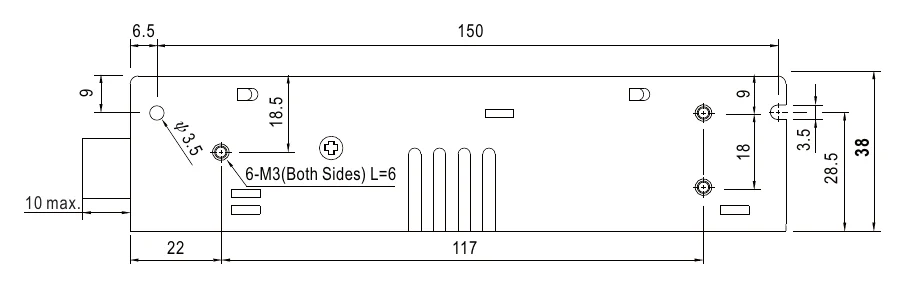

Technical drawings
Typical applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Diagnostic or biological facilities
- Test or measurement systems
- Telecommunication equipment
Downloads
Datasheet1
Certificates8
Test reports1
FAQ
Can I use the HRP-150N-24 for a 24V PLC or automation control system?
Yes, this is a constant-voltage 24V power supply rated for 156W and 6.5A. It fits 24V industrial control and automation loads that fall within that output envelope.
Is the HRP-150N-24 suitable for 24V sensors, I/O modules, and relays in one panel?
It can be used for grouped 24V DC loads when the combined requirement stays within 6.5A and 156W. The constant-voltage output is appropriate for devices designed around a 24V supply.
Can this model power 24V embedded or industrial communication hardware?
It can be a fit for 24V embedded and industrial electronics that require a regulated 24V output and do not exceed 6.5A. The 85-264VAC input range supports use in systems intended for more than one AC mains standard.
Is the HRP-150N-24 rated for outdoor installations?
The specified operating temperature range is -40°C to +70°C, with output derating at higher ambient temperatures per the derating curve, so the temperature rating supports demanding indoor conditions. No IP rating is given in the listed specs, so the product data does not state outdoor, rain, or dust-protection suitability.
What are the main differences between the HRP-150N-24 and the other HRP-150N models?
The HRP-150N family shown here includes HRP-150N-12 at 12V, 13A, 156W; HRP-150N-24 at 24V, 6.5A, 156W; HRP-150N-36 at 36V, 4.3A, 154.8W; and HRP-150N-48 at 48V, 3.3A, 158.4W. The family belongs to the same 150W series and changes the voltage/current combination by model.
