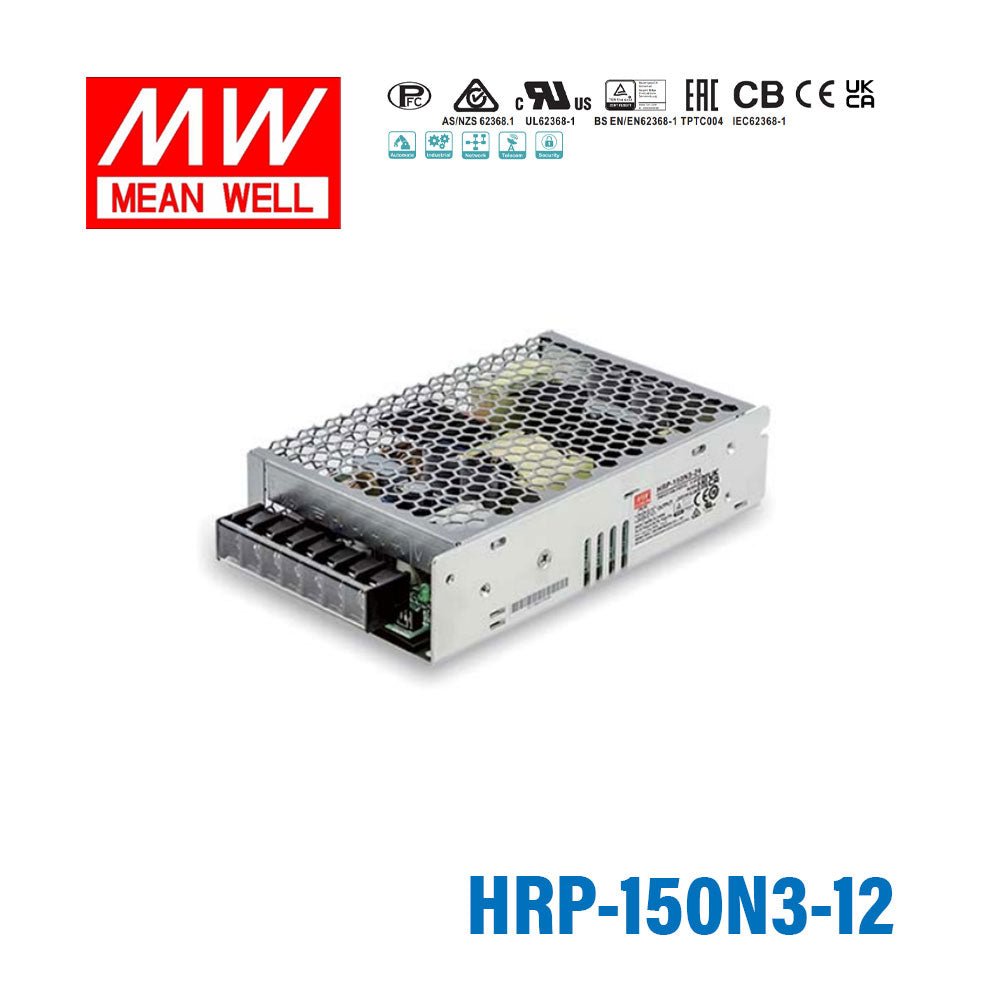

Mean Well HRP-150N3-12 Power Supply 156W 12V, 300% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-150N3-12 Power Supply 156W 12V, 300% peak power model
The HRP-150N3 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
What is the Mean Well HRP-150N3-12 designed for?
The HRP-150N3-12 is an enclosed AC/DC power supply designed for industrial and high-reliability applications that need a regulated 12V output. It is rated at 156W and is part of Mean Well's HRP series with 300% peak power capability for short-duration demand.
What are the main electrical ratings of the HRP-150N3-12?
This model provides a 12V DC output with a rated current of 13A. It is listed with a 150W class power rating and a 156W product description, and it supports output voltage adjustment of approximately plus or minus 15%.
Does the HRP-150N3-12 support high peak loads?
Yes. A key feature of this model is its 300% peak power capability, which helps it handle short-term high-demand loads better than a standard supply of similar nominal wattage. It also includes a built-in constant current limiting circuit to support demanding operating conditions.
What input range does the HRP-150N3-12 accept?
The HRP-150N3-12 accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. It is also specified to withstand a 300VAC surge input for 5 seconds.
Is the HRP-150N3-12 suitable for harsh industrial environments?
Yes. This model is rated for operation from -40°C to +70°C, supports operating altitude up to 5000 meters, and withstands 5G vibration. Its EMC listing also includes heavy industry level compliance under EN61000-6-2.
What protection features are built into the HRP-150N3-12?
The power supply includes protection for short circuit, overload, over voltage, and over temperature. Its overload protection range is 105% to 135%, and the unit shuts down output voltage after sustained overload before recovery by re-powering.
What approvals and physical size does the HRP-150N3-12 have?
The HRP-150N3-12 is approved to UL62368-1, TUV EN62368-1, and AS/NZS 62368.1 safety standards. Its compact 1U low-profile enclosure measures 159 x 97 x 38 mm and weighs approximately 0.54 kg.
What warranty comes with the HRP-150N3-12?
This model includes a 5-year warranty from Mean Well. That warranty period is consistent with the product's positioning for industrial and high-reliability use.
