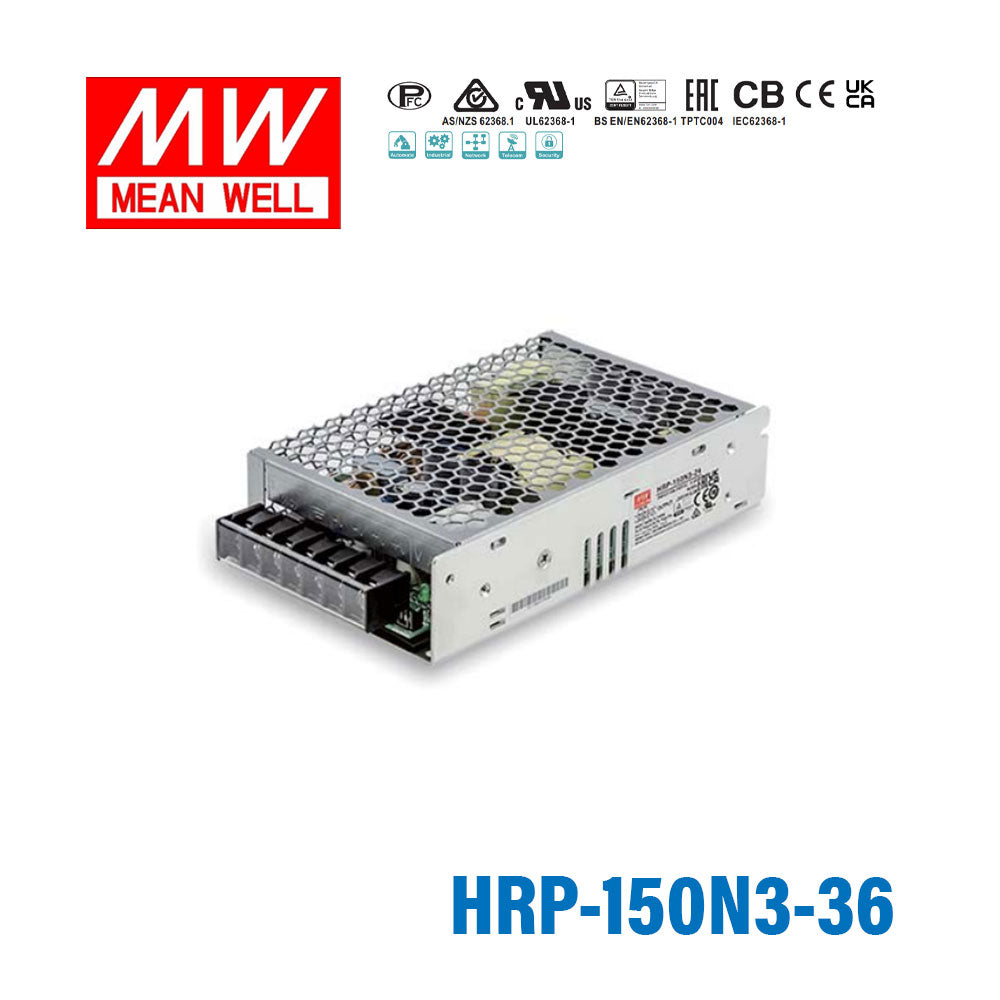

Mean Well HRP-150N3-36 Power Supply 154.8W 36V, 300% peak power model

Name: Mean Well HRP-150N3-36 Power Supply 154.8W 36V, 300% peak power model
Brand: Mean Well
SKU: HRP-150N3-36
Price: 77.52 USD
Availability: InStock

built-in active PFC, 1U low profile, 300% peak power capacity

SKU:

HRP-150N3-36

$77.52 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

300% peak power capability

Built-in constant current limiting circuit

Protection: Short circuit / Overload / Over Voltage / Over Temperature

Built-in remote sense function

Withstand 5G vibration

Operating altitude up to 5000 meters(Note.5)

Output voltage adjustable ±15%(Avg.)

1U low profile 38mm

5 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	35A/115VAC 70A/230VAC
Overload protection Range	105%~135%
Overload protection Type	Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover
Over voltage protection	14.4 ~ 16.8V \| 30 ~ 34.8V \| 41.4 ~ 48.6V\| 57.6 ~ 67.2V \|
Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-40 ~ +70 (Refer to "Derating Curve")
Safety standards	UL62368-1, TUV EN62368-1, , AS/NZS 62368.1 approved
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Dimension (LxWxH)	1599738mm (LWH)
PACKING	0.54Kg; 24pcs/12.96Kg/0.9CUFT

Specifications

Brand

Mean Well
Series

HRP Series
Power Rating

150 Watt
Output Voltage

36 Volt
Rated Current

4.3 Ampere
Input Voltage

85V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

6.26 in
Width

3.82 in
Height

1.5 in
Weight

1.19 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

300% peak power capability

Built-in constant current limiting circuit

Protection: Short circuit / Overload / Over Voltage / Over Temperature

Built-in remote sense function

Withstand 5G vibration

Operating altitude up to 5000 meters(Note.5)

Output voltage adjustable ±15%(Avg.)

1U low profile 38mm

5 years warranty

General Specification

AC input voltage range

85~264VAC; 120~370VDC

AC inrush current (max.)

35A/115VAC 70A/230VAC

Overload protection Range

105%~135%

Overload protection Type

Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover

Over voltage protection

14.4 ~ 16.8V | 30 ~ 34.8V | 41.4 ~ 48.6V| 57.6 ~ 67.2V |

Withstand voltage

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Working temperature

-40 ~ +70 (Refer to "Derating Curve")

Safety standards

UL62368-1, TUV EN62368-1, , AS/NZS 62368.1 approved

EMC standards

EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level

Dimension (LxWxH)

159*97*38mm (L*W*H)

PACKING

0.54Kg; 24pcs/12.96Kg/0.9CUFT
