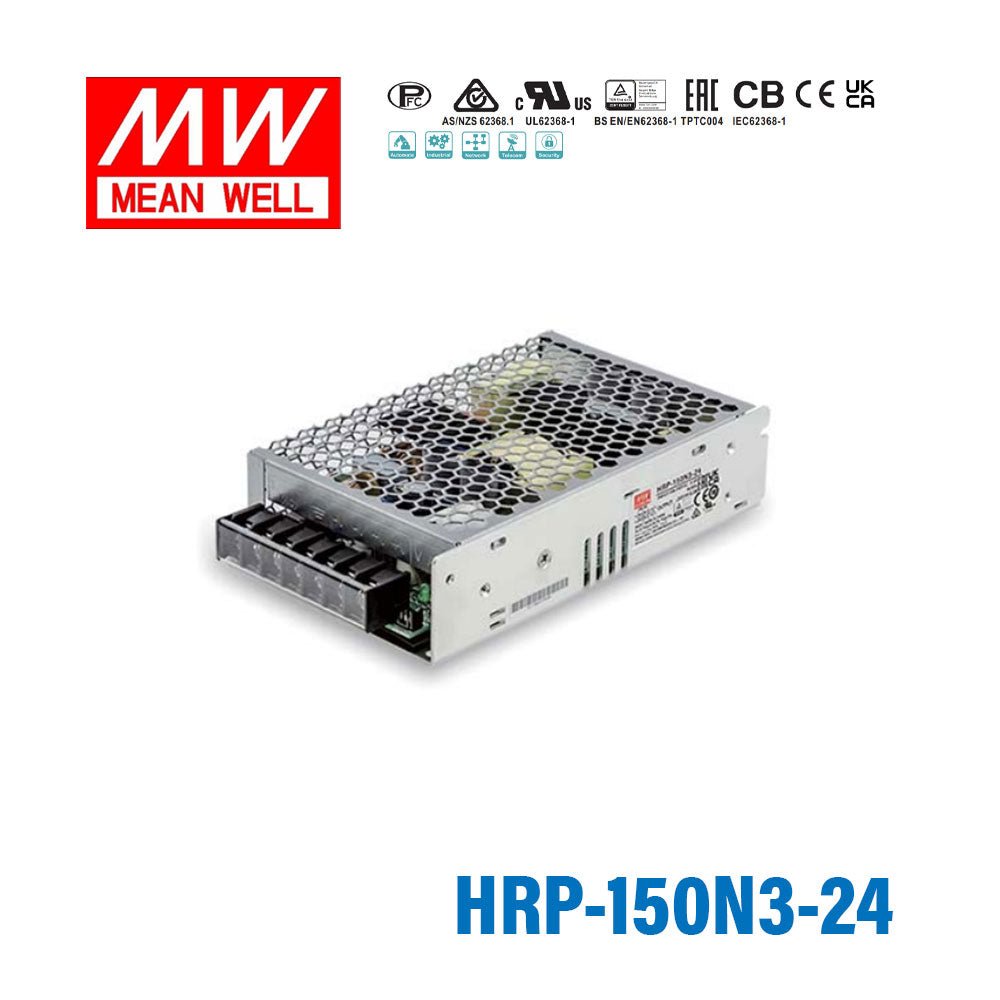

Mean Well HRP-150N3-24 Power Supply 156W 24V, 300% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-150N3-24 Power Supply 156W 24V, 300% peak power model
The HRP-150N3 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well HRP-150N3-24?
The HRP-150N3-24 is a 24V enclosed AC-DC power supply rated at 156W with a rated current of 6.5A. It also supports output voltage adjustment of approximately plus or minus 15%, which helps when a small output trim range is needed for the application.
What does the 300% peak power feature mean on the HRP-150N3-24?
This model is designed with 300% peak power capability, which is a key differentiator in the HRP-150N3 series. It is useful in applications that may have short high-demand load conditions, while the unit's rated continuous output remains 156W at 24V.
Is the HRP-150N3-24 suitable for industrial environments?
Yes. It is built for industrial use with a wide operating temperature range of -40 to +70 degrees C, 5G vibration resistance, and operating altitude up to 5000 meters. The unit also meets heavy-industry EMC requirements including EN61000-6-2.
What input range does the Mean Well HRP-150N3-24 support?
The HRP-150N3-24 accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. It can additionally withstand a 300VAC surge input for 5 seconds, which supports use in demanding power environments.
What protection features are included in the HRP-150N3-24?
This model includes protection for short circuit, overload, over voltage, and over temperature. It also has a built-in constant current limiting circuit, and its overload protection shuts down the output if output power stays above 105% of rating for more than 5 seconds until power is reapplied.
Does the HRP-150N3-24 have approvals and warranty coverage suitable for commercial projects?
Yes. The unit is approved to UL62368-1, TUV EN62368-1, and AS/NZS 62368.1 safety standards, which supports use in regulated commercial and industrial procurement. Mean Well also specifies a 5-year warranty for this model.
How compact is the Mean Well HRP-150N3-24 for cabinet or low-profile builds?
The HRP-150N3-24 has a 1U low-profile design with dimensions of 159 x 97 x 38mm. Its 38mm height makes it easier to specify in enclosures or equipment layouts where vertical clearance is limited.
