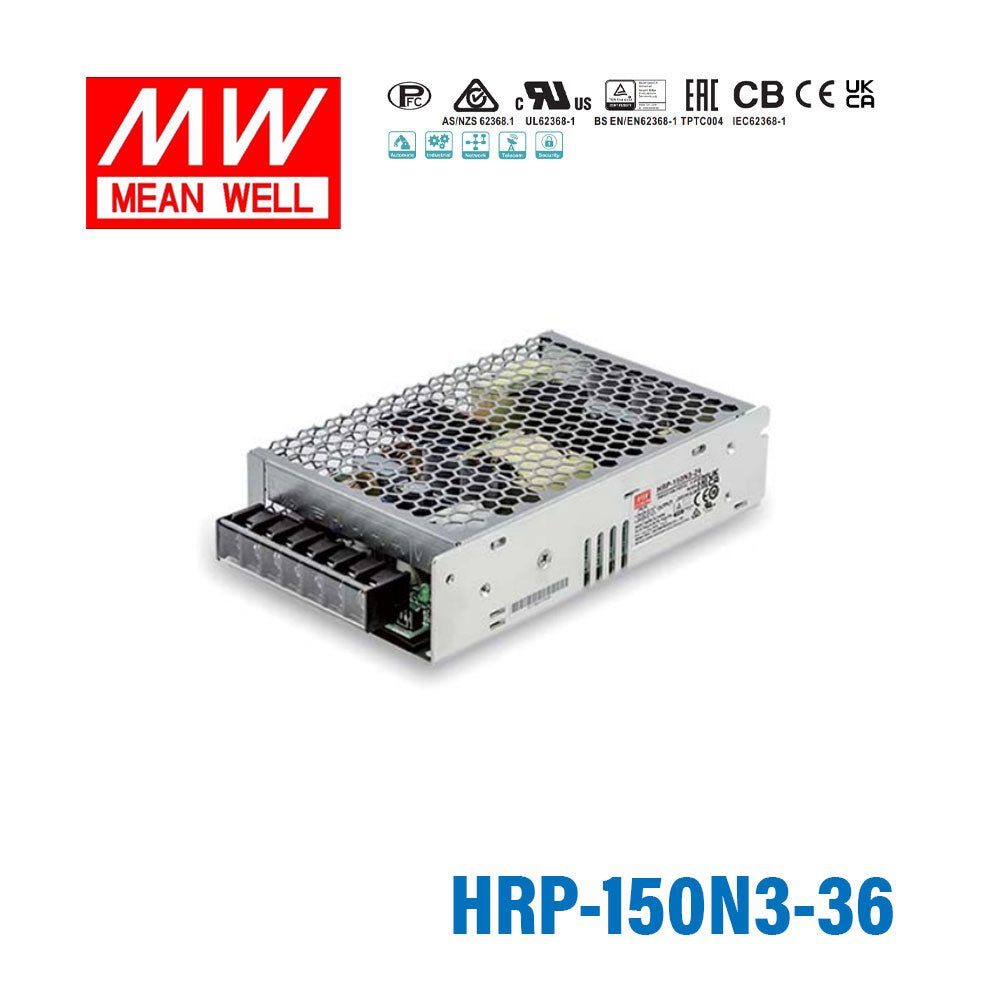

Mean Well HRP-150N3-36 Power Supply 154.8W 36V, 300% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-150N3-36 Power Supply 154.8W 36V, 300% peak power model
The HRP-150N3 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage36 Volt
-
Rated Current4.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well HRP-150N3-36?
The HRP-150N3-36 is rated for 154.8W output with a nominal 36V DC output. Its rated output current is 4.3A. This makes it suitable for applications that need a regulated 36V supply in a compact enclosed form factor.
What makes the HRP-150N3-36 different from a standard 150W power supply?
A key differentiator is its 300% peak power capability, which helps it support loads with higher short-duration power demand than a typical standard-output model. It also includes built-in constant current limiting, remote sense, and a low-profile 38mm height. These features make it better suited to demanding industrial use cases.
What input voltage range does the HRP-150N3-36 support?
This model accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. It is designed for global deployment where input conditions may vary. It also withstands a 300VAC surge input for 5 seconds.
Is the HRP-150N3-36 suitable for harsh industrial environments?
Yes, the HRP-150N3-36 is designed for industrial environments with an operating temperature range of -40 to +70 degrees C. It also withstands 5G vibration and supports operating altitudes up to 5000 meters. EMC performance includes EN61000-6-2 heavy industry level compliance.
What protection features are included in the HRP-150N3-36?
This model includes protection for short circuit, overload, over voltage, and over temperature conditions. Its overload protection range is 105% to 135%, and if output power exceeds 105% rated power for more than 5 seconds, the output shuts down until power is reapplied. These protections help support reliable operation in demanding systems.
What kinds of applications is the HRP-150N3-36 typically used for?
The HRP-150N3-36 is a fit for industrial equipment that needs a compact enclosed 36V power supply with high reliability and short-duration peak power headroom. Its low-profile 1U form factor, wide temperature range, and remote sense function make it relevant for space-constrained industrial systems. Buyers typically consider this model when stable 36V output and rugged operating capability are priorities.
What certifications and compliance standards does the HRP-150N3-36 meet?
The HRP-150N3-36 is approved to UL62368-1, TUV EN62368-1, and AS/NZS 62368.1 safety standards. For EMC, it meets EN55022 Class B and multiple EN61000 immunity and emissions standards, including heavy industry level EN61000-6-2. These approvals are relevant for buyers evaluating compliance for commercial and industrial deployments.
