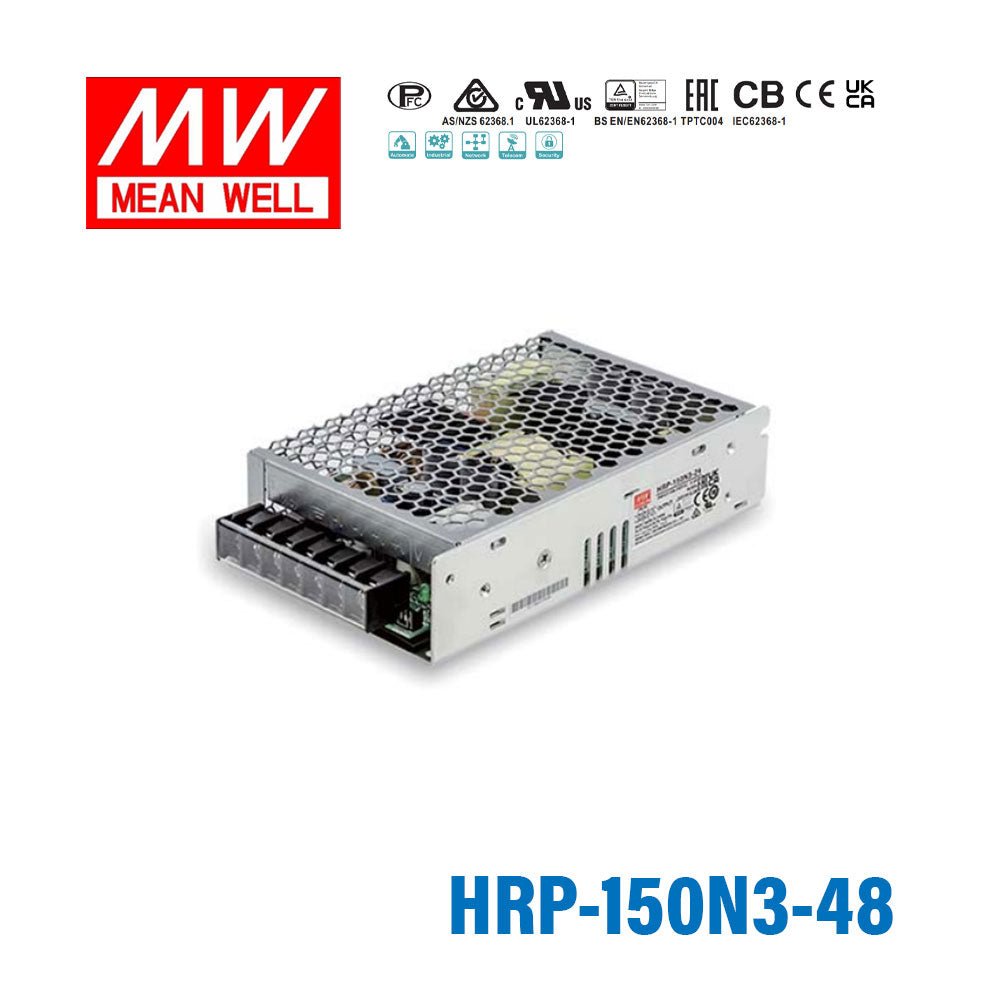

Mean Well HRP-150N3-48 Power Supply 154.8W 48V, 300% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-150N3-48 Power Supply 154.8W 48V, 300% peak power model
The HRP-150N3 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage48 Volt
-
Rated Current3.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
What are the key output specifications of the Mean Well HRP-150N3-48?
The HRP-150N3-48 is a 48V enclosed AC-DC power supply rated at 154.8W with a rated output current of 3.3A. It is part of Mean Well's HRP-150N3 series and is designed for industrial power applications that need a compact 1U profile.
What does the 300% peak power capability mean on the HRP-150N3-48?
This model is specifically described as a 300% peak power model, which makes it useful for loads that have brief high startup or peak demand conditions. It also includes a built-in constant current limiting circuit to support demanding applications without changing the unit's nominal 48V output rating.
What input voltage range does the HRP-150N3-48 support?
The HRP-150N3-48 accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. It is also specified to withstand a 300VAC surge input for 5 seconds.
Is the HRP-150N3-48 suitable for harsh industrial environments?
Yes. This model is rated for operation from -40°C to +70°C, supports operating altitude up to 5000 meters, and is specified to withstand 5G vibration. It also meets heavy industry level EMC standards including EN61000-6-2.
What protection features are included in the HRP-150N3-48?
The HRP-150N3-48 includes protection for short circuit, overload, over voltage, and over temperature. Its overload protection range is specified at 105% to 135%, and the unit shuts down output voltage after sustained overload before recovering after repowering.
Can the output voltage on the HRP-150N3-48 be adjusted?
Yes. Mean Well specifies output voltage adjustment of approximately ±15% for this model. The unit also includes a built-in remote sense function, which can help maintain accurate output voltage at the load in suitable system designs.
What compliance and certification standards does the HRP-150N3-48 meet?
This power supply is listed with UL62368-1, TUV EN62368-1, and AS/NZS 62368.1 safety approvals. For EMC, it is specified to meet EN55022 Class B and multiple EN61000 immunity and harmonics standards.
How compact is the Mean Well HRP-150N3-48 for equipment integration?
The HRP-150N3-48 measures 159 x 97 x 38 mm and is described as a 1U low profile design. Its listed weight is 0.54 kg, which makes it suitable where space efficiency matters in industrial equipment layouts.
