Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HRP-300N-24 High Peak-Power Power Supply 300W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours

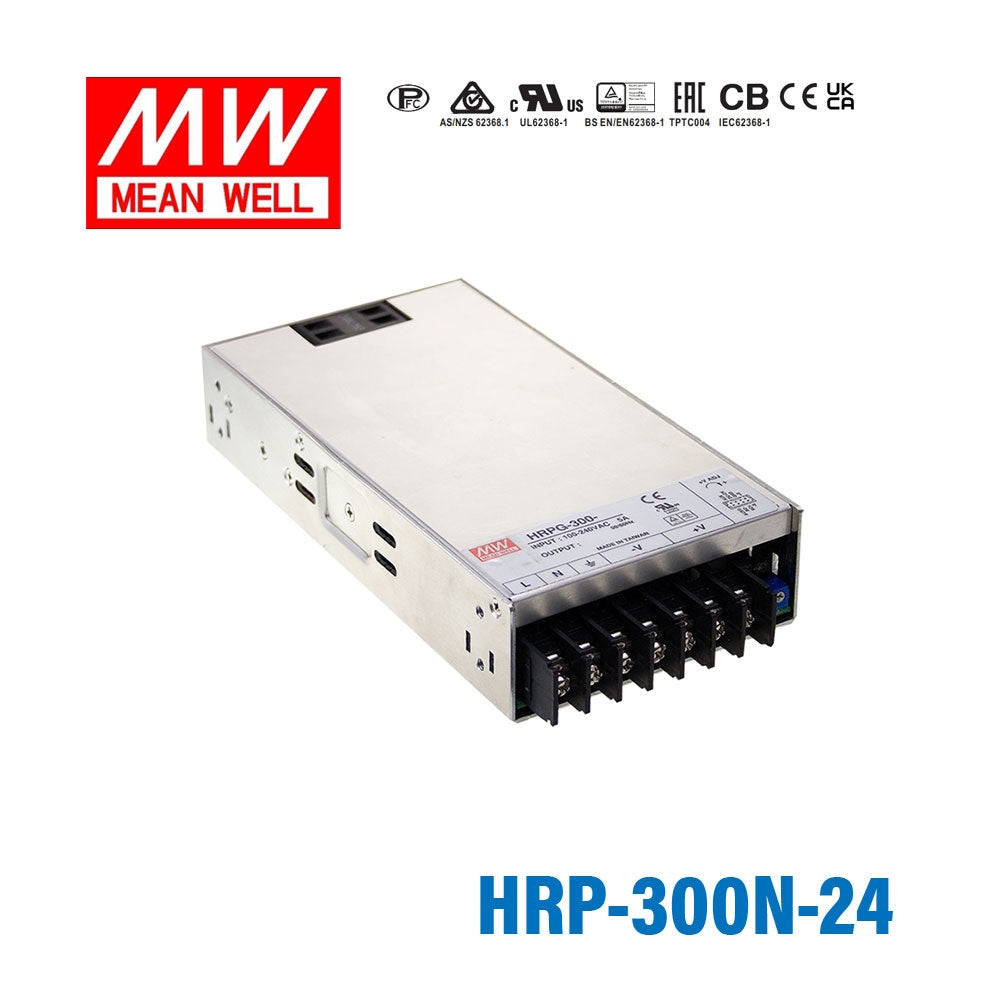

Mean Well HRP-300N-24 High Peak-Power Power Supply 300W 24V
The HRP-300N is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating300 Watt
-
Output Voltage24 Volt
-
Rated Current14 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight1.98 lb
::specification::
Frequently Asked Questions
Can I use the HRP-300N-24 for 24V PLC systems, industrial I/O, or automation controls?
Yes, this model is built for constant voltage 24V output and provides 300W with up to 14A. That makes it a fit for 24V industrial control systems and automation hardware designed around a 24V DC bus.
Is the HRP-300N-24 appropriate for 24V machine electronics or panel-based instrumentation?
It is appropriate when the equipment requires regulated 24V DC and the total load stays within 300W and 14A. Those specs align with many industrial electronics and instrumentation assemblies that standardize on 24V.
Can this 24V power supply run multiple 24V devices in a single enclosure?
Yes, as long as the combined 24V load does not exceed 14A or 300W. It is intended for constant voltage operation, so it works best in systems where all connected loads are designed for a 24V supply rail.
Is the HRP-300N-24 suitable for indoor factory use where temperatures can get very low or very high?
The operating temperature range is specified at -40°C to +70°C, which covers a wide span for industrial indoor use. The provided specifications do not state an IP rating, so outdoor exposure capability is not confirmed from this data.
What is the difference between the HRP-300N-24 and the other HRP-300N models?
The HRP-300N series variants listed are 12V at 300W and 27A, 24V at 300W and 14A, 36V at 300W and 9A, and 48V at 300W and 7A. The HRP-300N-24 is the 24V option, so its key published output is 14A at the same 300W platform level.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-300N Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-300N-48 High Peak-Power Power Supply 300W 48V | 300W | 48V | 7A | Indoor | $100.01 | View |
| Mean Well HRP-300N-36 High Peak-Power Power Supply 300W 36V | 300W | 36V | 9A | Indoor | $100.01 | View |
| Mean Well HRP-300N-12 High Peak-Power Power Supply 300W 12V | 300W | 12V | 27A | Indoor | $100.01 | View |
