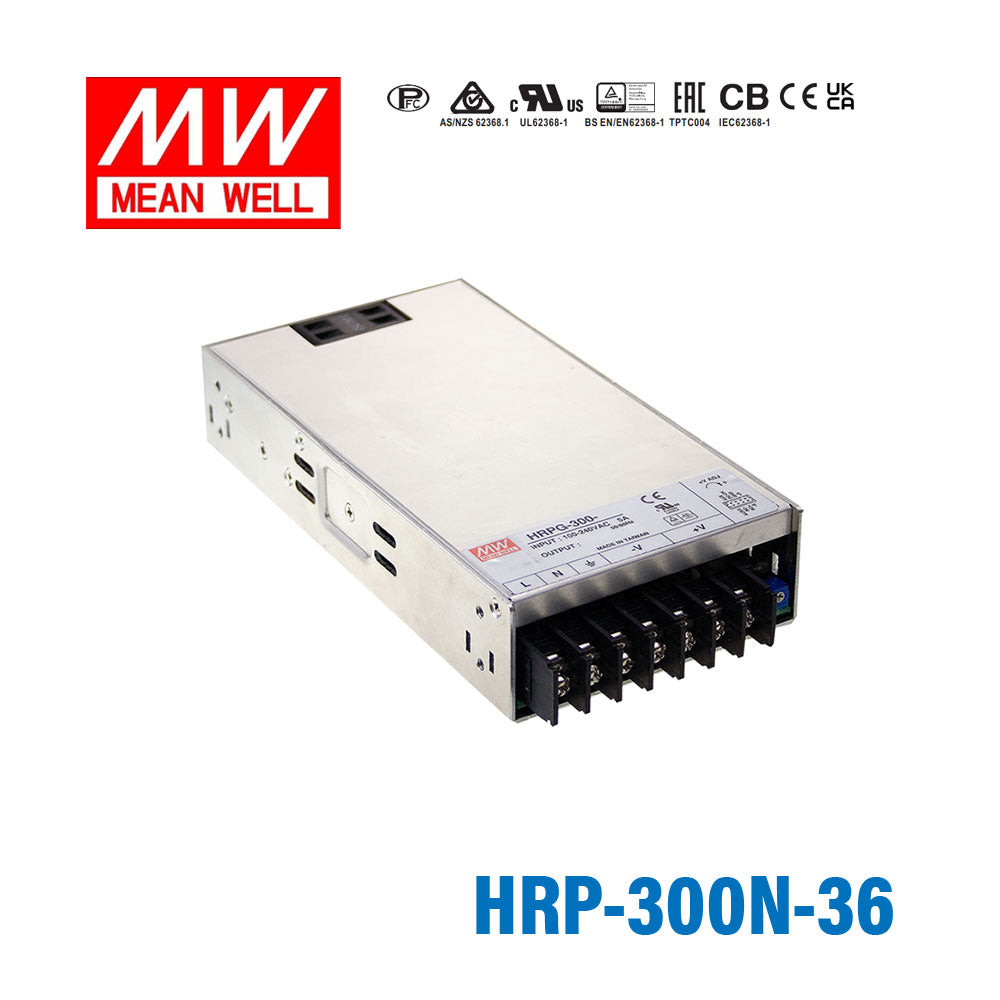

Mean Well HRP-300N-36 High Peak-Power Power Supply 300W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-300N-36 High Peak-Power Power Supply 300W 36V
The HRP-300N is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating300 Watt
-
Output Voltage36 Volt
-
Rated Current9 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight1.98 lb
::specification::
Frequently Asked Questions
Can I use the HRP-300N-36 for 36V industrial controls or motion-related electronics?
Yes, if the equipment requires a constant 36V DC source. This unit is rated for 300W at 36V and up to 9A, which suits 36V industrial electronics that operate within those limits.
Is the HRP-300N-36 a fit for 36V embedded equipment or factory test systems?
It can be a fit for embedded or test equipment built around a regulated 36V bus. The key electrical limits are 300W total output and 9A maximum current at 36V.
Can this model power a centralized 36V DC bus in an automation enclosure?
It is designed for constant voltage 36V output, so it can serve a shared 36V bus when the full load remains within 9A and 300W. The wide 85-264VAC input also supports deployment across varied AC input conditions.
Is the HRP-300N-36 rated for outdoor environments?
The published operating temperature range is -40°C to +70°C, which supports a broad range of operating conditions. However, no IP rating is listed in the provided specs, so outdoor suitability is not established by this information alone.
How does the HRP-300N-36 compare to other HRP-300N voltage options?
The listed HRP-300N versions are 12V at 300W and 27A, 24V at 300W and 14A, 36V at 300W and 9A, and 48V at 300W and 7A. Compared with the other versions, the HRP-300N-36 keeps the same 300W platform but shifts to a 36V, 9A output profile.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-300N Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-300N-48 High Peak-Power Power Supply 300W 48V | 300W | 48V | 7A | Indoor | $100.01 | View |
| Mean Well HRP-300N-24 High Peak-Power Power Supply 300W 24V | 300W | 24V | 14A | Indoor | $105.99 | View |
| Mean Well HRP-300N-12 High Peak-Power Power Supply 300W 12V | 300W | 12V | 27A | Indoor | $100.01 | View |
