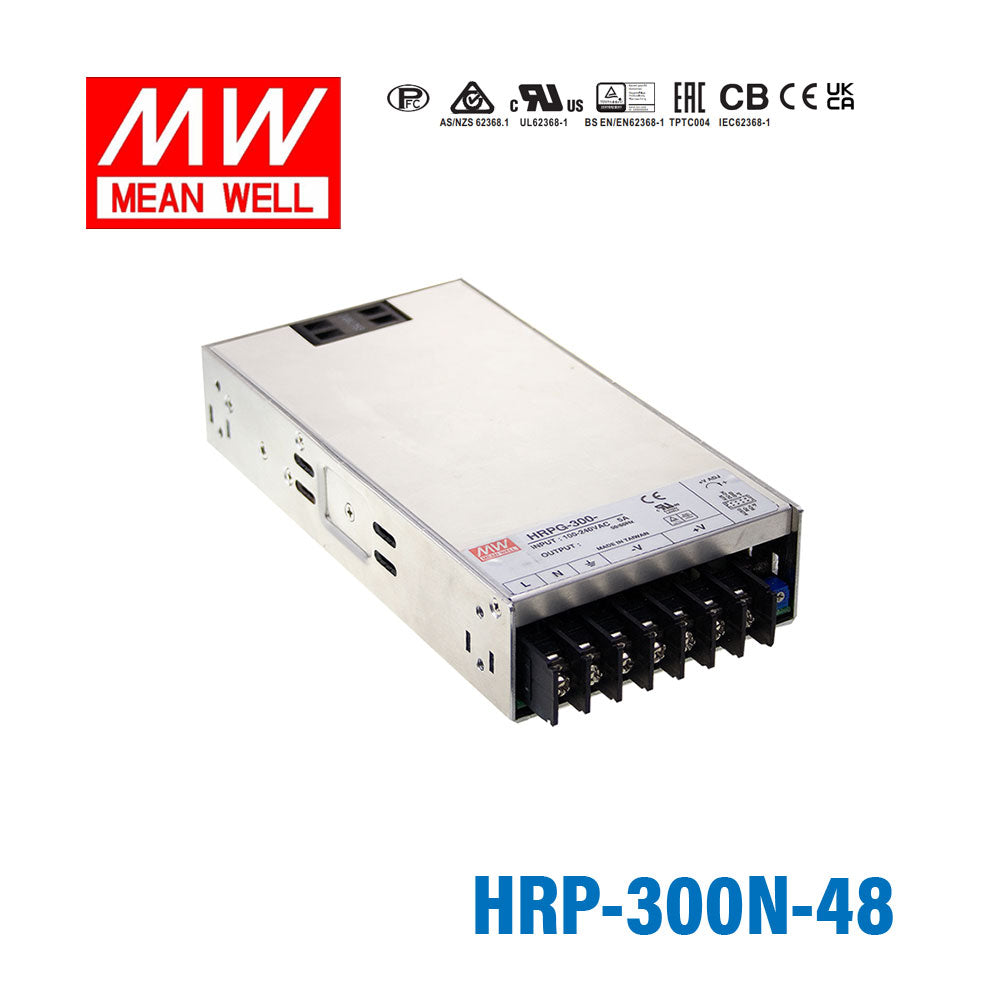

Mean Well HRP-300N-48 High Peak-Power Power Supply 300W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-300N-48 High Peak-Power Power Supply 300W 48V
The HRP-300N is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating300 Watt
-
Output Voltage48 Volt
-
Rated Current7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight1.98 lb
::specification::
Frequently Asked Questions
Can I use the HRP-300N-48 for a 48V industrial control cabinet?
Yes, this model is a constant-voltage 48V supply rated for 300W and 7A, which fits 48V control and automation loads that need a fixed DC output. It accepts 85-264VAC input, so it can be used in installations that need a wide AC input range.
Is the HRP-300N-48 suitable for 48V telecom or network equipment that needs AC-to-DC conversion?
It can be a fit for 48V equipment when the load requires a constant 48V output and stays within 7A and 300W. The wide 85-264VAC input range also makes it suitable where mains input conditions vary.
Can this 48V power supply run embedded or automation test benches?
It is appropriate for 48V embedded or automation benches when the system needs a constant-voltage source and the total draw does not exceed 300W or 7A. The compact 199.0 x 105.0 x 41.0 mm size can also help where panel space is limited.
How does the HRP-300N-48 compare with other 48V HRP series models?
Within the 48V HRP family, listed siblings include HRP-75-48 at 76.8W and 1.6A, HRP-100-48 at 105.6W and 2.2A, HRP-150-48 at 158.4W and 3.3A, HRP-150N-48 at 150W and 3.3A, HRP-150N3-48 at 150W and 3.3A, HRP-200-48 at 206.4W and 4.3A, HRP-300-48 at 336W and 7A, HRP-300N3-48 at 300W and 7A, HRP-450-48 at 456W and 9.5A, HRP-600-48 at 624W and 13A, HRP-600N-48 at 600W and 13A, and HRP-600N3-48 at 600W and 13A. The HRP-300N-48 sits in the mid-to-upper part of that 48V range with 300W output and 7A current.
Can the HRP-300N-48 be used in outdoor or harsh-temperature environments?
The listed operating temperature range is -40°C to +70°C, so the temperature spec supports use in very cold and hot environments. The provided specs do not list an IP rating, so dust and water exposure suitability is not established by the product data here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-300N Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-300N-36 High Peak-Power Power Supply 300W 36V | 300W | 36V | 9A | Indoor | $100.01 | View |
| Mean Well HRP-300N-24 High Peak-Power Power Supply 300W 24V | 300W | 24V | 14A | Indoor | $105.99 | View |
| Mean Well HRP-300N-12 High Peak-Power Power Supply 300W 12V | 300W | 12V | 27A | Indoor | $100.01 | View |
