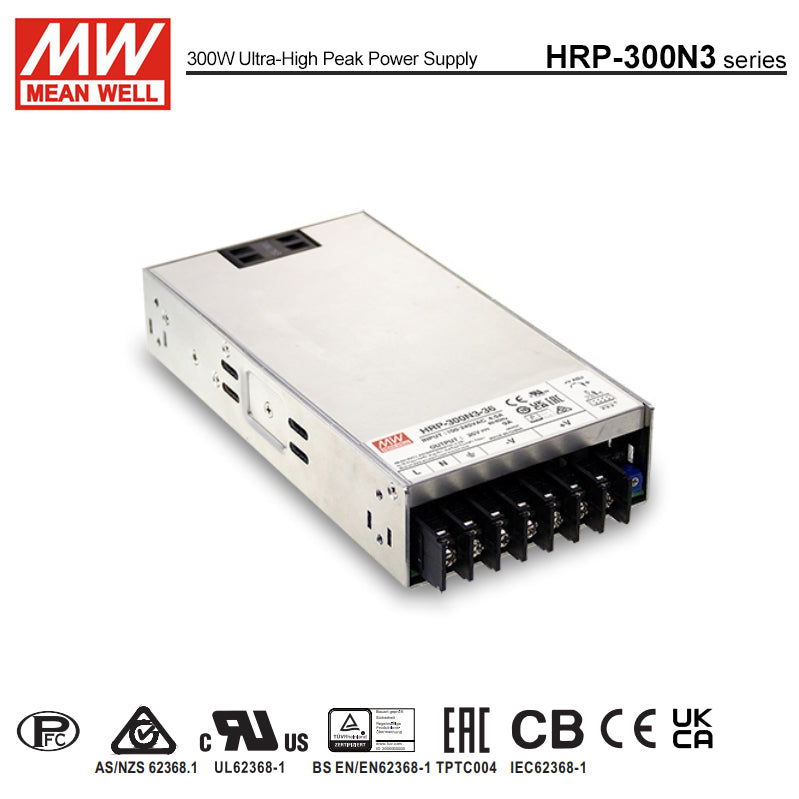

Mean Well HRP-300N3-36 Power Supply 324W 36V, 350% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-300N3-36 Power Supply 324W 36V, 350% peak power model
The HRP-300N3 is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating300 Watt
-
Output Voltage36 Volt
-
Rated Current9 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight1.98 lb
::specification::
Frequently Asked Questions
What are the main output ratings of the Mean Well HRP-300N3-36?
This model is a 324W enclosed AC-DC power supply with a 36V DC output and 9A rated current. It is part of the HRP-300N3 series and includes output voltage adjustment of about ±15%.
What kind of applications is the HRP-300N3-36 suited for?
The HRP-300N3-36 is aimed at industrial and high-reliability equipment that needs a regulated 36V DC supply in a compact enclosed format. Its low 41mm profile, DC OK signal, remote sense function, and peak power capability make it a stronger fit for demanding control and industrial power applications than a basic general-purpose PSU.
Can the HRP-300N3-36 be used in demanding industrial environments?
Yes. This model is specified for operation from -40°C to +70°C, supports operating altitude up to 5000 meters, and withstands 5G vibration. It also meets heavy-industry EMC standards and includes protection for short circuit, overload, over voltage, and over temperature.
What input range does the HRP-300N3-36 accept?
The HRP-300N3-36 has a universal input range of 85 to 264VAC, and it also supports 120 to 370VDC input. The unit is designed to withstand a 300VAC surge input for 5 seconds.
What makes the HRP-300N3-36 different from a standard enclosed 36V power supply?
This model is designed for higher-demand applications with features such as peak power capability, built-in constant current limiting, DC OK signal, remote sense, and fan on-off control. It also combines a 1U low-profile 41mm chassis with industrial approvals and a 5-year warranty.
What certifications and compliance standards does the HRP-300N3-36 meet?
The HRP-300N3-36 is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. For EMC, it lists EN55022 Class B, EN61000-4-2/3/4/5/6/8/11, EN61000-3-2/3, and EN61000-6-2 heavy industry level.
