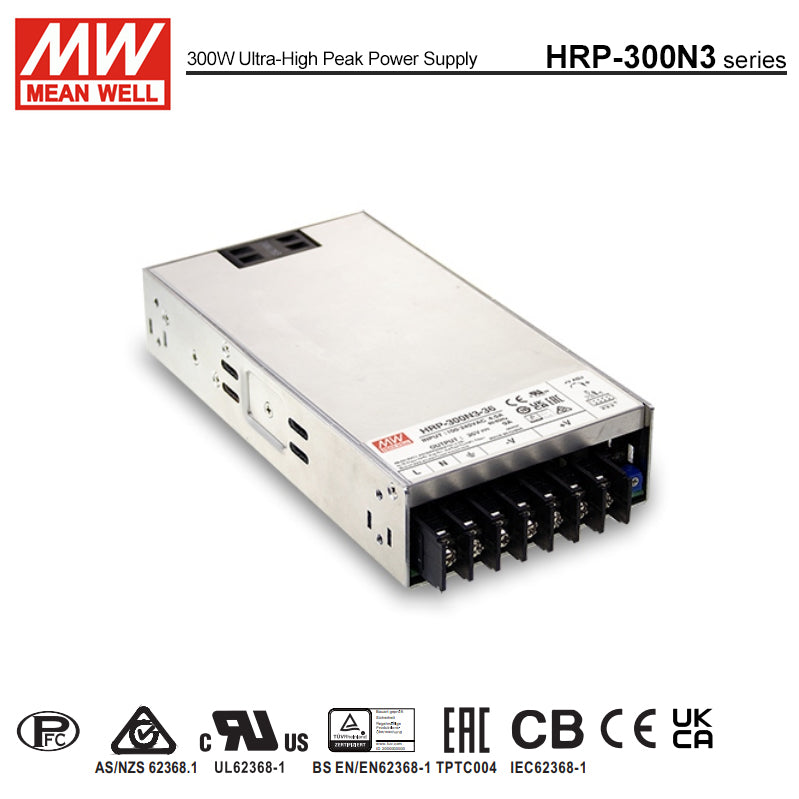

Mean Well HRP-300N3-12 Power Supply 324W 12V, 350% peak power model

built-in active PFC, 1U low profile, 300% peak power capacity
SKU:
HRP-300N3-12

$93.74 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
300% peak power capability
Built-in constant current limiting circuit
Protection: Short circuit / Overload / Over Voltage / Over Temperature
Built-in cooling fan ON-OFF control
Built-in DC OK Signal
Buit-in remote sense function
Withstand 5G vibration
Operating altitude up to 5000 meters(Note.5)
Output voltage adjustable ±15%(Avg.)
1U low profile 41mm
5 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) 35A/115VAC 70A/230VAC
Overload protection Range 105%~135%
Overload protection Type Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover
Over voltage protection 14.4 ~ 16.8V | 30 ~ 34.8V | 41.4 ~ 48.6V| 57.6 ~ 67.2V |
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -40 ~ +70 (Refer to "Derating Curve")
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Dimension (LxWxH) 199*105*41mm (L*W*H)
PACKING 0.9Kg;15pcs/14.5Kg/0.84CUFT

Specifications

  • Brand
    Mean Well
  • Series
    HRP Series
  • Power Rating
    300 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    27 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    7.83 in
  • Width
    4.13 in
  • Height
    1.61 in
  • Weight
    1.98 lb

File Downloads

::specification::
