Mean Well HRP-600N3-12 Power Supply 636W 12V, 350% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours

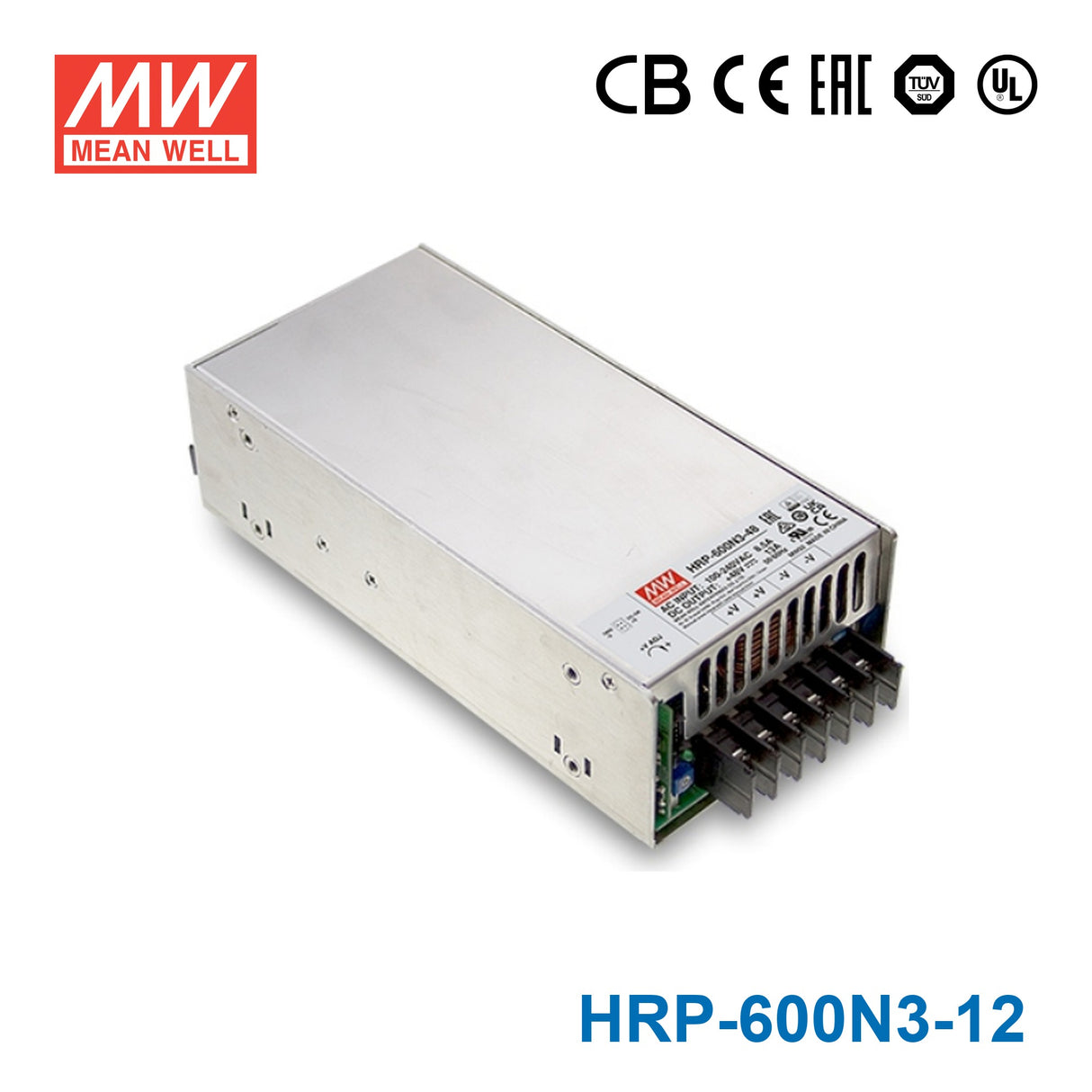

Mean Well HRP-600N3-12 Power Supply 636W 12V, 350% peak power model
The HRP-600N3 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage12 Volt
-
Rated Current53 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.06 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well HRP-600N3-12?
The HRP-600N3-12 is a 12V enclosed AC-DC power supply rated for 636W output power. It provides a rated output current of 53A. This makes it suitable for higher-current 12V industrial equipment that needs a compact enclosed supply.
What kinds of industrial applications is the HRP-600N3-12 designed for?
This model is aimed at demanding industrial applications that need a reliable 12V power source with high output capacity. Its enclosed form factor, DC OK signal, remote sense function, and high-reliability positioning make it a fit for control systems, automation equipment, and other industrial power applications. It is especially relevant where continuous-duty operation and strong protection features matter.
Can the HRP-600N3-12 handle harsh electrical or industrial environments?
Yes. The unit accepts a universal input range of 85 to 264VAC and can withstand a 300VAC surge input for 5 seconds. It also meets heavy-industry EMC standards and is rated to withstand 5G vibration, which supports use in tougher industrial environments.
What temperature range can the HRP-600N3-12 operate in?
The specified operating temperature range is -40°C to +70°C, with reference to the derating curve. That gives it a wide operating window for industrial environments. Buyers should still confirm derating requirements for high ambient temperatures.
What protection features are included in the HRP-600N3-12?
The HRP-600N3-12 includes short circuit, overload, over voltage, and over temperature protection. Its overload protection range is specified at 105% to 135%, and the unit shuts down output voltage if output power exceeds 105% of rated power for more than 5 seconds, then recovers after re-powering. It also includes a built-in constant current limiting circuit.
Is the HRP-600N3-12 a good choice when space is limited?
This model uses a low-profile enclosed design intended for space-conscious industrial builds. Its dimensions are 218 x 105 x 61.5 mm, and the product highlights a 1U low-profile design. That makes it easier to consider where a compact high-power 12V supply is needed.
What certifications and compliance standards does the HRP-600N3-12 meet?
The HRP-600N3-12 is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. Its EMC compliance includes EN55022 Class B and EN61000 series standards, including EN61000-6-2 heavy industry level. These approvals are relevant for buyers who need a supply aligned with industrial and commercial compliance requirements.
What warranty comes with the Mean Well HRP-600N3-12?
This model includes a 5-year warranty. That warranty period supports its positioning as a high-reliability industrial power supply. For B2B buyers, it adds confidence for longer service-life planning and maintenance schedules.
