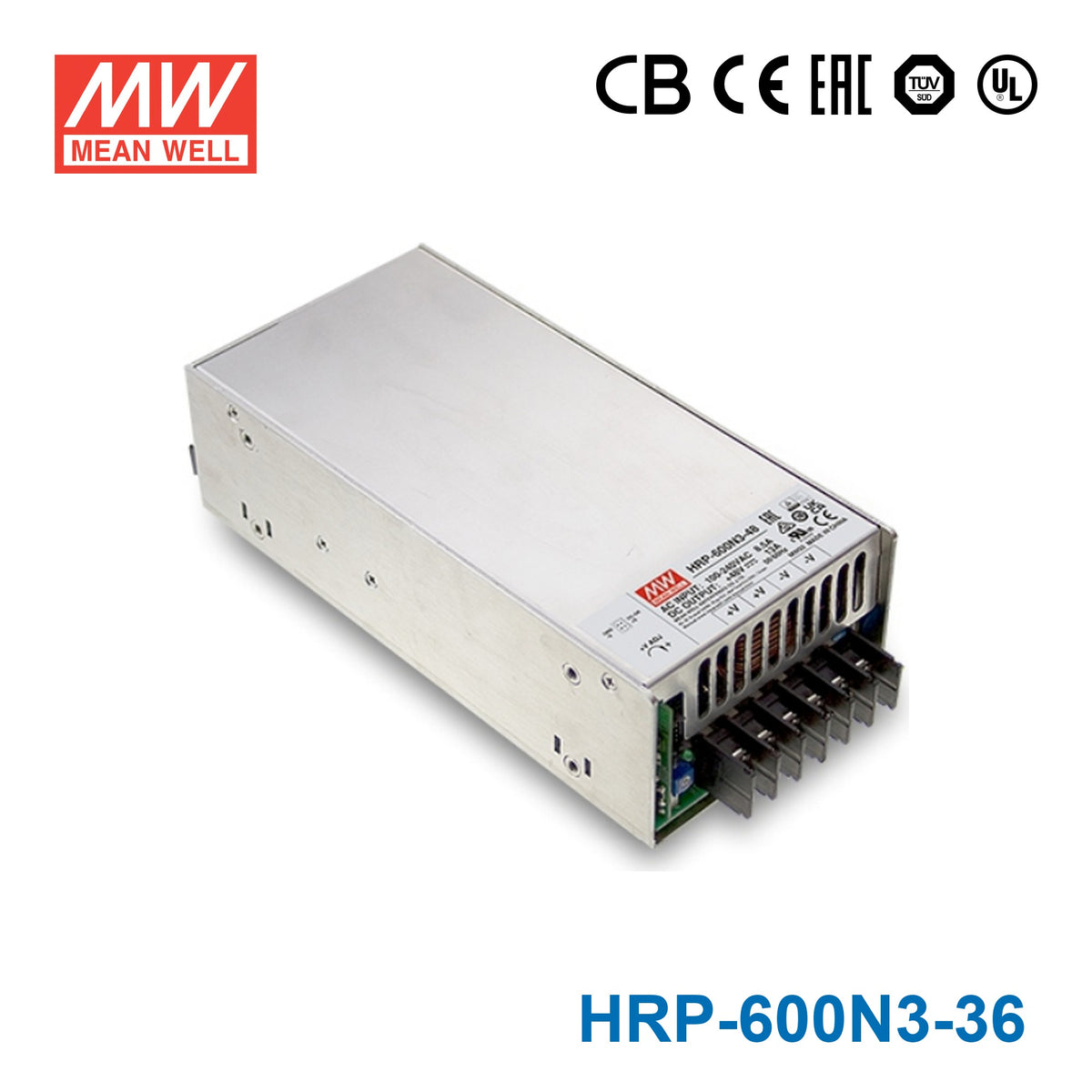

Mean Well HRP-600N3-36 Power Supply 630W 36V, 350% peak power model
built-in active PFC, 1U low profile, 300% peak power capacity
SKU:
HRP-600N3-36
$185.45 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-600N3-36 Power Supply 630W 36V, 350% peak power model
$185.45 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Withstand 300VAC surge input for 5 seconds |
| 300% peak power capability |
| Built-in constant current limiting circuit |
| Protection: Short circuit / Overload / Over Voltage / Over Temperature |
| Built-in cooling fan ON-OFF control |
| Built-in DC OK Signal |
| Buit-in remote sense function |
| Withstand 5G vibration |
| Operating altitude up to 5000 meters(Note.5) |
| Output voltage adjustable ±15%(Avg.) |
| 1U low profile 41mm |
| 5 years warranty |
General Specification
| AC input voltage range | 85 ~ 264VAC | 120 ~ 370VDC |
| AC inrush current (max.) | 35A/115VAC | 70A/230VAC |
| Overload protection Range | 105%~135% |
| Overload protection Type | Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover |
| Over voltage protection | 14.4 ~ 16.8V | 30 ~ 34.8V | 41.4 ~ 48.6V| 57.6 ~ 67.2V | |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40 ~ +70 (Refer to "Derating Curve") |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level |
| Dimension (LxWxH) | 218*105*61.5mm (L*W*H) |
| PACKING | 1.39Kg;8pcs/12.1Kg/1.58CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage36 Volt
-
Rated Current17.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.06 lb
