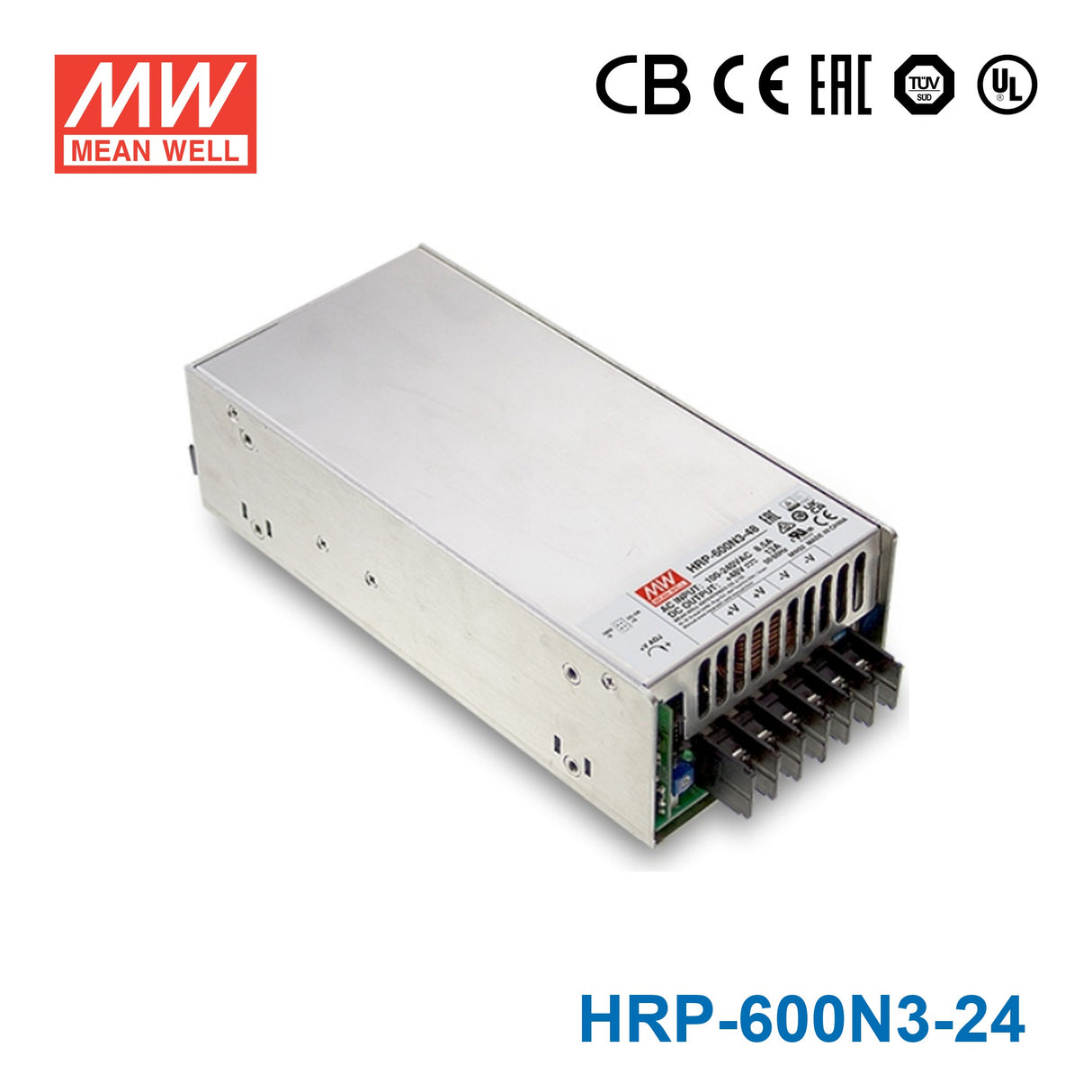

Mean Well HRP-600N3-24 Power Supply 648W 24V, 350% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-600N3-24 Power Supply 648W 24V, 350% peak power model
The HRP-600N3 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current27 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.06 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well HRP-600N3-24?
The HRP-600N3-24 is a 24V enclosed AC-DC power supply rated at 648W with 27A rated current. It accepts a universal 85 to 264VAC input range and also supports 120 to 370VDC input. The output voltage is adjustable by approximately ±15%.
What kinds of applications is the HRP-600N3-24 suited for?
This model is suited to industrial and high-reliability equipment that needs a regulated 24V DC supply with substantial output capacity. Its low-profile 1U form factor, DC OK signal, remote sense function, and high peak power capability make it relevant for demanding OEM and control-system applications. It is positioned as an enclosed industrial power supply rather than a basic consumer PSU.
Can this power supply operate in demanding environmental conditions?
Yes. The HRP-600N3-24 is specified for operation from -40°C to +70°C, with derating considerations at higher temperatures. It is also rated for operation at altitudes up to 5000 meters and can withstand 5G vibration, which supports use in tougher industrial environments.
What protection features are included on the HRP-600N3-24?
This model includes short circuit, overload, over voltage, and over temperature protection. The overload protection range is specified at 105% to 135%, and if output power exceeds 105% rated power for more than 5 seconds, the unit shuts down output voltage until power is reapplied. It also includes a built-in constant current limiting circuit.
How does the HRP-600N3-24 compare with a standard 24V industrial power supply?
Compared with a more basic 24V enclosed supply, the HRP-600N3-24 stands out with high peak power capability, 300VAC surge withstand for 5 seconds, a built-in DC OK signal, and remote sense support. It also offers a low-profile 41mm design and fan ON-OFF control. These features make it better suited to more demanding industrial applications than a standard fixed-output unit.
What certifications and compliance standards does this model meet?
The HRP-600N3-24 is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. Its EMC specifications include EN55022 Class B and EN61000 series requirements, including heavy industry level EN61000-6-2. That makes it relevant for buyers who need recognized industrial safety and EMC compliance.
What are the physical size, weight, and warranty for the HRP-600N3-24?
The unit measures 218 x 105 x 61.5 mm and weighs about 1.39 kg. It uses a low-profile enclosed form factor intended for space-conscious industrial equipment layouts. Mean Well specifies this model with a 5-year warranty.
