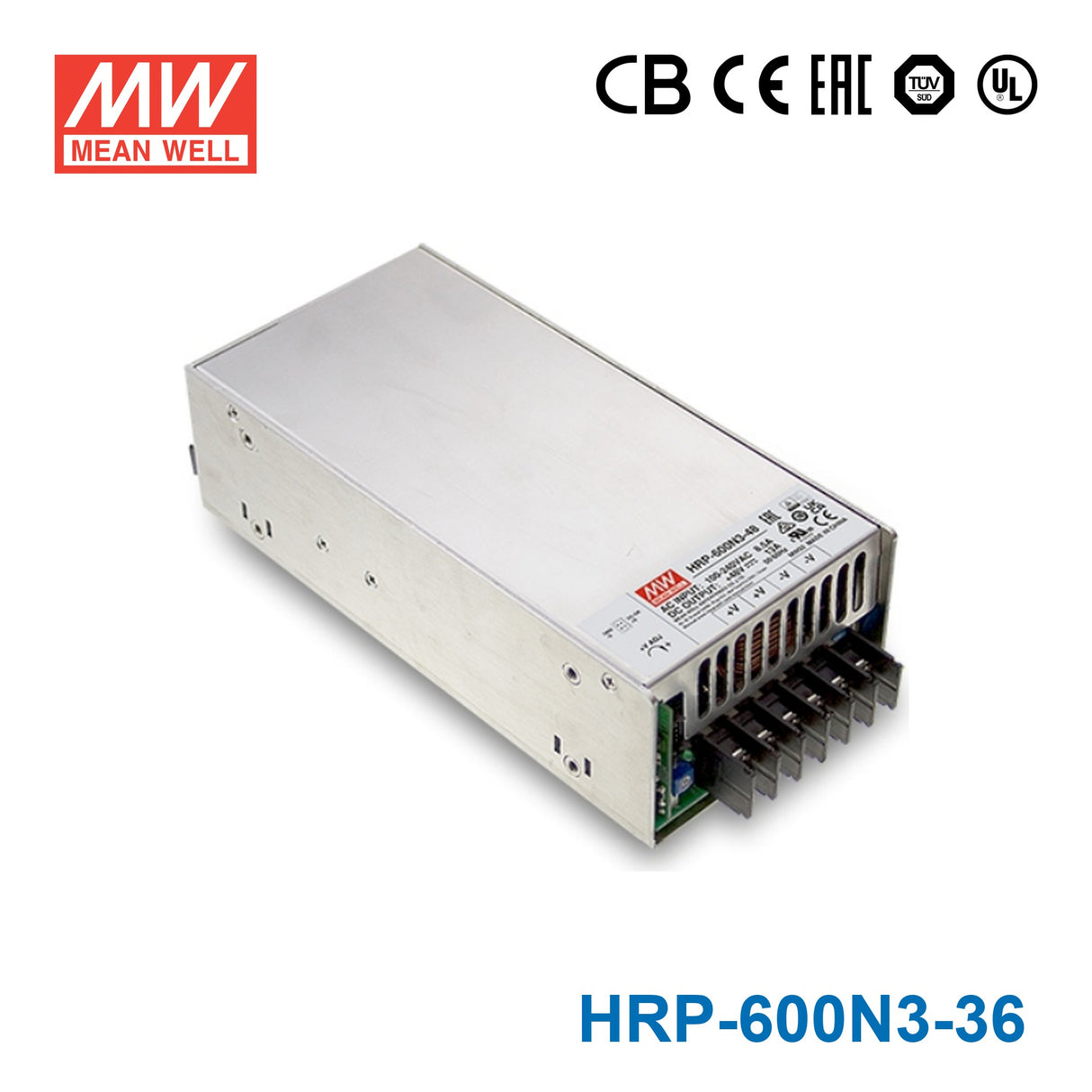

Mean Well HRP-600N3-36 Power Supply 630W 36V, 350% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-600N3-36 Power Supply 630W 36V, 350% peak power model
The HRP-600N3 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage36 Volt
-
Rated Current17.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.06 lb
::specification::
Frequently Asked Questions
What is the Mean Well HRP-600N3-36 designed for?
The HRP-600N3-36 is an enclosed AC-DC power supply built for industrial and high-reliability applications that need a regulated 36V DC output. It provides 600W rated power with a 17.5A rated current in a compact low-profile form factor. Its feature set is aimed at demanding equipment environments rather than light consumer use.
What are the main output specifications of the HRP-600N3-36?
This model delivers a nominal 36V DC output and is rated for 600W with 17.5A output current. The output voltage is adjustable by approximately ±15% on average. It also includes a built-in DC OK signal and remote sense function.
What input range does the HRP-600N3-36 support?
The HRP-600N3-36 accepts a universal AC input range of 85 to 264VAC, and it can also operate from 120 to 370VDC. It is designed to withstand a 300VAC surge input for 5 seconds. That broad input range makes it suitable for varied industrial power environments.
Is the HRP-600N3-36 suitable for harsh industrial environments?
Yes. This model is specified for operation from -40°C to +70°C and can be used at altitudes up to 5000 meters, subject to the manufacturer's derating guidance. It also withstands 5G vibration and is built to heavy industry EMC levels.
What protection features are included in the HRP-600N3-36?
The HRP-600N3-36 includes protection for short circuit, overload, over voltage, and over temperature. Its overload protection range is 105% to 135%, and if output power stays above 105% rated for more than 5 seconds, the output shuts down until power is reapplied. It also has a built-in constant current limiting circuit.
How does the HRP-600N3-36 compare with standard enclosed power supplies?
Compared with basic enclosed power supplies, this model adds features often needed in more demanding systems, including peak power capability, DC OK signal, remote sense, and fan ON-OFF control. It also offers a 1U low-profile 41mm design and approvals to multiple safety standards. These features make it better suited to industrial and high-reliability applications than entry-level alternatives.
What certifications and compliance standards does the HRP-600N3-36 meet?
This model is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. For EMC, it lists EN55022 Class B and EN61000 series compliance, including heavy industry level EN61000-6-2. These approvals are relevant for buyers who need documented industrial compliance coverage.
What are the physical size, weight, and warranty of the HRP-600N3-36?
The unit measures 218 x 105 x 61.5 mm and weighs 1.39 kg. It is designed as a low-profile enclosed supply for space-conscious equipment layouts. Mean Well backs this model with a 5-year warranty.
