Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HRP-600N3-48 Power Supply 624W 48V, 350% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours

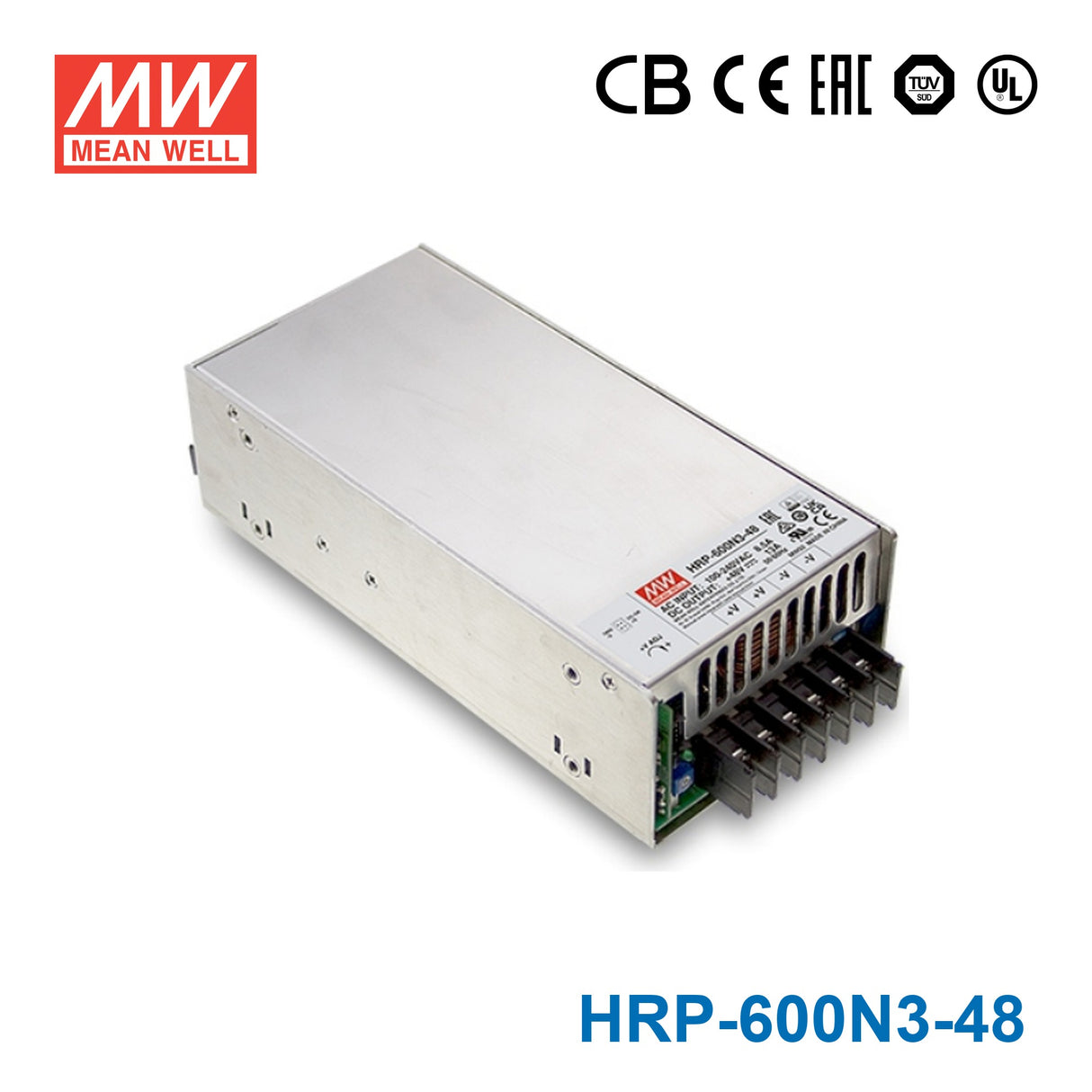

Mean Well HRP-600N3-48 Power Supply 624W 48V, 350% peak power model
The HRP-600N3 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage48 Volt
-
Rated Current13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.06 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well HRP-600N3-48?
The HRP-600N3-48 is a 48V enclosed AC-DC power supply rated at 624W. Its rated output current is 13A, making it suitable for industrial systems that need a stable 48V DC source.
What types of applications is the HRP-600N3-48 designed for?
This model is aimed at industrial and high-reliability applications that require a compact enclosed 48V power supply. Its low-profile 41mm design, DC OK signal, remote sense function, and peak power capability make it a good fit for demanding OEM and control-system use cases.
What input voltage range does the HRP-600N3-48 support?
The HRP-600N3-48 accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. It is also specified to withstand a 300VAC surge input for 5 seconds.
Can the output voltage on the HRP-600N3-48 be adjusted?
Yes. The output voltage is adjustable by approximately plus or minus 15 percent, which gives added flexibility when matching the supply to system requirements around its nominal 48V output.
Is the HRP-600N3-48 suitable for harsh industrial environments?
Yes. This model is rated for operation from -40°C to +70°C, withstands 5G vibration, and is specified for operating altitudes up to 5000 meters. It also meets heavy-industry EMC requirements under EN61000-6-2.
What protection features are included in the HRP-600N3-48?
The HRP-600N3-48 includes protection for short circuit, overload, over voltage, and over temperature. It also has a built-in constant current limiting circuit and uses shutdown with recovery by re-powering after sustained overload conditions beyond the rated threshold.
What certifications and warranty does the HRP-600N3-48 have?
This power supply is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 standards. Mean Well backs the HRP-600N3-48 with a 5-year warranty.
